Dell Inc. PowerEdge R770 ssj_ops@100% = 144,958
Test Sponsor: Dell Inc. SPEC License #: 6573 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 5, 2025
Hardware Availability: Mar-2025 Software Availability: Oct-2024 Publication: Mar 26, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,054
Calibration 2     145,408
Calibration 3     145,332
ssj_ops@calibrated=145,370
100% 99.7% 145,370 144,958
90% 90.4% 130,833 131,486
80% 79.9% 116,296 116,184
70% 69.6% 101,759 101,165
60% 59.9% 87,222 87,063
50% 50.7% 72,685 73,642
40% 40.6% 58,148 58,957
30% 29.8% 43,611 43,389
20% 19.9% 29,074 28,969
10% 10.1% 14,537 14,741
Active Idle   0 0

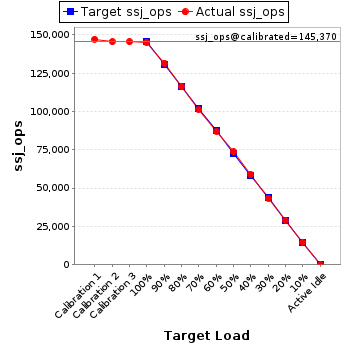

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R770
Form Factor: 2U
CPU Name: Intel Xeon 6787P 2.0 GHz (Intel Turbo Boost Technology up to 3.80 GHz)
CPU Characteristics: 86-Core, 2.00 GHz, 336MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 172 cores, 2 chips, 86 cores/chip
Hardware Threads: 344 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
Tertiary Cache: 336 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 1Rx4 PC5-6400; slots Slots A1-8, B1-B8 populated.
Power Supply Quantity and Rating (W): 1 x 1500
Power Supply Details: 1500W 60mm Titanium - mixed mode, Dell p/n GRD17
Disk Drive: 1 x Dell EC NVMe ISE 7450 RI M.2 80 480GB, Dell p/n 3H1F4
Disk Controller: BOSS controller card, Dell p/n CMFVP
# and type of Network Interface Cards (NICs) Installed: 1 x 1GbE BT 4P Broadcom OCP 3.0, Dell p/n M2PYY
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Standard
OS Version: Version 21H2(OS Build 20348.1251)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.13+10-LTS-268, mixed mode)
JVM Command-line Options: -server -Xms1300m -Xmx1300m -Xmn1100m -XX:+UseBiasedLocking -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=220
JVM Affinity: start /NODE [0,2,5,8,10,13,16,18,21,24,26,29] [1,3,4,6,7,9,11,12,14,15,17,19,20,22,23,25,27,28,30,31] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00][0x3,0xC,0x30,0xC0,0x300]
JVM Instances: 172
JVM Initial Heap (MB): 1300
JVM Maximum Heap (MB): 1300
JVM Address Bits: 64
Boot Firmware Version: 0.5.62
Management Firmware Version: 1.20.25.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 10,709,223 1,490
Payment 10,709,221
Order Status 1,070,923
Delivery 1,070,922
Stock Level 1,070,922
Customer Report 10,709,222
Calibration 2 New Order 10,577,443 1,490
Payment 10,577,445
Order Status 1,057,745
Delivery 1,057,744
Stock Level 1,057,743
Customer Report 10,577,448
Calibration 3 New Order 10,572,951 1,490
Payment 10,572,953
Order Status 1,057,294
Delivery 1,057,295
Stock Level 1,057,296
Customer Report 10,572,956
100% 99.7% New Order 10,543,985 1,490
Payment 10,543,987
Order Status 1,054,400
Delivery 1,054,398
Stock Level 1,054,398
Customer Report 10,543,986
90% 90.4% New Order 9,565,093 1,490
Payment 9,565,083
Order Status 956,508
Delivery 956,508
Stock Level 956,509
Customer Report 9,565,091
80% 79.9% New Order 8,450,975 1,490
Payment 8,450,973
Order Status 845,097
Delivery 845,098
Stock Level 845,098
Customer Report 8,450,978
70% 69.6% New Order 7,357,793 1,490
Payment 7,357,794
Order Status 735,778
Delivery 735,779
Stock Level 735,780
Customer Report 7,357,792
60% 59.9% New Order 6,334,303 1,490
Payment 6,334,304
Order Status 633,430
Delivery 633,430
Stock Level 633,429
Customer Report 6,334,306
50% 50.7% New Order 5,356,747 1,490
Payment 5,356,749
Order Status 535,675
Delivery 535,675
Stock Level 535,674
Customer Report 5,356,749
40% 40.6% New Order 4,289,245 1,490
Payment 4,289,241
Order Status 428,924
Delivery 428,924
Stock Level 428,925
Customer Report 4,289,252
30% 29.8% New Order 3,155,555 1,490
Payment 3,155,555
Order Status 315,556
Delivery 315,555
Stock Level 315,556
Customer Report 3,155,556
20% 19.9% New Order 2,106,948 1,490
Payment 2,106,950
Order Status 210,693
Delivery 210,696
Stock Level 210,696
Customer Report 2,106,951
10% 10.1% New Order 1,072,120 1,490
Payment 1,072,121
Order Status 107,213
Delivery 107,212
Stock Level 107,212
Customer Report 1,072,122
Active Idle New Order 0 1,490
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
