SPECpower_ssj2008

Dell Inc. PowerEdge R770			SPECpower_ssj2008 = 21,029 overall ssj_ops/watt
Test Sponsor:	Dell Inc.	SPEC License #:	6573	Test Method:	Single Node
Tested By:	Dell Inc.	Test Location:	Round Rock, TX, USA	Test Date:	Mar 11, 2025
Hardware Availability:	Mar-2025	Software Availability:	Oct-2024	Publication:	Mar 26, 2025
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Dell Inc.
Model:	PowerEdge R770
Form Factor:	2U
CPU Name:	Intel Xeon 6787P 2.0 GHz (Intel Turbo Boost Technology up to 3.80 GHz)
CPU Characteristics:	86-Core, 2.00 GHz, 336MB L3 Cache
CPU Frequency (MHz):	2000
CPU(s) Enabled:	172 cores, 2 chips, 86 cores/chip
Hardware Threads:	344 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
Tertiary Cache:	336 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16 GB
Memory Details:	16GB 1Rx8 PC5-6400; slots Slots A1-8, B1-B8 populated.
Power Supply Quantity and Rating (W):	1 x 1500
Power Supply Details:	1500W 60mm Titanium - mixed mode, Dell p/n GRD17
Disk Drive:	1 x Dell EC NVMe ISE 7450 RI M.2 80 480GB, Dell p/n 3H1F4
Disk Controller:	BOSS controller card, Dell p/n CMFVP
# and type of Network Interface Cards (NICs) Installed:	1 x 1GbE BT 4P Broadcom OCP 3.0, Dell p/n M2PYY
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2022 Standard
OS Version:	Version 21H2(OS Build 20348.1251)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.13+10-LTS-268, mixed mode)
JVM Command-line Options:	-server -Xms1300m -Xmx1300m -Xmn1100m -XX:+UseBiasedLocking -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:InlineSmallCode=1500 -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=220
JVM Affinity:	start /NODE [0-7] /AFFINITY [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000]
JVM Instances:	86
JVM Initial Heap (MB):	1300
JVM Maximum Heap (MB):	1300
JVM Address Bits:	64
Boot Firmware Version:	0.5.62
Management Firmware Version:	1.20.25.00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

See SUT Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 344 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop
JVM Settings:

Each JVM instance was affinitized to 4 threads.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.

powercfg /setacvalueindex scheme_current sub_processor perfboostmode 3
powercfg /qh scheme_current sub_processor perfboostmode
powercfg /setactive scheme_current
The system ROM used for this result contains Intel microcode version 0x1000380 for the Intel Xeon 6787P processor.

Software
Operating System (OS):	Microsoft Windows Server 2022 Datacenter
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 15.0.2+7 (build 15.0.2+7, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT310E
Serial Number:	T11733387
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TesCom
Calibration Label:	T11733387
Date of Calibration:	24-Jul-2025
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.11.1-462c978e-20240907
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	5.10.26.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	25 mm in front of SUT main airflow intake

None

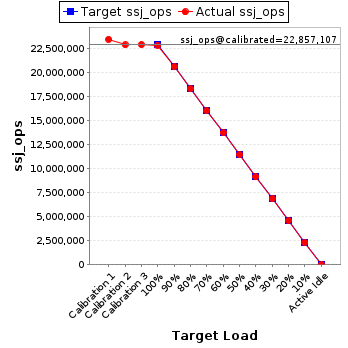

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	943	21.2
90%	896	21.2
80%	769	21.2
70%	674	21.2
60%	590	21.2
50%	514	21.2
40%	441	21.2
30%	382	21.2
20%	332	21.1
10%	278	21.1
Active Idle	157	21.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	21.1	255

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
