Lenovo Global Technology ThinkSystem SD535 V3 SPECpower_ssj2008 = 38,805 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 11, 2025
Hardware Availability: Jan-2025 Software Availability: Jun-2024 Publication: Mar 31, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 2,156 22.6
Calibration 2 2,153 22.8
Calibration 3 1,694 22.8
100% 1,557 22.8
90% 1,465 22.7
80% 1,319 22.7
70% 1,215 22.6
60% 1,111 22.6
50% 1,019 22.6
40% 911 22.4
30% 797 22.2
20% 677 22.1
10% 535 22.1
Active Idle 267 22.1

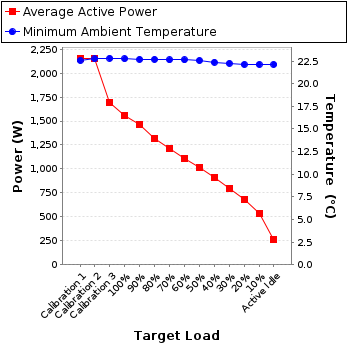

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3UD17023E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: CHINA CEPEREI LABORATORY CALIBRATION & TESTING CENTRE
Calibration Label: 1GA24011968-0002
Date of Calibration: 10-Oct-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: Connected to PSU 1 PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 9.79 10.0 0.999 2,156 0.2%
Calibration 2 220 300.0 9.78 10.0 0.999 2,153 0.2%
Calibration 3 220 300.0 7.69 10.0 0.999 1,694 0.2%
100% 220 300.0 7.07 10.0 0.999 1,557 0.2%
90% 220 300.0 6.65 10.0 0.999 1,465 0.2%
80% 220 300.0 5.99 10.0 0.999 1,319 0.2%
70% 220 300.0 5.52 10.0 0.999 1,215 0.2%
60% 220 300.0 5.04 10.0 0.999 1,111 0.3%
50% 220 300.0 4.63 10.0 0.999 1,019 0.3%
40% 220 300.0 4.14 5.0 0.999 911 0.2%
30% 220 300.0 3.62 5.0 0.998 797 0.2%
20% 220 300.0 3.08 5.0 0.997 677 0.2%
10% 220 300.0 2.44 5.0 0.995 535 0.3%
Active Idle 220 300.0 1.23 5.0 0.982 267 0.4%

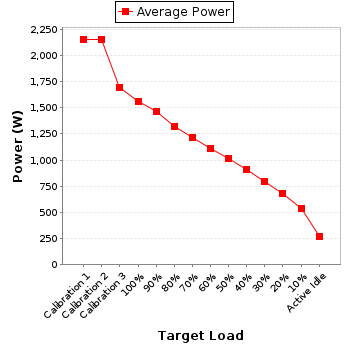

Power details for pwr1
