SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Quanta Computer Inc. D44N-1U | SPECpower_ssj2008 = 38,844 overall ssj_ops/watt | ||||
| Test Sponsor: | Quanta Computer Inc. | SPEC License #: | 9050 | Test Method: | Single Node |
| Tested By: | Quanta Computer Inc. | Test Location: | Taoyuan, TW, R.O.C | Test Date: | Jun 11, 2025 |
| Hardware Availability: | Sep-2024 | Software Availability: | Apr-2025 | Publication: | Jul 1, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

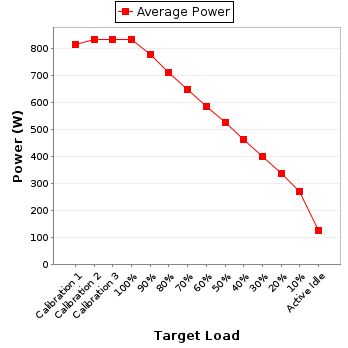

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 816 | 22.3 |
| Calibration 2 | 832 | 22.4 |
| Calibration 3 | 834 | 22.6 |
| 100% | 834 | 22.7 |
| 90% | 776 | 22.9 |
| 80% | 713 | 22.9 |
| 70% | 649 | 23.1 |
| 60% | 586 | 23.1 |
| 50% | 525 | 23.0 |
| 40% | 461 | 23.0 |
| 30% | 399 | 22.9 |
| 20% | 336 | 22.8 |
| 10% | 271 | 22.8 |
| Active Idle | 128 | 22.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | C2PM12064V |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | SGS |
| Calibration Label: | ECR2518430 |
| Date of Calibration: | 12-May-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/T |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 3.73 | 5.0 | 0.997 | 816 | 0.3% |
| Calibration 2 | 220 | 300.0 | 3.79 | 5.0 | 0.997 | 832 | 0.3% |
| Calibration 3 | 220 | 300.0 | 3.80 | 5.0 | 0.997 | 834 | 0.3% |
| 100% | 220 | 300.0 | 3.80 | 5.0 | 0.997 | 834 | 0.3% |
| 90% | 220 | 300.0 | 3.54 | 5.0 | 0.996 | 776 | 0.3% |
| 80% | 220 | 300.0 | 3.25 | 5.0 | 0.995 | 713 | 0.3% |
| 70% | 220 | 300.0 | 2.96 | 5.0 | 0.994 | 649 | 0.4% |
| 60% | 220 | 300.0 | 2.68 | 5.0 | 0.993 | 586 | 0.4% |
| 50% | 221 | 300.0 | 2.40 | 2.0 | 0.991 | 525 | 0.2% |
| 40% | 221 | 300.0 | 2.12 | 2.0 | 0.988 | 461 | 0.3% |
| 30% | 221 | 300.0 | 1.83 | 2.0 | 0.986 | 399 | 0.3% |
| 20% | 221 | 300.0 | 1.55 | 2.0 | 0.983 | 336 | 0.3% |
| 10% | 221 | 300.0 | 1.25 | 2.0 | 0.980 | 271 | 0.4% |
| Active Idle | 221 | 300.0 | 0.630 | 2.0 | 0.920 | 128 | 0.6% |
