SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Compal Electronics, Inc. SR230-2 | SPECpower_ssj2008 = 24,941 overall ssj_ops/watt | ||||
| Test Sponsor: | Compal Electronics, Inc. | SPEC License #: | 6857 | Test Method: | Single Node |
| Tested By: | Compal Electronics, Inc. | Test Location: | Neihu Dist, Taipei City, Taiwan (R.O.C.) | Test Date: | Jul 6, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Mar-2025 | Publication: | Jul 16, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

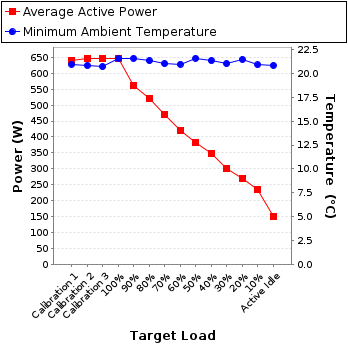

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 640 | 20.9 |
| Calibration 2 | 645 | 20.8 |
| Calibration 3 | 646 | 20.7 |
| 100% | 647 | 21.5 |
| 90% | 561 | 21.6 |
| 80% | 521 | 21.3 |
| 70% | 470 | 21.0 |
| 60% | 421 | 20.9 |
| 50% | 384 | 21.6 |
| 40% | 349 | 21.3 |
| 30% | 301 | 21.0 |
| 20% | 269 | 21.4 |
| 10% | 237 | 20.9 |
| Active Idle | 151 | 20.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310E |
| Serial Number: | C3UE28006E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory,Taiwan) |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-250527T022 |
| Date of Calibration: | 28-May-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1. |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Cleware |
| Model: | USB-Temp |
| Driver Version: | 5.3.4.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | The front top of SUT main intake |

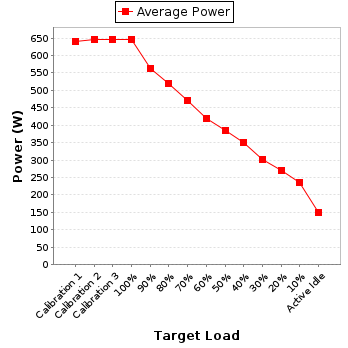

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 230 | 300.0 | 2.80 | 10.0 | 0.991 | 640 | 0.4% |
| Calibration 2 | 231 | 300.0 | 2.82 | 10.0 | 0.992 | 645 | 0.4% |
| Calibration 3 | 231 | 300.0 | 2.82 | 10.0 | 0.992 | 646 | 0.4% |
| 100% | 231 | 300.0 | 2.82 | 10.0 | 0.992 | 647 | 0.4% |
| 90% | 231 | 300.0 | 2.46 | 10.0 | 0.988 | 561 | 0.4% |
| 80% | 231 | 300.0 | 2.28 | 10.0 | 0.988 | 521 | 0.4% |
| 70% | 232 | 300.0 | 2.05 | 5.0 | 0.988 | 470 | 0.3% |
| 60% | 232 | 300.0 | 1.84 | 5.0 | 0.985 | 421 | 0.3% |
| 50% | 233 | 300.0 | 1.68 | 5.0 | 0.983 | 384 | 0.3% |
| 40% | 233 | 300.0 | 1.53 | 5.0 | 0.980 | 349 | 0.4% |
| 30% | 232 | 300.0 | 1.33 | 5.0 | 0.974 | 301 | 0.4% |
| 20% | 231 | 300.0 | 1.20 | 5.0 | 0.967 | 269 | 0.4% |
| 10% | 231 | 300.0 | 1.07 | 2.0 | 0.960 | 237 | 0.3% |
| Active Idle | 232 | 300.0 | 0.710 | 2.0 | 0.916 | 151 | 0.4% |
