SPEC SFS®2014_swbuild Result

Copyright © 2016-2018 Standard Performance Evaluation Corporation

E8 Storage SPEC SFS2014_swbuild = 1200 Builds
E8 Storage X24 with IBM Spectrum Scale 5.0.1.1 Overall Response Time = 0.57 msec


Performance

Business
Metric
(Builds)
Average
Latency
(msec)
Builds
Ops/Sec
Builds
MB/Sec
1200.05760002831
2400.0581200041664
3600.0701800072497
4800.0862400093328
6000.1733000124160
7200.3773600144993
8400.6444200165824
9601.0164798876654
10801.4675397677486
12002.3995998818318

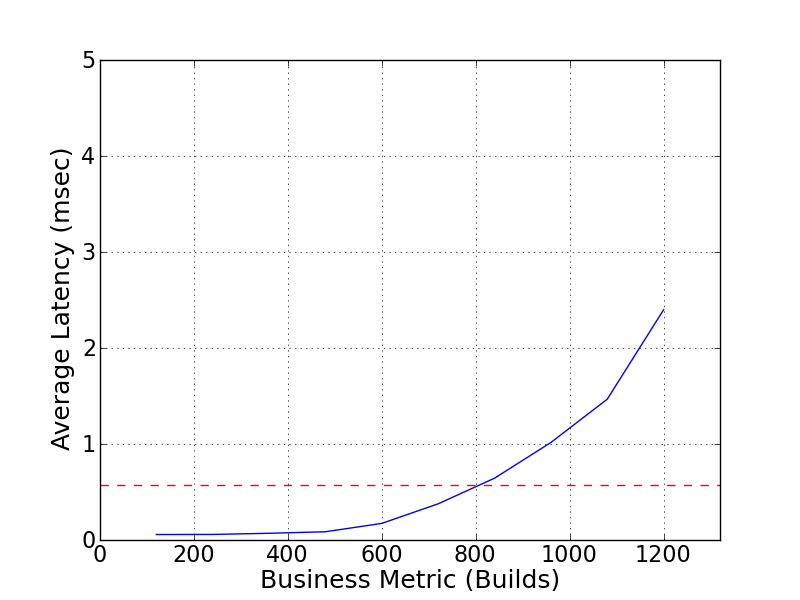

Performance Graph


Product and Test Information

E8 Storage X24 with IBM Spectrum Scale 5.0.1.1
Tested byE8 Storage
Hardware AvailableApril 2018
Software AvailableJune 2018
Date TestedJune 2018
License Number4847
Licensee LocationsSanta Clara, CA, USA

E8 Storage is a pioneer in shared accelerated storage for data-intensive, high-performance applications that drive business revenue. E8 Storage's affordable, reliable and scalable solution is ideally suited for the most demanding low-latency workloads, including AI, genomics, real-time analytics, financial and trading applications, and large-scale file systems. Driven by the company's patented architecture, E8 Storage's high-performance shared NVMe storage solution delivers 10 times the performance at half the cost of existing storage products. With E8 Storage, enterprise data centers can enjoy unprecedented storage performance density and scale, delivering NVMe performance without compromising on reliability and availability.

IBM Spectrum Scale helps solve the challenge of explosive growth of unstructured data against a flat IT budget. Spectrum Scale provides unified file and object software-defined storage for high performance, large scale workloads on-premises or in the cloud. Spectrum Scale includes the protocols, services and performance required by many industries, Technical Computing, Big Data, HDFS and business critical content repositories. IBM Spectrum Scale provides world-class storage management with extreme scalability, flash accelerated performance, and automatic policy-based storage tiering from flash through disk to tape, reducing storage costs up to 90% while improving security and management efficiency in cloud, big data & analytics environments.

Solution Under Test Bill of Materials

Item NoQtyTypeVendorModel/NameDescription
115Spectrum Scale ClientIBMX3650-M4Spectrum Scale 5.0.1.1 client nodes
215Spectrum Scale ClientGigabyteMH61-HD4Spectrum Scale 5.0.1.1 client nodes
330Network Interface CardMellanoxConnectX-5 VPI (MCX556A-ECAT)Dual port 100GbE Adapters used in each Spectrum Scale Server
41Storage ApplianceE8 StorageE8-X24Dual controller storage appliance with 24 Intel Optane D4800X 750GB NVMe SSDs, 2 x Intel Xeon 2.0GHz 14-core CPU and 128GB RAM per controller. 2 x Mellanox ConnectX-4 EN network interface cards are installed per controller
51SwitchMellanoxMSN2700-CS2F32-port 100GbE switch
61SwitchJuniperEX4200-48T Series 8PoE48-port 1GbE switch

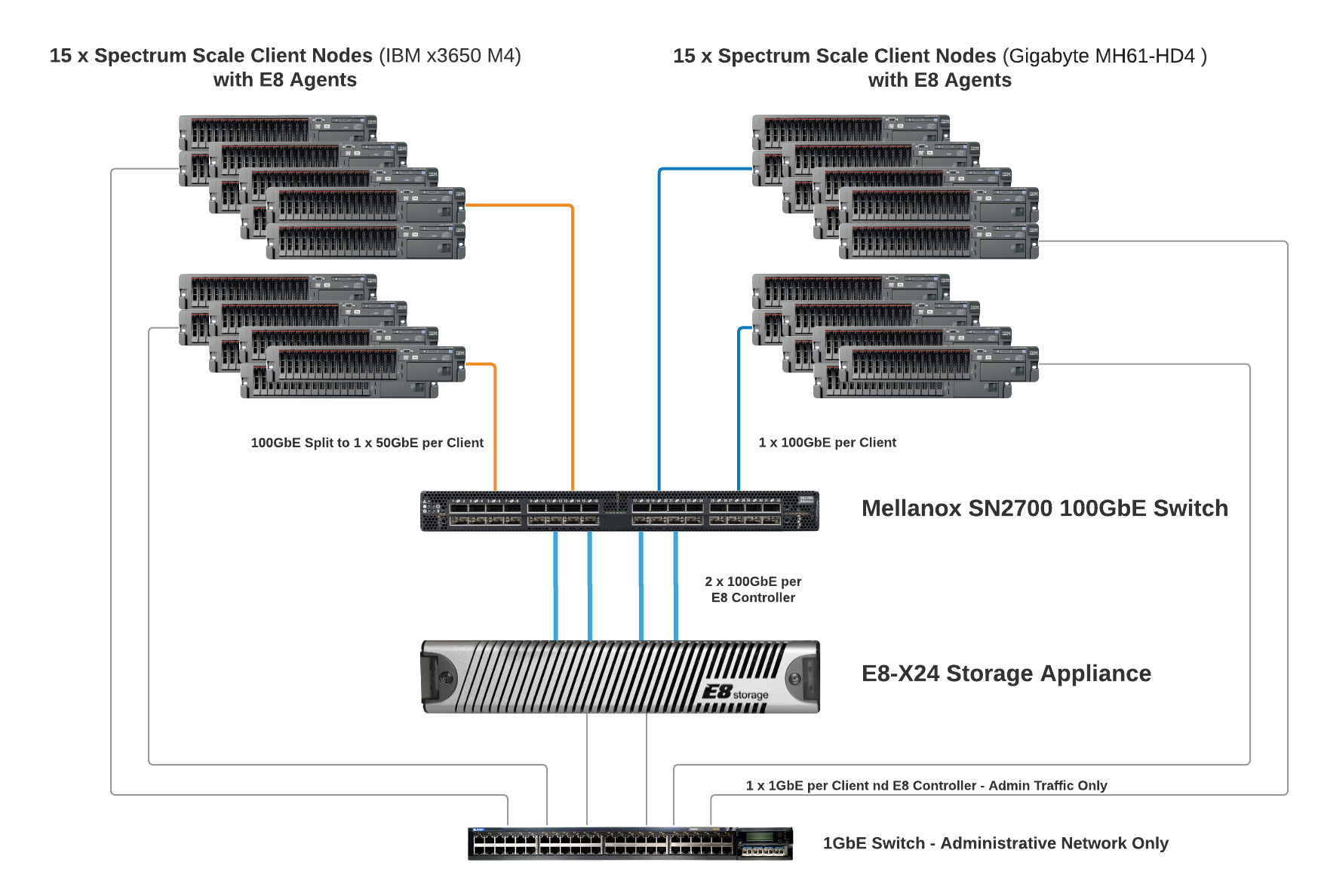

Configuration Diagrams

  1. E8 Storage X24 with IBM Spectrum Scale

Component Software

Item NoComponentTypeName and VersionDescription
1Client NodesSpectrum Scale File System5.0.1.1The Spectrum Scale File System is a distributed file system that runs on all client nodes to form a cluster. The cluster allows for the creation and management of single namespace file systems.
2Client NodesOperating SystemRHEL 7.5The operating system on the client nodes was 64-bit Red Hat Enterprise Linux version 7.5
3Client NodesE8 Storage Agent2.1.2The E8 Storage Agent is a client driver which manages communication and data transfer between the client and storage appliance
4Storage ApplianceE8 Storage Software2.1.2E8 Storage software provides centralized management and high availability functionality for the E8 Storage solution
5Storage ApplianceOperating SystemRHEL 7.4The operating system on the storage appliance was 64-bit Red Hat Enterprise Linux version 7.4.

Hardware Configuration and Tuning - Physical

Spectrum Scale Client Nodes
Parameter NameValueDescription
numaMemoryInterleaveyesEnables memory interleaving on NUMA based systems.
verbsRdmaenableEnables Ethernet RDMA transfers between Spectrum Scale client nodes and E8 Storage controllers
verbsRdmaSendyesEnables the use of Ethernet RDMA for most Spectrum Scale daemon-to-daemon communication.
verbsPortsmlx5_1/1/1Ethernet device names and port numbers.
txqueuelen10000Defines the transmission queue length for the Mellanox adapter

Hardware Configuration and Tuning Notes

The Spectrum Scale configuration parameter was set using the mmchconfig command on one of the nodes in the cluster. The verbs settings in the table above allow for efficient use of the RoCE infrastructure. The settings determine when data are transferred over IP and when they are transferred using the verbs protocol.

Software Configuration and Tuning - Physical

Spectrum Scale Client Nodes
Parameter NameValueDescription
maxStatCache0Specifies the number of inodes to keep in the stat cache.
workerThreads256Controls the maximum number of concurrent file operations at any one instant, as well as the degree of concurrency for flushing dirty data and metadata in the background and for prefetching data and metadata.
maxMBpS16kSpecifies an estimate of how many megabytes of data can be transferred per second into or out of a single node.
pagepool6gSpecifies the size of the cache on each node.
maxFilesToCache10mSpecifies the number of inodes to cache for recently used files that have been closed.
ignorePrefetchLUNCountyesSpecifies that only maxMBpS and not the number of LUNs should be used to dynamically allocate prefetch threads.
prefetchAggressiveness1Defines how aggressively to prefetch data. 1 means prefetch on 2nd access if sequential.
prefetchPct5Specifies what percent of the pagepool (cache) can be used for prefetching.
syncInterval30Specifies the interval (in seconds) in which data that has not been explicitly committed by the client is synced systemwide.
maxActiveIallocSegs8Determines how many inode allocation segments a client is allowed to select in parallel.
openFileTimeout86400Determines the max amount of seconds inode information is allowed to stay in cache after the last file open.
E8 Storage Agent
Parameter NameValueDescription
e8block threads1Specifies the number of threads used by the e8block process on the host servers

Software Configuration and Tuning Notes

The configuration parameters for the Spectrum Scale file system were set using the mmchconfig command on one of the nodes in the cluster. The nodes used mostly default tuning parameters. A discussion of Spectrum Scale tuning can be found in the official documentation for the mmchconfig command and on the IBM developerWorks wiki at https://www.ibm.com/developerworks/community/wikis/home?lang=en#!/wiki/fa32927c-e904-49cc-a4cc-870bcc8e307c/page/Tuning%20Parameters (for additional information on tuning parameters see http://files.gpfsug.org/presentations/2014/UG10_GPFS_Performance_Session_v10.pdf).

The E8 Storage controller used default parameters for all volumes.

Service SLA Notes

There were no opaque services in use

Storage and Filesystems

DescriptionData ProtectionStable StorageQtyUsable GiB
24 x 750GB NVMe SSDs in the E8-X24RAID-6Yes114.6 TiB
2 x 300GB 10K SAS HDD internal drives per Spectrum Scale client node (15 IBM servers) used to store the OSRAID-1No304.4 TiB
1 x 240GB SATA SSD internal drive per Spectrum Scale client node (15 Gigabyte servers) used to store the OSNANo153.5 TiB
Total22.5 TiB
Number of Filesystems1
Total Capacity14TB
Filesystem TypeSpectrum Scale File System

Filesystem Creation Notes

A single Spectrum Scale file system was created with a 1 MiB block size for data and metadata, and 4 KiB inode size. The 14TB file system has 1 mixed data and metadata volume (aka pool). Each client node mounted the file system.

The nodes each had an ext4 file system that hosted the operating system.

Storage and Filesystem Notes

The E8 Storage appliance has 24 750GB Intel Optane drives configured as a 22+2 RAID group for data protection, with a 16+2 stripe size. The mixed data / metadata volume was provisioned from this single RAID group, with the volume spanning all drives in the RAID group. All client nodes had shared read / write access to the single volume.

The cluster used a single-tier architecture. The Spectrum Scale client nodes performed both file and block level operations. Each node had access to shared volumes, so any file operation on a node was translated to a block operation and serviced on the same node.

Transport Configuration - Physical

Item NoTransport TypeNumber of Ports UsedNotes
11 GbE admin network32Each Spectrum Scale node and E8 Storage controller connects to a 1 GbE administration network with MTU=1500.
2100 GbE cluster network2715 client nodes have a single port connected to the switch via a 50GbE split cable (8 switch ports), 15 client nodes have 1 x 100GbE port connected to the switch (15 switch ports), and each E8 Storage controller has 4 100GbE ports connected to the switch (4 ports). It is a shared 100GbE cluster network, set to MTU=4200. The ring buffers (rx and tx) were set to 8192 on the network adapters

Transport Configuration Notes

The 1GbE network was used for administrative purposes and for Spectrum Scale inter-node communication. All benchmark traffic flowed through the Mellanox SN2700 100Gb Ethernet switch. 15 client nodes had a single active 50Gb Ethernet port which was connected to the switch with a split cable (2 50GbE clients per 100GbE switch port), with the remaining 15 clients direct connect at 100Gb Ethernet to the switch.

Switches - Physical

Item NoSwitch NameSwitch TypeTotal Port CountUsed Port CountNotes
1Mellanox SN2700100Gb Ethernet3227The default configuration was used on the switch
2Juniper EX4200 Series 8PoE1Gb Ethernet4832Administrative network only. The default configuration was used on the switch.

Processing Elements - Physical

Item NoQtyTypeLocationDescriptionProcessing Function
130CPUSpectrum Scale client nodes (IBM)Intel(R) Xeon(R) CPU E5-2630 v2 2.60GHz 6-coreSpectrum Scale client, E8 Agent, load generator, device drivers
230CPUSpectrum Scale client nodes (Gigabyte)Intel(R) Xeon(R) Gold 6142 CPU 2.60GHz 16-coreSpectrum Scale client, E8 Agent, load generator, device drivers
34CPUE8-X24 controllerIntel(R) Xeon(R) CPU E5-2660 v4 2.00GHz 14-core E8 Storage server, E8 Storage RAID, device drivers

Processing Element Notes

Each of the Spectrum Scale client nodes had 2 physical processors. On 15 clients, each processor had 6 physical cores with one thread per core by default. On the other 15 clients, each processor had 16 physical cores with one thread per core by default. The client nodes were running the following kernel, which contains some but not all of the Spectre/Meltdown patches, and no other patches were applied: 3.10.0-862.el7.x86_64

The E8-X24 is a dual controller appliance, each controller has 2 physical processors. Each processor had 14 cores with one thread per core. All available Spectre/Meltdown patches have been applied to the controller CPUs. (more info here: https://access.redhat.com/security/vulnerabilities/speculativeexecution)

Memory - Physical

DescriptionSize in GiBNumber of InstancesNonvolatileTotal GiB
Spectrum Scale client node system memory12830V3840
E8 Storage controller system memory1616V256
Grand Total Memory Gibibytes4096

Memory Notes

In the client nodes, Spectrum Scale reserves a portion of the physical memory (per the pagepool setting above) for file data and metadata caching. Some additional memory is dynamically allocated for buffers used for node to node communication and up to 10 million inode stat informations per node.

In the E8 Storage controller, a portion of the physical memory is reserved for block write data and system metadata caching.

Stable Storage

The E8 Storage controller uses a portion of internal memory to temporarily cache write data (as well as store modified data) before being written to the SSDs. Writes are acknowledged as successful once they are stored in the controller write cache, and a redundant copy is kept by the E8 Agent on the host. In the event of a controller failure, the hosts will replay the write cache for the surviving controller. In the event of a power failure, each controller has backup battery power which is combined with power-fail protection on the SSDs to ensure data is committed to SSDs prior to shutdown.

Solution Under Test Configuration Notes

The solution under test was a Spectrum Scale cluster optimized for small file, metadata intensive environments. The Spectrum Scale nodes were also the load generators for the benchmark. The benchmark was executed from one of the nodes.

Other Solution Notes

None

Dataflow

The 30 Spectrum Scale nodes were the load generators for the benchmark. Each load generator had access to the single namespace Spectrum Scale file system. The benchmark accessed a single mount point on each load generator. In turn each of mount points corresponded to a single shared base directory in the file system. The nodes process the file operations, and the data requests to and from the backend storage were serviced locally on each node by the E8 Client Agent.

Other Notes

IBM and IBM Spectrum Scale are trademarks of International Business Machines Corp., registered in many jurisdictions worldwide.

Intel and Xeon are trademarks of the Intel Corporation in the U.S. and/or other countries.

Mellanox is a registered trademark of Mellanox Ltd.

Other Report Notes

None
