SPECsfs97.v2 Result

Sun Microsystems Inc. :Sun Enterprise 6500
SPECsfs97.v2 =28265 Ops/Sec (Overall Response Time = 3.87 msec)

Performance

Throughput
(ops/sec)		 Response
(msec)
26352.7
52352.9
79383.5
105983.7
132073.7
158953.9
184904.1
211344.4
238184.9
264315.7
275306.5
282659.4

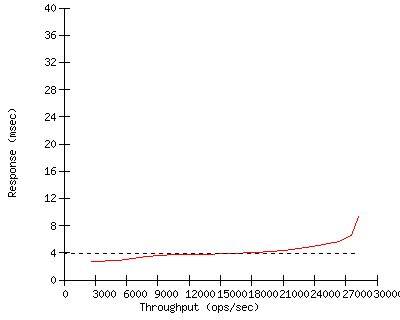

 Performance Graph

Configuration

Server Configuration and Availability
Vendor Sun Microsystems Inc.
Hardware Available May 1999
Software AvailableOct 1998
Date TestedMar 1999
SFS License Number6
Licensee LocationsPalo Alto, CA

CPU, Memory and Power
Model Name Sun Enterprise 6500
Processor 400 MHz UltraSPARC II
# of Processors 18
Primary Cache 16KBI+16KBD on chip
Secondary Cache 8MB(I+D) off chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 18 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionSolaris7_64bit
Other Software N/A
File System UFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 699
Fileset Size 271.3 GB
Network Subsystem
Network Type 1000Mbit Sun GigabitEthernet
Network Controller Desc. Sun GigabitEthernet SBus adaptor 2.0
Number Networks 3 (N1-N3)
Number Network Controllers3
Protocol Type UDP

Switch Type 3 Extremenetworks Summit2 switch
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 7
Number of Disks 402
Number of Filesystems 396 (F1-F396)
File System Creation Opsdefault
File System Config default

Disk Controller On-board SCSI-2
# of Controller Type 1
Number of Disks 6
Disk Type 4GB 7200rpm
File Systems on Disks OS, swap
Special Config Notes

Disk Controller FC-AL SBus Adapter (FC100/S)/GBIC
# of Controller Type 6 (i=0,1,2,3,4,5)
Number of Disks 66/66/66/66/66/66
Disk Type 9GB 10000rpm FC-AL
File Systems on Disks F[(i*3+j)*22+1] - F[(i*3+j)*22+22], j=0,1,2
Special Config Notes Sun StorEdge A5200 each w/ 22 FC-AL drives

Load Generator (LG) Configuration
Number of Load Generators 33
Number of Processes per LG12
Biod Max Read Setting 5
Biod Max Write Setting 5

LG Type LG1
LG Model Ultra1-170
Number and Type Processors1 167MHz UltraSPARC
Memory Size 256MB
Operating System Solaris7
Compiler SC4.2
Compiler Options N/A
Network Type SunSwift 100baseT f/w SCSI SBus Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/3/4LG1N1F1,F34,..,F364/F2,F35,..,F365/F3,F36,..,F366/F4,F37,..,F367N/A
5/6/7/8LG1N1F5,F38,..,F368/F6,F39,..,F369/F7,F40,..,F370/F8,F41,..,F371N/A
9/10/11LG1N1F9,F42,..,F372/F10,F43,..,F373/F11,F44,..,F374N/A
12/13/14/15LG1N2F12,F45,..,F375/F13,F46,..,F376/F14,F47,..,F377/F15,F48,..,F378N/A
16/17/18/19LG1N2F16,F49,..,F379/F17,F50,..,F380/F18,F51,..,F381/F19,F52,..,F382N/A
20/21/22LG1N2F20,F53,..,F383/F21,F54,..,F384/F22,F55,..,F385N/A
23/24/25/26LG1N3F23,F56,..,F386/F24,F57,..,F387/F25,F58,..,F388/F26,F59,..,F389N/A
27/28/29/30LG1N3F27,F60,..,F390/F28,F61,..,F391/F29,F62,..,F392/F30,F63,..,F393N/A
31/32/33LG1N3F31,F64,..,F394/F32,F65,..,F395/F33,F66,..,F396N/A

Other Notes

Fri May 21 10:23:01 1999

First published at SPEC.org on 18-May-1999
