SPECsfs97_R1.v3 Result

Network Appliance, Inc. :F880 (TCP, 50x36GB FCAL, GbE)
SPECsfs97_R1.v3 =16685 Ops/Sec (Overall Response Time = 1.66 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
16890.9
33581.0
50481.1
67711.3
84961.5
102061.8
119162.0
136112.4
153182.9
166854.0

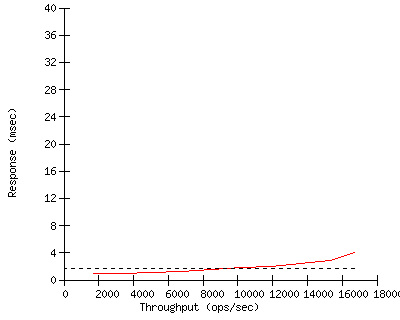

Performance Graph


Configuration

Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available July 2001
Software AvailableJuly 2001
Date TestedSeptember 2001
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name F880 (TCP, 50x36GB FCAL, GbE)
Processor 866-MHz Intel Pentium III Coppermine
# of Processors 2 cores, 2 chips, 1 core/chip
Primary Cache 16 KB I + 16 KB D
Secondary Cache 256 KB on-die
Other Cache N/A
UPS none
Other Hardware none
Memory Size 3072 MB
NVRAM Size 128 MB
NVRAM Type DIMM on PCI card
NVRAM Description15-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 6.1.1
Other Software none
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 161.4 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. X1025C PCI adapter card
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type Extreme Summit4 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 50
Number of Filesystems 1
File System Creation Opsdefault
File System Config 6 RAID-groups of 8 disks each

Disk Controller X2044A FC-AL adapter card (256 KB RAM standard)
# of Controller Type 2
Number of Disks 25/25
Disk Type X234A 36GB FC-AL
File Systems on Disks F1/F1
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 14
Number of Processes per LG4
Biod Max Read Setting 8
Biod Max Write Setting 2

LG Type LG1
LG Model Intel ISP1100 Internet Server Platform
Number and Type Processors1x700-MHz Pentium III
Memory Size 512 MB
Operating System Linux 2.2.18 (Red Hat 6.2)
Compiler gcc version egcs-2.91.66
Compiler Options -static -O -DNO_T_TYPES -DUSE_INTTYPES
Network Type integrated Intel Pro/100+ 100BASE-T

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../14LG1N1F1N/A


Other Notes


Generated on Thu Apr 14 14:49:58 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 26-Sep-2001
