SPECsfs97_R1.v3 Result

Network Appliance, Inc. :FAS960
SPECsfs97_R1.v3 =25135 Ops/Sec (Overall Response Time = 0.99 msec)

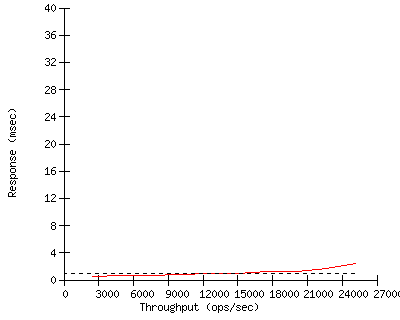

Performance Graph


Server Configuration and Availability
Vendor Network Appliance, Inc.
Hardware Available August 2002
Software AvailableAugust 2002
Date TestedSeptember 2002
SFS License Number33
Licensee LocationsSunnyvale, CA

CPU, Memory and Power
Model Name FAS960
Processor 2.2-GHz Intel Xeon
# of Processors 2 cores, 2 chips, 1 core/chip
Primary Cache 12 K uops I + 8 KB D
Secondary Cache 512 KB on-die
Other Cache N/A
UPS none
Other Hardware none
Memory Size 6144 MB
NVRAM Size 256 MB
NVRAM Type DIMM on PCI card
NVRAM Descriptionminimum 7-day battery-backed shelf-life

Server Software
OS Name and VersionData ONTAP 6.3
Other Software none
File System WAFL
NFS version 3

Server Tuning
Buffer Cache Size default
# NFS Processes N/A
Fileset Size 238.3 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. X1025D PCI adapter card
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type Extreme BlackDiamond 6808 (N1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 82
Number of Filesystems 1
File System Creation Opsdefault
File System Config 10 RAID-groups of 8 disks each

Disk Controller X2050A FC-AL adapter card (256 KB RAM standard)
# of Controller Type 2
Number of Disks 41/41
Disk Type X235A 72GB FC-AL
File Systems on Disks F1/F1
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 28
Number of Processes per LG2
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Supermicro SuperServer 6010H
Number and Type Processors2 x 1.0-GHz Pentium III
Memory Size 1024 MB
Operating System SunOS 5.8 Generic_108529-11 i86pc i386
Compiler cc, used SFS97_R1 Precompiled Binaries
Compiler Options N/A
Network Type Intel Pro/1000 T Server Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes

Other Notes

Generated on Thu Apr 14 14:50:00 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 01-Oct-2002
