SPECsfs97_R1.v2 Result

IBM Corporation :IBM eServer pSeries 630 Model 6C4 (TCP)
SPECsfs97_R1.v2 =45063 Ops/Sec (Overall Response Time = 1.85 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
44850.5
89670.7
135300.9
180391.1
225921.4
271061.8
316822.2
362432.8
409904.5
450635.6

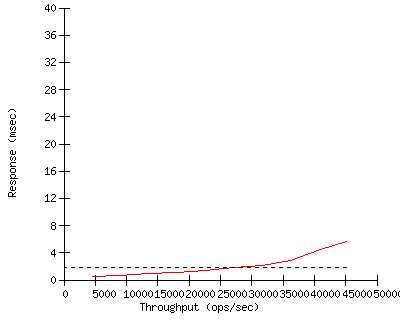

Performance Graph


Configuration

Server Configuration and Availability
Vendor IBM Corporation
Hardware Available February 2003
Software AvailableMay 2003
Date TestedJanuary 2003
SFS License Number11
Licensee LocationsAustin, Texas

CPU, Memory and Power
Model Name IBM eServer pSeries 630 Model 6C4 (TCP)
Processor 1.45GHz POWER4+
# of Processors 4
Primary Cache 64KBI+32KBD on chip per CPU
Secondary Cache 1536KB shared, unified on chip per SCM
Other Cache 8MB unified off chip per SCM, 2 SCMs in SUT
UPS N/A
Other Hardware N/A
Memory Size 24 GB
NVRAM Size 4 GB (4 x 1GB)
NVRAM Type 1GB battery-backed DRAM per controller
NVRAM Description5-day battery; cache bypass on battery failure

Server Software
OS Name and VersionAIX 5L V5.2 (64-bit)
Other Software N/A
File System JFS and Enhanced JFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 1
Fileset Size 430.3 GB

Network Subsystem
Network Type Jumbo Frame Gigabit
Network Controller Desc. IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter
Number Networks 2 (N1-N2)
Number Network Controllers2
Protocol Type TCP

Switch Type N/A
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 5
Number of Disks 141
Number of Filesystems 28 (F1-F28)
File System Creation Opsdefault
File System Config See Other Notes

Disk Controller Wide/Ultra-3 SCSI I/O Controller
# of Controller Type 1
Number of Disks 1
Disk Type 18.2GB 10Krpm 16-bit SCSI
File Systems on Disks OS, page space
Special Config Notes N/A

Disk Controller IBM Fiber Channel Adapter (2Gbps)
# of Controller Type 4
Number of Disks 140
Disk Type 18.2GB 15Krpm 2Gb FC
File Systems on Disks F1-F7,F8-F14,F15-F21,F22-F28
Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators 2
Number of Processes per LG112
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model IBM eServer pSeries 620 Model 6F1
Number and Type Processors4 x 750MHz RS64 IV
Memory Size 8 GB
Operating System AIX 5L V5.2
Compiler N/A, SFS97_R1 pre-compiled binaries
Compiler Options N/A
Network Type IBM 10/100/1000 Base-T Ethernet PCI Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1,F15,F8,F22,F2,F16,F9,F23,...,F7,F21,F14,F28,F1,F15,...,F14,F28,F1,F15,...,F14,F28,F1,F15,F8,F22,...,F14,F28N/A
2LG1N2F1,F15,F8,F22,F2,F16,F9,F23,...,F7,F21,F14,F28,F1,F15,...,F14,F28,F1,F15,...,F14,F28,F1,F15,F8,F22,...,F14,F28N/A


Other Notes
