SPECsfs97_R1.v3 Result

Hewlett Packard :HP AlphaServer GS1280 Model 4 7/1150
SPECsfs97_R1.v3 =40579 Ops/Sec (Overall Response Time = 1.39 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
34470.6
70100.7
106170.7
142600.8
178690.8
214410.9
249841.0
285411.1
319941.3
356151.7
393535.3
4057914.2

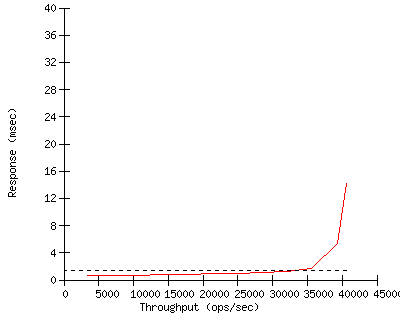

Performance Graph


Configuration

Server Configuration and Availability
Vendor Hewlett Packard
Hardware Available January 2003
Software AvailableJanuary 2003
Date TestedApril 2003
SFS License Number2
Licensee LocationsNashua, NH

CPU, Memory and Power
Model Name HP AlphaServer GS1280 Model 4 7/1150
Processor 1.15 GHz EV7 21364
# of Processors 4
Primary Cache 64KB(I)+64KB(D) on chip
Secondary Cache 1.75MB on chip per CPU
Other Cache None
UPS --
Other Hardware --
Memory Size 32 GB
NVRAM Size 4 GB
NVRAM Type HSV110 Storage Controller
NVRAM Description96 hour battery backup

Server Software
OS Name and VersionHP Tru64 UNIX V5.1B (Rev. 2650)
Other Software --
File System UFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic (UBC Cache)
# NFS Processes 256 kernel threads
Fileset Size 386.8 GB

Network Subsystem
Network Type Jumbo Frame Gigabit
Network Controller Desc. PCI to Gigabit Ethernet Controller (DEGXA-TA copper)
Number Networks 4 (N1-N4)
Number Network Controllers4
Protocol Type UDP

Switch Type 1 Extreme Summit 7i
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 5
Number of Disks 337
Number of Filesystems 96 (F1-F96)
File System Creation Opsdefault
File System Config default

Disk Controller Internal LVD Ultra SCSI controller
# of Controller Type 1
Number of Disks 1
Disk Type BD0186349B (18GB Ultra SCSI, 10000rpm)
File Systems on Disks OS, swap
Special Config Notes OS (partitions A & G), Swap (partition B)

Disk Controller PCI to FC Controller (DS-KGPSA-DA) (2Gb)
# of Controller Type 4 (2 pairs)
Number of Disks 336
Disk Type 238590-B21 (36GB, 10000 RPM FC-AL)
File Systems on Disks F1-F96
Special Config Notes See Other notes

Load Generator (LG) Configuration
Number of Load Generators 8
Number of Processes per LG96
Biod Max Read Setting 6
Biod Max Write Setting 6

LG Type LG1
LG Model HP AlphaServer DS25 Model 68/1000
Number and Type Processors2 1000MHz 21264C
Memory Size 4GB
Operating System HP Tru64 UNIX V5.1B (Rev. 2650) (see Other notes)
Compiler cc
Compiler Options -arch ev67 -O3
Network Type PCI to Gigabit Ethernet Controller (DEGXA-TA copper)

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1,2LG1N1F1..F96
3,4LG1N2F1..F96
5,6LG1N3F1..F96
7,8LG1N4F1..F96


Other Notes


Generated on Tue Apr 29 15:02:11 2003 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 29-Apr-2003
