SPECsfs97_R1.v3 Result

IBM Corporation :IBM TotalStorage NAS Gateway 500 (UDP - Failover Cluster)
SPECsfs97_R1.v3 =68444 Ops/Sec (Overall Response Time = 1.75 msec)

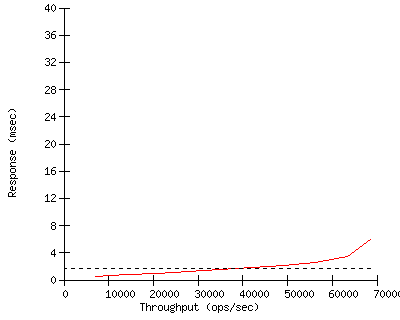

Performance Graph


Server Configuration and Availability
Vendor IBM Corporation
Hardware Available February 2004
Software AvailableFebruary 2004
Date TestedNovember 2003
SFS License Number11
Licensee LocationsTucson, Arizona

CPU, Memory and Power
Model Name IBM TotalStorage NAS Gateway 500 (UDP - Failover Cluster)
Processor 1.45GHz POWER4+
# of Processors 8 (4 per node)
Primary Cache 64KBI+32KBD on chip per CPU
Secondary Cache 1536KB shared, unified on chip per SCM
Other Cache 8MB unified off chip per SCM, 2 SCMs per node
Other Hardware N/A
Memory Size 64GB (32 GB per node)
NVRAM Type 2GB Non Volatile Storage (NVS) per ESS 800
NVRAM Description72 hour battery backup of NVS

Server Software
OS Name and VersionNAS Gateway 500 System Software, v1.1.0
Other Software Cluster software feature enabled
File System Enhanced JFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 2 (1 per node)
Fileset Size 667.2 GB

Network Subsystem
Network Type Jumbo Frame Gigabit Ethernet
Network Controller Desc. 2-Port Gigabit Ethernet-SX PCI-X Adapter
Number Networks 1 (N1)
Number Network Controllers2 active, 2 standby (see other notes)
Protocol Type UDP

Switch Type Cisco WS-C6009
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 10 (5 per node)
Number of Disks 226
Number of Filesystems 2 (F1-F2)
File System Creation OpsDefault
File System Config See Other Notes

Disk Controller Wide/Ultra-3 SCSI I/O Controller
# of Controller Type 2 (1 per node)
Number of Disks 2 (1 per node)
Disk Type 36.4GB 16-bit SCSI
File Systems on Disks OS, page space
Special Config Notes N/A

Disk Controller IBM Fibre Channel Adapter (2Gbps)
# of Controller Type 8 (4 per node)
Number of Disks 224 (112 per node)
Disk Type 72.8GB 10Krpm SSA
File Systems on Disks F1-F2
Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators 16
Number of Processes per LG24
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model IBM Intellistation M Pro
Number and Type Processors933MHz 6868 4BU
Memory Size 256 MB
Operating System Red Hat Linux 7.3
Compiler N/A, SFS97_R1 pre-compiled binaries
Compiler Options N/A
Network Type Intel 10/100/1000 Base-T Ethernet PCI Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2/../8LG11/fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2N/A
9/10/../16LG11/fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs2, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1, /fs1N/A

Other Notes

Generated on Wed Jan 7 13:28:27 2004 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 07-Jan-2004
