SPECsfs97_R1.v3 Result

Sun Microsystems, Inc. :StorEdge 5310 NAS
SPECsfs97_R1.v3 =17871 Ops/Sec (Overall Response Time = 2.19 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
18081.2
36161.2
54541.3
72531.5
90921.9
109492.5
127462.9
145913.4
164493.9
178715.1

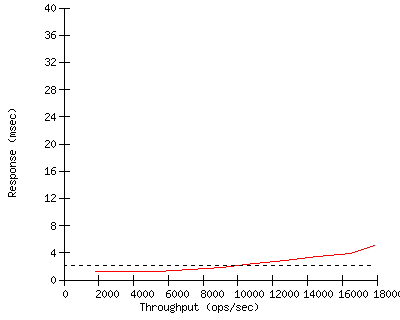

Performance Graph


Configuration

Server Configuration and Availability
Vendor Sun Microsystems, Inc.
Hardware Available November 2004
Software AvailableFebruary 2005
Date TestedFebruary 2005
SFS License Number6
Licensee LocationsSanta Clara, CA

CPU, Memory and Power
Model Name StorEdge 5310 NAS
Processor 3.06GHz Intel Xeon
# of Processors 1 core, 1 chip, 1 core/chip
Primary Cache 12K micro-ops I + 8KBD on chip
Secondary Cache 512KB (I+D) on chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 4 GB
NVRAM Size 4 GB (2GB per StorEdge 5300 RAID EU controller tray)
NVRAM Type StorEdge 5300 RAID EU write cache
NVRAM DescriptionWB with battery backup

Server Software
OS Name and VersionStorEdge NAS Ver 4.03.01
Other Software N/A
File System sfs2
NFS version 3

Server Tuning
Buffer Cache Size Default
# NFS Processes 72
Fileset Size 174.1 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. Integrated Gb Ethernet
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type Sun Fire B1600 Blade System Chassis
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 4
Number of Disks 84
Number of Filesystems 20 (F1-F20)
File System Creation Opsdefault
File System Config each R5 LUN has (1) 408GB file system, (2) segments each

Disk Controller Integrated 2Gb dual fibre channel
# of Controller Type 2
Number of Disks 84
Disk Type Seagate ST314680F 146G 10k RPM FC
File Systems on Disks F1-20
Special Config Notes 20 3+1 RAID 5 LUNs

Load Generator (LG) Configuration
Number of Load Generators 16
Number of Processes per LG5
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Sun Fire B100x
Number and Type Processors(1) AMD Mobile Athlon XP 1800+ @ 1.53 GHz
Memory Size 2GB
Operating System Solaris 10
Compiler Sun One Studio 10 (Sun C 5.7 DEV 2004/12/05)
Compiler Options -lm -lsocket -lnsl
Network Type onboard Sun GigaSwift ethernet interface

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1,5,9,13LG1N1/F1-5N/A
2,6,10,14LG1N1/F6-10N/A
3,7,11,15LG1N1/F11-15N/A
4,8,12,16LG1N1/F16-20N/A


Other Notes


Generated on Wed Mar 16 15:31:17 2005 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 01-Mar-2005
