SPECsfs97_R1.v3 Result

Sun Microsystems, Inc. :	StorEdge 5310C NAS Failover Cluster
SPECsfs97_R1.v3 =	34074 Ops/Sec (Overall Response Time = 1.83 msec)

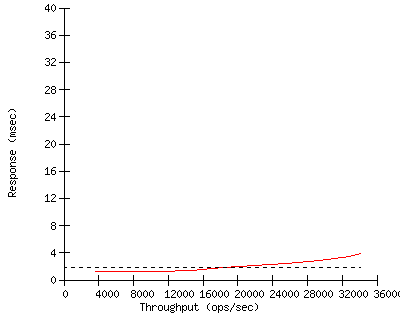

Performance

Throughput (ops/sec)	Response (msec)
3667	1.2
7288	1.2
10892	1.3
14623	1.4
18302	1.8
21893	2.1
25634	2.4
29338	2.8
32886	3.4
34074	3.9

Configuration

Server Configuration and Availability
Vendor	Sun Microsystems, Inc.
Hardware Available	November 2004
Software Available	February 2005
Date Tested	May 2005
SFS License Number	6
Licensee Locations	Santa Clara, CA

CPU, Memory and Power

Model Name StorEdge 5310C NAS Failover Cluster

Processor 3.06GHz Intel Xeon

# of Processors 2 cores, 2 chips, 1 core/chip (1 core per node)

Primary Cache 12K micro-ops I + 8KBD on chip per chip

Secondary Cache 512KB (I+D) on chip per chip

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 8 GB (4GB per node)

NVRAM Size 8 GB (2GB per StorEdge 5300 RAID EU controller tray)

NVRAM Type StorEdge 5300 RAID EU write cache

NVRAM Description WB with battery backup

Server Software

OS Name and Version StorEdge NAS Ver 4.04.05

Other Software N/A

File System sfs2

NFS version 3

Server Tuning

Buffer Cache Size Default

# NFS Processes 144 (72 per node)

Fileset Size 348.1 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	Integrated Gb Ethernet
Number Networks	2 (N1 - Service, N2 - Cluster)
Number Network Controllers	4 (2 per node)
Protocol Type	TCP

Switch Type Sun Fire B1600 Blade System Chassis

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 8

Number of Disks 168

Number of Filesystems 40 (Node 1:F1-F20, Node 2: F21-F40)

File System Creation Ops default

File System Config each R5 LUN houses (1) 252GB file system

Disk Controller Integrated 2Gb dual fibre channel

# of Controller Type 4

Number of Disks 168

Disk Type Seagate ST314680F 146G 10k RPM FC

File Systems on Disks F1-40

Special Config Notes 40 3+1 RAID 5 LUNs

Load Generator (LG) Configuration
Number of Load Generators	24
Number of Processes per LG	5
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Sun Fire B100x

Number and Type Processors (1) AMD Mobile Athlon XP 1800+ @ 1.53 GHz

Memory Size 2GB

Operating System Solaris 10

Compiler Sun One Studio 10 (Sun C 5.7 DEV 2004/12/05)

Compiler Options -lm -lsocket -lnsl

Network Type onboard Sun GigaSwift ethernet interface

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1,9,17 LG1 N1 /F1-3,/F21-22 N/A

2,10,18 LG1 N1 /F23-25,/F4-5 N/A

3,11,19 LG1 N1 /6-8,/F26-27 N/A

4,12,20 LG1 N1 /F28-30,/F9-10 N/A

5,13,21 LG1 N1 /F11-13,/F31-32 N/A

6,14,22 LG1 N1 /F33-35,/F14-15 N/A

7,15,23 LG1 N1 /F16-18,/F36-37 N/A

8,16,24 LG1 N1 /F38-40,/F19-20 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1,9,17	LG1	N1	/F1-3,/F21-22	N/A
2,10,18	LG1	N1	/F23-25,/F4-5	N/A
3,11,19	LG1	N1	/6-8,/F26-27	N/A
4,12,20	LG1	N1	/F28-30,/F9-10	N/A
5,13,21	LG1	N1	/F11-13,/F31-32	N/A
6,14,22	LG1	N1	/F33-35,/F14-15	N/A
7,15,23	LG1	N1	/F16-18,/F36-37	N/A
8,16,24	LG1	N1	/F38-40,/F19-20	N/A

Other Notes

OS Tuning:
Checkpoint disabled on all volumes.
NFS worker threads set to 72.
Enable Unicode character set.
Disable system monitor.
Disable directory audit.
Disable file system read ahead.
Disable file system access time update.
Maximum queued HBA commands limited to 128.
Limit journal record checksum to header portion only.
The tested system is a failover cluster composed of (2) nodes.
There are (2) gigabit ports per node. (1) port is used for
heartbeat and administration. The other port is used for file
system serving. Each node is the owner of (20) file systems and
has the capability of taking over the partner node file systems.
The storage subsystem consists of (4) dual-controller Sun StorEdge
NAS 5300 RAID EU controller trays with cache mirroring disabled,
and (8) Sun StorEdge NAS 5300 RAID EU F expansion trays, totalling
168 drives. (40) 3+1 RAID 5 LUNs are configured, with (8) drives
remaining as hot spares. All LUNs are available to both NAS heads
via a storage fabric, with each head having primary server
responsibility for (20) LUNs. (2) Brocade Silkworm 3800 FCAL
switches instantiate the fabric. In the case that a NAS head fails,
the remaining head automatically assumes responsibility for LUNs
belonging to the failed head. Each 252GB file system is built from a
single segment, with each segment residing on one RAID5 LUN, (1) file
system per LUN. LUNs are striped vertically across controller and
expansion trays.
Controller arrays provide battery-backed cache memory. In the
case that line power is lost, battery power is sufficient to
preserve cache contents for 72 hours minimum. If the batteries
are depleted to the extent that they cannot maintain memory for
72 hours, the controller will automatically switch to write-
through mode. Controller arrays were run in split-cache mode;
software required to configure the arrays in this mode is available
as a free download from www.sun.com.
NAS heads were run in default mode with respect to hyper-threading.
The StorEdge NAS operating system is contained on a flash disk
within the NAS head. The network under test utilized GigaBit
ethernet with standard frame size.

First published at SPEC.org on 07-Jun-2005

LG Type	LG1
LG Model	Sun Fire B100x
Number and Type Processors	(1) AMD Mobile Athlon XP 1800+ @ 1.53 GHz
Memory Size	2GB
Operating System	Solaris 10
Compiler	Sun One Studio 10 (Sun C 5.7 DEV 2004/12/05)
Compiler Options	-lm -lsocket -lnsl
Network Type	onboard Sun GigaSwift ethernet interface
