SPECsfs97_R1.v3 Result

GlueSys Co, Ltd. :AnyStor GW-C (failover Cluster)
SPECsfs97_R1.v3 =66932 Ops/Sec (Overall Response Time = 0.64 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
75310.3
141260.3
221370.4
289830.5
361350.5
431830.7
509870.8
572011.1
641151.6
669322.1

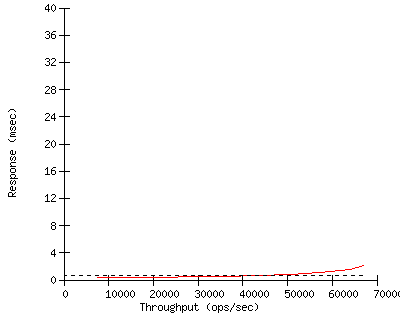

Performance Graph


Configuration

Server Configuration and Availability
Vendor GlueSys Co, Ltd.
Hardware Available Nov 2007
Software AvailableNov 2007
Date TestedNov 2007
SFS License Number3473
Licensee LocationsSeoul Korea

CPU, Memory and Power
Model Name AnyStor GW-C (failover Cluster)
Processor Intel Xeon Process 5130 Dual Core 2.0GHz
# of Processors 8 cores, 4 chips, 2 cores/chip (2 chips per node)
Primary Cache 32KBI+32KBD on chip
Secondary Cache 4MB(I+D) on chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 8 GB (4 GB per node)
NVRAM Size 256 GB
NVRAM Type DIMM
NVRAM Description48 hour battery backed

Server Software
OS Name and VersionGBS4.1
Other Software N/A
File System GBFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 256 (128 per node)
Fileset Size 676.9 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. Jumbo Frame (mtu 9000), 2 port aggregated
Number Networks 1 (N1)
Number Network Controllers8 (4 per node)
Protocol Type TCP

Switch Type Cisco 3650
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 6
Number of Disks 260
Number of Filesystems 32 (F1-F32)
File System Creation Opsdefault
File System Config noatime

Disk Controller LSI SAS controller
# of Controller Type 2 (1 per node)
Number of Disks 4 (2 per node)
Disk Type Seagate Cheetah 73GB 10K RPM
File Systems on Disks Operating System
Special Config Notes RAID 1 mirroring

Disk Controller QLA2422 (Dual port)
# of Controller Type 4
Number of Disks 256
Disk Type 146GB 15K RPM FC (128), 146GB 10K RPM FC (128)
File Systems on Disks F1-F32
Special Config Notes RAID Level 10 with 8 disks, total 32 LUNs

Load Generator (LG) Configuration
Number of Load Generators 4
Number of Processes per LG32
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Intel SE7520JR2
Number and Type Processors2.4GHz Xeon
Memory Size 1GB
Operating System RHEL 4.3
Compiler precompiled binary
Compiler Options N/A
Network Type Integrated Intel Pro/1000 Gigabit

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1/v1, /v2, /v3, /v4, /v5, /v6, /v7, /v8, /v9, /v10, /v11, /v12, /v13, /v14, /v15, /v16, /v17, /v18, /v19, /v20, /v21, /v22, /v23, /v24, /v25, /v26, /v27, /v28, /v29, /v30, /v31, /v32N/A
2LG1N1/v9, /v10, /v11, /v12, /v13, /v14, /v15, /v16, /v17, /v18, /v19, /v20, /v21, /v22, /v23, /v24, /v25, /v26, /v27, /v28, /v29, /v30, /v31, /v32, /v1, /v2, /v3, /v4, /v5, /v6, /v7, /v8N/A
3LG1N1/v17, /v18, /v19, /v20, /v21, /v22, /v23, /v24, /v25, /v26, /v27, /v28, /v29, /v30, /v31, /v32, /v1, /v2, /v3, /v4, /v5, /v6, /v7, /v8, /v9, /v10, /v11, /v12, /v13, /v14, /v15, /v16N/A
4LG1N1/v19, /v20, /v21, /v22, /v23, /v24, /v25, /v26, /v27, /v28, /v29, /v30, /v31, /v32, /v1, /v2, /v3, /v4, /v5, /v6, /v7, /v8, /v9, /v10, /v11, /v12, /v13, /v14, /v15, /v16, /v17, /v18N/A


Other Notes
