CPU2006 Frequently asked questions

Last updated: $Date: 2014-04-14 11:49:23 -0400 (Mon, 14 Apr 2014) $ by $Author: JohnHenning $

This document has frequently asked technical questions and answers. The latest version of this document may be found at http://www.spec.org/cpu2006/Docs/faq.html.

If you are looking for the list of known problems with SPEC CPU2006, please see http://www.spec.org/cpu2006/Docs/errata.html.

Contents

Installation

Install.01 ./install.sh: /bin/sh: bad interpreter: Permission denied

Install.02 The DVD drive is on system A, but I want to install on system B. What do I do?

Install.03 Error occurred while processing: C:\Documents

Install.04 How do I uninstall?

Install.05 Do I need to be root?

runspec

runspec.01 Can't locate strict.pm

runspec.02 specperl: bad interpreter: No such file or directory

runspec.03 'http://xml.org/sax/features/namespaces' is not recognized by XML::SAX::ExpatXS

runspec.04 Error: Start tag for undeclared element platform_settings

runspec.05 Do I need to be root?

Building benchmarks

Build.01 CreateProcess((null), ifort ...) failed.

Build.02 make.clean.err does not exist

Build.03 Why is it rebuilding the benchmarks?

Build.04 Is there a config file for Visual C++?

Build.05 482.sphinx3 Identifier int8 has already been defined

Setting up

Setup.01 hash doesn't match after copy

Setup.02 Copying executable failed

Running benchmarks

Run.01 What's this specrand thing?

Run.02 Why does this benchmark take so long to run?

Run.03 Why was there this cryptic message from the operating system?

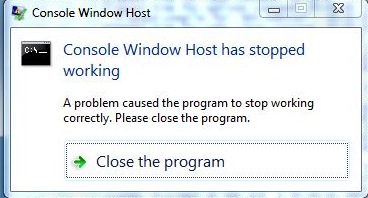

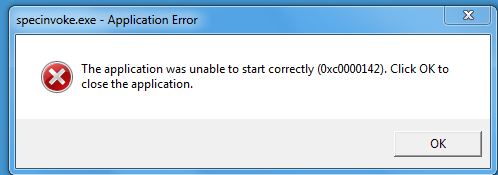

Run.04 Console Window Host has stopped working; specinvoke unable to start 0xc0000142

Run.05 464.h264ref loops until killed using certain optimizations with a GCC snapshot

Miscompares

Miscompare.01 I got a message about a miscompare

Miscompare.02 The benchmark took less than 1 second

Miscompare.03 The .mis file says "short"

Miscompare.04 My compiler is generating bad code!

Miscompare.05 The code is bad even with low optimization!

Miscompare.06 The .mis file is just a bunch of numbers.

Miscompare.07 464.h264ref *** Miscompare of foreman_test_baseline_encodelog.out

Miscompare.08 482.sphinx3 FATAL_ERROR: "mdef.c", line 427: Duplicate base phone: +BREATH+

Results reporting

Results.01 Where did the reference times go?

Results.02 It's hard to cut/paste into my spreadsheet

Results.03 What is a "flags file"? What does Unknown Flags mean?

Results.04 Submission Check -> FAILED

Installation

Install.01 q. Why am I getting a message such as "./install.sh: /bin/sh: bad interpreter: Permission denied"?

a. If you are installing from the DVD, check to be sure that your operating system allows programs to be executed from the DVD. For example, some Linux man pages for mount suggest setting the properties for the CD or DVD drive in /etc/fstab to "/dev/cdrom /cd iso9660 ro,user,noauto,unhide", which is notably missing the property "exec". Add exec to that list in /etc/fstab, or add it to your mount command. Notice that the sample Linux mount command in install-guide-unix.html does include exec.

Perhaps install.sh lacks permission to run because you tried to copy all the files from the DVD, in order to move them to another system. If so, please don't do that. There's an easier way. See the next question.

Install.02 q. The DVD drive is on system A, but I want to install on system B. What do I do?

a. The installation guides have an appendix just for you, which describe installing from the network or installing from a tarfile. See Appendix 1 in install-guide-unix.html or install-guide-windows.html.

Install.03 q. Why did the installation fail with Error occurred while processing: C:\Documents?

I was installing on Windows using the tar file. It said:

C:\Documents and Settings\John\cpu2006> install
The environment variable SPEC should point to the source of the
SPEC distribution as an absolute path.  I will now try to set
the variable for you...

SPEC is set to C:\Documents and Settings\John\cpu2006
If this is NOT what you want, press control-C
Press any key to continue . . .
Installing from "C:\Documents and Settings\John\cpu2006"

Checking the integrity of your source tree...

 Depending on the amount of memory in your system, and the speed of your
 destination disk, this may take more than 10 minutes.
 Please be patient.

The system cannot find the file specified.
Error occurred while processing: C:\Documents.
The system cannot find the file specified.
Error occurred while processing: and.
The system cannot find the path specified.
C:\Documents and Settings\John\cpu2006\tools\bin\windows-i386\specmd5sum: MANIFEST.tmp: no properly formatted MD5 checksum lines found
Package integrity check failed!
Installation NOT completed!

a. The problem is that the SPEC tools do NOT support spaces in path names. Sorry. This is a limitation of the SPEC toolset and there are currently no plans to change this requirement. Please use a path that does not contain spaces.

Install.04 q. How do I uninstall? This script uninstall.sh doesn't seem to be it.

a. You are correct that uninstall.sh does not remove the whole product; it only removes the SPEC tool set, and does not affect the benchmarks (which consume the bulk of the disk space). At this time, SPEC does not provide an uninstall utility for the suite as a whole. But it's easy to do: on Unix systems, use rm -Rf on the directory where you installed the suite, for example:

  rm -Rf /home/cs3000/saturos/spec/cpu2006

On Windows systems, select the top directory in Windows Explorer and delete it.

If you have been using the output_root feature, you will have to track those down separately. See the suggested commands in the appendix about uninstalling, in the install guides.

Note: instead of deleting the entire directory tree, some users find it useful to keep the config and result subdirectories, while deleting everything else.

Install.05 Do I need to be root?

Occasionally, users of Unix systems have asked whether it is necessary to elevate privileges, or to become 'root', prior to installing or running SPEC CPU2006.

a. SPEC recommends (*) that you do not become root, because: (1) To the best of SPEC's knowledge, no component of SPEC CPU needs to modify system directories, nor does any component need to call privileged system interfaces. (2) Therefore, if you find that it appears that there is some reason why you need to be root, the cause is likely to be outside the SPEC toolset - for example, disk protections, or quota limits. (3) For safe benchmarking, it is better to avoid being root, for the same reason that it is a good idea to wear seat belts in a car: accidents happen, humans make mistakes. For example, if you accidentally type:

kill 1

when you meant to say:

kill %1

then you will very grateful if you are not privileged at that moment.

(*) This is only a recommendation, not a requirement nor a rule.

runspec

runspec.01 q. When I say runspec, why does it say Can't locate strict.pm? For example:

D:\cpu2006>runspec --help
Can't locate strict.pm in @INC (@INC contains: .) at
D:\cpu2006\bin\runspec line 62.
BEGIN failed--compilation aborted at D:\cpu2006\bin\runspec line 62.

a. You can't use runspec if its path is not set correctly. On Unix, Linux, or Mac OS X, you should source shrc or cshrc, as described in runspec.html section 2.4. For Windows, please edit shrc.bat and make the adjustments described in the comments. Then, execute that file, as described in runspec.html section 2.5.

runspec.02 q. Why am I getting messages about specperl: bad interpreter? For example:

bash: /cpu2006newdir/bin/runspec: /cpu2006/bin/specperl: bad interpreter: No such file or directory

a. Did you move the directory where runspec was installed? If so, you can probably put everything to rights, just by going to the new top of the directory tree and typing "bin/relocate".

For example, the following unwise sequence of events is repaired after completion of the final line.

Top of SPEC benchmark tree is '/cpu2006'
Everything looks okay.  cd to /cpu2006,
source the shrc file and have at it!
$ cd /cpu2006
$ . ./shrc
$ cd ..
$ mv cpu2006 cpu2006newdir
$ runspec -h | head
bash: runspec: command not found
$ cd cpu2006newdir/
$ . ./shrc
$ runspec --help | head
bash: /cpu2006newdir/bin/runspec: /cpu2006/bin/specperl: bad interpreter: No such file or directory
$ bin/relocate

runspec.03 q. Why does runspec fail with The feature 'http://xml.org/sax/features/namespaces' is not recognized by XML::SAX::ExpatXS?

a. The problem is that the ExpatXS module as built on SuSE 10.1 requires a type of code relocation that SELinux does not want to allow. For SPEC CPU2006 V1.1, several workarounds were suggested: enable relocations for the offending object, or turn off SELinux, or try a different toolset. For CPU2006 V1.2, the problem is not expected to occur.

runspec.04 q. Why did I get the message Error: Start tag for undeclared element platform_settings?

I installed SPEC CPU2006 V1.2, and now my runspec command exits immediately, with this message:

ERROR: An error was encountered while parsing the flag description file
        at /cpu2006/V1.2/config/Oracle-Solaris-Studio12.2.xml
   Output from the XML validator follows:

-----------
Error: Start tag for undeclared element platform_settings
 in unnamed entity at line 91 char 19


a. The problem above is that although the named file (/cpu2006/V1.2/config/Oracle-Solaris-Studio12.2.xml) has useful information about the tested platform, the information needs to be updated and put into new locations. For SPEC CPU2006 V1.2, instead of using a platform element, you need to use a platform file. The message above is telling you that there is no element named "platform_settings" (as of V1.2).

An example of how to fix SPEC CPU2006 V1.1 flags files to match the SPEC CPU2006 V1.2 format is available in flag-description.html.

You must fix this problem in order to proceed, because runspec exits immediately if flags files are improperfly formatted. (Or, you could do your run with no flags files at all, and then add them back in afterwards with rawformat --flagsurl. This tactic will allow your run to proceed, but the results wll be marked invalid until you apply the flags.)

runspec.05 Do I need to be root?

Regarding the root account, the answer for runspec is the same as the answer for installation question #5, above.

Building benchmarks

Build.01 q. I'm using Windows and I can't build any benchmarks. What does CreateProcess((null), ifort ...) failed mean? For example:

Error with make 'specmake build': check file
'D:/cpu2006/benchspec/CPU2006/410.bwaves/run/build_base_cpu2006.win32.fast.exe.0000/make.err'
  Error with make!
*** Error building 410.bwaves
-----
make.err:
process_begin: CreateProcess((null), ifort -c -Foblock_solver.obj -Ox block_solver.f, ...) failed.
make (e=2): The system cannot find the file specified.

specmake: *** [block_solver.obj] Error 2

a. This CreateProcess failure occurs on Windows when specmake cannot find your compiler. (Recall from system-requirements.html that the benchmarks are supplied in source code form, and that they must be compiled.)

The reason that it cannot find your compiler is, most likely, because:

  1. You have not edited shrc.bat to correctly reference your compiler, or
  2. You have used a config file that references a compiler that does not exist.

To fix your problem, investigate and address both items.

  1. In shrc.bat, you need to either:

    1. Reference a vendor-supplied file that sets the path.

      The supplied shrc.bat in V1.2 mentions sample .bat files that are often provided by compilers to set your environment. If you want to use this option but you can't find the right file, check your compiler documentation, or you might try searching your hard drive for *vars*bat.

      The file names change frequently; check your compiler docs.

      For example, for Visual Studio 10, you might use something like call "C:\Program Files (x86)\Microsoft Visual Studio 10.0\Common7\Tools\vsvars32.bat" but for older compilers, you might need to look for vcvars32.bat, not vsvars32.bat.

      For example, when using the (mid-2011) Intel compiler, to select 32 or 64-bit mode, you must remember to add the appropriate argument after the call. This statement requests 32-bit mode:
      call "C:\Program Files (x86)\Intel\ComposerXE-2011\bin\compilervars.bat" ia32

      For example, when using the PGI 11.7 compiler, the path varies depending on whether you are using 32 or 64-bit mode:
      call "c:\Program Files\PGI\win64\11.7\pgi_env.bat"
      or
      call "c:\Program Files (x86)\PGI\win32\11.7\pgi_env.bat"

      Summary: your call statement will vary, by compiler, by version, and sometimes, by features. Check your compiler's documentation, to find the right call.

    2. Or, edit the path yourself.

      You can set the path yourself if you like, with commands such as:

      set PATH=%PATH%;"c:\program files\path\to\my\compiler\bin"

      If you want to use option b, but you can't figure out what path to set, try looking in the documentation for your compiler under topics such as "setting the path", or "command line", or "environment variables". The documentation should mention whether any other environment variables (such as LIB or INCLUDE) are required, in addition to PATH.

  2. You must also use a config file that is appropriate for your compiler. Microsoft C++ users: please see below.

Build.02 q. The file make.clean.err is mentioned, but it does not exist. Why not?

The tools print a message such as:

   Building 401.bzip2 ref base cpu2006.win32.fast.exe default:
(build_base_cpu2006.win32.fast.exe.0000)
Error with make.clean 'specmake clean': check file
'D:/cpu2006/benchspec/CPU2006/401.bzip2/run/build_base_cpu2006fast.exe.0000/make.clean.err'
*** Error building 401.bzip2
If you wish to ignore this error, please use '-I' or ignore errors.

But on investigation, the file make.clean.err does not exist. Why not?

a. A missing .err file has been reported on Microsoft Windows if a path from shrc.bat uses quoted strings that include semicolons within the quotes, such as:

set PATH="%PATH%;d:\My Compiler Path\bin"  <--- wrong
set PATH="%PATH%;d:\mycompiler\bin"        <--- wrong

Paths such as the above may appear to work if you enter them at the command line. But when the tools call CreateProcess, they cause mysterious-seeming failures. The correct way to do it is:

    set PATH=%PATH%;"d:\My Compiler Path\bin"
or
    set PATH=%PATH%;d:\mycompiler\bin

Notice that in both cases, there are no semicolons inside of quotes.

Build.03 q. Why is it rebuilding the benchmarks?

a. You changed something, and the tools thought that it might affect the generated binaries. Note that as of V1.1, unexpected rebuilds should be greatly reduced.

Build.04 q. Are there config files for Visual C++?

a. Yes, but they are incomplete. In your directory %SPEC%\config\ there are config files that can be used to compile all but one of the C/C++ benchmarks:

%SPEC%\config\Example-windows-ia32-visualstudio.cfg

or

%SPEC%\config\Example-windows-amd64-visualstudio.cfg

but (as of July 2011) these will not compile 462.libquantum. Please read the comments carefully in the above config files, to understand their limitations.

Users of Microsoft Visual C++ should also please note that the config files from results posted with the Intel C++ compiler are not appropriate for you, nor is the file %SPEC%\config\Example-windows-ia32-icl.cfg on your kit. The Intel compiler has additional switches that the Microsoft compiler does not recognize, and it spells the compiler name differently ("icl" vs. "cl").

Build.05 q. Why does 482.sphinx3 fail to build, claiming Identifier int8 has already been defined?

The compile fails, complaining

./libutil/prim_type.h", line 65.25: 1506-334 (S)
Identifier int8 has already been defined on line 618 of "/usr/include/sys/inttypes.h

a. The above symptom may occur if your compiler assumes that char variables are unsigned. The source code for 482.sphinx3 assumes that they are signed. Please see the section About Signed Char, below.

Setting up

Setup.01 q. What does hash doesn't match after copy mean?

I got this strange, difficult to reproduce message:
    hash doesn't match after copy ... in copy_file (1 try total)! Sleeping 2 seconds...
followed by several more tries and sleeps. Why?

a. During benchmark setup, certain files are checked. If they don't match what they are expected to, you might see this message. Check:

If the condition persists, try turning up the verbosity level. Look at the files with other tools; do they exist? Can you see differences? Try a different disk and controller. And, check for the specific instance of this message described in the next question.

Setup.02q. Why does it say ERROR: Copying executable failed?

I got this strange, difficult to reproduce message:
    ERROR: Copying executable to run directory FAILED
or
    ERROR: Copying executable from build dir to exe dir FAILED!
along with the bit about hashes not matching from the previous question. Why?

a. Perhaps you have attempted to build the same benchmark twice in two simultaneous jobs.

On most operating systems, the SPEC tools don't mind concurrent jobs. They use your operating system's locking facilities to write the correct outputs to the correct files, even if you fire off many runspec commands at the same time.

But there's one case of simultaneous building that is difficult for the tools to defend against: please don't try to build the very same executable from two different jobs at the same time. Notice that if you say something like this:

$ tail myconfig.cfg
445.gobmk=peak:
basepeak=yes
$ runspec --config myconfig --size test --tune base 445.gobmk &
$ runspec --config myconfig --size test --tune peak 445.gobmk &

then you are trying to build the same benchmark twice in two different jobs, because of the presence of basepeak=yes. Please don't try to do that.

Running benchmarks

Run.01 q. What's this specrand thing?

During a run, 998.specrand and 999.specrand are mentioned. Why? For example;

   Benchmarks selected: 400.perlbench, 401.bzip2, 403.gcc, 429.mcf, 445.gobmk,
   456.hmmer, 458.sjeng, 462.libquantum, 464.h264ref, 471.omnetpp, 473.astar,
   483.xalancbmk, 999.specrand
   .
   .
   .
     Running 473.astar test peak submitted default (1 copy)
     Running 483.xalancbmk test peak submitted default (1 copy)
     Running 999.specrand test peak submitted default (1 copy)


a. Several of the benchmarks use a common random number generator. During development of CPU2006, it was often useful to have the random number generator as a separate pseudo-benchmark, to help with problem diagnosis. ("You miscompared on benchmark mumble? Hmmm. Do you also miscompare on specrand?")

For the released version of the suite, SPEC decided to retain specrand, in case it comes in useful for later problem diagnosis. It is run with both the integer and floating point suites, but its time is not reported, and its performance does not contribute to the bottom line metrics.

You'll find more information about specrand at http://www.spec.org/cpu2006/Docs/999.specrand.html.

Run.02 q. Why does this benchmark suite take so long to run?

a. Please understand that the suite has been designed to be useful for at least 5 years. Benchmarks that seem slow today probably will not seem slow at the end of life of the suite. You can see a bit more on this topic at question 17 of readme1st.html.

Run.03 q. Why was there this cryptic message from the operating system?

a. If you are getting cryptic, hard-to-reproduce, unpredictable error messages from your system, one possible reason may be that the benchmarks consume substantial resources, of several types. If an OS runs out of some resource - for example, pagefile space, or process heap space - it might not give you a very clear message. Instead, you might see only a very brief message, or a diaolog box with a hex error code in it. Please see the hints and suggestions in the section about resources in system-requirements.html.

Run.04 Console Window Host has stopped working; specinvoke unable to start 0xc0000142

It was reported that under Windows7 with SP1, a user saw SPEC CPU2006 benchmark failures and this dialog box:
console window host has
  stopped working
which, after pressing the button, was followed by:
specinvoke 0xc0000142

The problem was difficult to diagnose, because the problem sometimes moved around (showing up at different stages of the run), with slight variations in the symptoms (e.g. which dialog boxes appeared). Eventually, it was noticed that an older (pre-Windows 7) version of cygwin was present in the %PATH%; removing cygwin from the %PATH% removed the failures.

Because the version of cygwin was obsolete, it would be unfair to "blame" it for the failures!

Nevertheless, it may be fair to point out that providing a Unix-like environment on Windows poses difficult problems. Historically there have been various approaches, with differing (incompatible) assumptions about how to mask or bridge differences between Windows and Unix. The SPEC CPU toolset has its own approach and its own set of assumptions, and this is not the first report of a difficult-to-diagnose error when a Windows/Unix compatibility product is present on the path.

Therefore, SPEC recommends that, in general, you should remove items from your path that are not needed, and, in particular, that you should remove Windows/Unix compatibility products from the %PATH% prior to invoking runspec.

If you see odd error messages such as the above, please remove any such products from the PATH prior to requesting support from SPEC.

New with CPU2006 V1.2, the utility printpath is documented, with an example of using it for the purpose of studying the path and then removing cygwin.

Run.05 464.h264ref loops until killed using certain optimizations with a GCC snapshot. 416.gamess also exhibits the problem.

Certain pre-release snapshots of GCC V4.8, when used to compile 464.h264ref with certain optimizations, will create an executable that loops indefinitely.

For example GCC snapshot 4.8-20130106 with:

'-O2 -fno-strict-aliasing'

will create the problem.

UPDATE 5-Feb-2013 it has been noted that similar problems may occur with 416.gamess.

a. Analysis: 464.h264ref reference beyond end of array

The looping behavior is believed to be due to 464.h264ref file mv-search.c line 1093, where there is a code pattern that appears to read beyond the end of an array, in the line

      for (dd=d[k=0]; k<16; dd=d[++k])

No value is written outside the bounds of 'd'.

No Source Change Planned

It has been suggested that SPEC should change the code in the benchmark. At this time, SPEC does not intend to do so.

Although the code pattern does not follow the C99 standard (See section 6.5.6/8), it is at minimum arguable that the code fragment is compliant under the C89 standard. The original code as provided by the International Telecommunications Union contained the pattern.

The CPU2006 run rules call out in the Philosophy section http://www.spec.org/cpu2006/Docs/runrules.html#rule_1.5

Because the SPEC CPU benchmarks are drawn from the compute intensive portion of real applications, some of them use popular practices that compilers must commonly cater for, even if those practices are nonstandard. In particular, some of the programs (and, therefore, all of base) may have to be compiled with settings that do not exploit all optimization possibilities that would be possible for programs with perfect standards compliance.

There are non-standard coding practices in at least 400.perlbench and 416.gamess. SPEC understands that these are present, but has included the benchmarks in the suite to represent common code in use.

During development of new benchmark suites, SPEC welcomes participation by interested parties from academia, industry, and vendors. During the development process, prior to release of the benchmark, SPEC always prefers to resolve portability problems by improving the standards compliance of candidate benchmarks.

Nevertheless, it must be recognized that SPEC CPU suites are not intended as a language standard compliance test; and, once a benchmark has been released, SPEC's greater concern is that changes not be introduced which might affect performance neutrality.

Workaround

When compiling 464.h264ref, do not use optimization switches that cause it to loop indefinitely. SPEC does not have a specific recommendation as to which switches to use; you may wish to consult your compiler documentation. Reminder: in base, all programs of a given language must be compiled with the same switches, therefore choices made for 464.h264ref may affect the performance of other programs in base.

UPDATE 5-Feb-2013 it has been suggested in the bugzilla reports (53086 53073) at gnu.org that the switch -fno-aggressive-loop-optimizations may work around the issue.

Miscompares

Miscompare.01 I got a message about a miscompare. The tools said something like:

Running Benchmarks
  Running 999.specrand ref base oct09a default
Error with '/spec/cpu2006/bin/specinvoke -E -d /spec/cp
u2006/benchspec/CPU2006/999.specrand/run/run_base_ref_o
ct09a.0000 -c 1 -e compare.err -o compare.stdout -f com
pare.cmd': check file '/spec/cpu2006/benchspec/CPU2006/
999.specrand/run/run_base_ref_oct09a.0000/.err'
*** Miscompare of rand.234923.out, see /spec/cpu2006/be
nchspec/CPU2006/999.specrand/run/run_base_ref_oct09a.00
00/rand.234923.out.mis
Error: 1x999.specrand
Producing Reports
mach: default
  ext: oct09a
    size: ref
      set: int
      set: fp

Why did it say that? What's the problem?

a. We don't know. Many things can cause a benchmark to miscompare, so we really can't tell you exactly what's wrong based only on the fact that a miscompare occurred.

But don't panic.

Please notice, if you read the message carefully, that there's a suggestion of a very specific file to look in. It may be a little hard to read if you have a narrow terminal window, as in the example above, but if you look carefully you'll see that it says:

*** Miscompare of rand.234923.out, see
/spec/cpu2006/benchspec/CPU2006/999.specrand/run/run_base_ref_oct09a.0000/rand.234923.out.mis

Now's the time to look inside that file. Simply doing so may provide a clue as to the nature of your problem.

On Unix systems, change your current directory to the run directory using the path mentioned in the message, for example:

cd /spec/cpu2006/benchspec/CPU2006/999.specrand/run/run_base_ref_oct09a.0000/

On Microsoft Windows systems, remember to turn the slashes backwards in your cd command.

Then, have a look at the file that was mentioned, using your favorite text editor. If the file does not exist, then check your paths, and check to see whether you have run out of disk space.

Miscompare.02 The benchmark ran, but it took less than 1 second and there was a miscompare. Help!

a. If the benchmark took less than 1 second to execute, it didn't execute properly. There should be one or more .err files in the run directory which will contain some clues about why the benchmark failed to run. Common causes include libraries that were used for compilation but not available during the run, executables that crash with access violations or other exceptions, and permissions problems. See also the suggestions in the next question.

Miscompare.03 I looked in the .mis file and it said something like:

   'rand.234923.out' short

What does "short" mean?

a. If a line like the above is the only line in the .mis file, it means that the benchmark failed to produce any output. In this case, the corresponding error file (look for files with .err extensions in the run directory) may have a clue. In this case, it was Segmentation Fault - core dumped. For problems like this, the first things to examine are the portability flags used to build the benchmark.

Have a look at the sample config files in $SPEC/config or, on Windows, %SPEC%\config. If you constructed your own config file based on one of those, maybe you picked a starting point that was not really appropriate (e.g. you picked a 32-bit config file but are using 64-bit compilation options). Have a look at other samples in that directory. Check at www.spec.org/cpu2006 to see if there have been any result submissions using the platform that you are trying to test. If so, compare your portability flags to the ones in the the config files for those results.

If the portability flags are okay, your compiler may be generating bad code.

Miscompare.04 My compiler is generating bad code! Help!

a. Try reducing the optimization that the compiler is doing. Instructions for doing this will vary from compiler to compiler, so it's best to ask your compiler vendor for advice if you can't figure out how to do it for yourself.

Miscompare.05 My compiler is generating bad code with low or no optimization! Help!

a. If you're using a beta compiler, try dropping down to the last released version, or get a newer copy of the beta. If you're using a version of GCC that shipped with your OS, you may want to try getting a "vanilla" (no patches) version and building it yourself.

Miscompare.06 I looked in the .mis file and it was just full of a bunch of numbers.

a. In this case, the benchmark is probably running, but it's not generating answers that are within the tolerances set. See the suggestions for how to deal with compilers that generate bad code in the previous two questions. In particular, you might see if there is a way to encourage your compiler to be careful about optimization of floating point expressions.

Miscompare.07 q. Why does 464.h264ref fail when it is run, printing *** Miscompare of foreman_test_baseline_encodelog.out?

When I run the benchmark 464.h264ref, I see messages like these:

*** Miscompare of foreman_ref_baseline_encodelog.out; for details see
*** Miscompare of foreman_test_baseline_encodelog.out; for details see
*** Miscompare of foreman_train_baseline_encodelog.out; for details see

followed by a pointer to a file that contains a list of miscompares. The first line to miscompare is typically line 15:

0015:  0000(IDR)   21952 0 28  37.383  41.260  42.850        0       0     FRM    99
       0000(IDR)   21952 0 28  37.383  41.246  42.833        0       0     FRM    99
                                                   ^

Why?

a. The above symptom may occur if your compiler assumes that char variables are unsigned. The source code for 464.h264ref assumes that they are signed.

About Signed Char: If you are experiencing the symptoms listed under Miscompare.07,   Miscompare.08,   or Build.05, please check your compiler documentation for a compiler switch that enables signed char, such as:

        -signed
        -fsigned-char
        -qchars=signed

Once you have found your compiler's switch for signed char, try adding that switch to your PORTABILITY flags for the affected benchmark, to see if it solves the problem.

If you wish to generate reportable results and use them in public, then you should check whether SPEC has already approved use of the flag. You can use the results search tool, www.spec.org/cgi-bin/osgresults, to look for published results from hardware/software platforms that are similar to your platform.

If SPEC has not previously approved the flag, you can ask SPEC to approve its use, in accordance with Rule 2.1.5 Portability Flags .

Important: There are several FAQ entries relating to signed char. If you have bumped into one of the symptoms, you should probably review all three: Miscompare.07,   Miscompare.08,   and Build.05

Miscompare.08 Why does 482.sphinx3 fail with FATAL_ERROR: "mdef.c", line 427: Duplicate base phone: +BREATH+?

When 482.sphinx3 is run, it fails, printing:

482.sphinx3: copy 0 non-zero return code (exit code=127, signal=0)

****************************************
Contents of an4.err
****************************************
FATAL_ERROR: "mdef.c", line 427: Duplicate base phone: +BREATH+   -   - - filler    0      0      1      2 N

a. The above symptom may occur if your compiler assumes that char variables are unsigned. The source code for 482.sphinx3 assumes that they are signed. Please see the section About Signed Char, above.

Results reporting

Results.01 q. Where did the reference times go?

I was reading an HTML (or PDF or PS) report and see that in the table SPEC now prints all three observations as both seconds and ratio, with the bold underlined item for the median. Although this is useful, CPU2000 results reports included the reference times in their own column, and I miss them. Yes, I understand that the ratio is defined as reference time / observed time, so I could calculate the reference times by simple multiplication. Nevertheless, it was nice having them handy in the previous report format.

a. They are still fairly easy to locate. The text format still prints them on every line (just like CPU2000), so if you go up to the top of your browser and change the .pdf (or .whichever) to .txt, you'll find the reference times.

Results.02 q. It's hard to cut/paste into my spreadsheet

a. Please don't do that. With CPU2006, there's a handy .csv format file right next to the other result formats on the index page. Or, you can go up to the top of your browser and change the .pdf (or .whichever) to .csv

Results.03 q. What is a "flags file"? What does the message Unknown Flags mean in a report?

a. SPEC CPU2006 provides benchmarks in source code form, which are compiled under control of SPEC's toolset. Compilation flags (such as -O5 or -unroll) are detected and reported by the tools with the help of flag description files. Therefore, to do a complete run, you need to (1) point to an existing flags file (easy) or (2) modify an existing flags file (slightly harder) or (3) write one from scratch (definitely harder).

  1. Find an existing flags file by noticing the address of the .xml file at the bottom of any result published at www.spec.org/cpu2006. You can use the --flagsurl switch to point your own runspec command at that file, or you can reference it from your config file with the flagsurl option. For example:
       runspec --config=myconfig --flagsurl=http://www.spec.org/cpu2006/flags/sun-studio.xml int
  2. You can download the .xml flags file referenced at the bottom of any published result at www.spec.org/cpu2006. Warning: clicking on the .xml link may just confuse your web browser; it's probably better to use whatever methods your browser provides to download a file without viewing it - for example, control-click in Safari, right click in Internet Explorer. Then, look at it with a text editor.
  3. You can write your own flags file by following the instructions in flag-description.html.

Notice that you do not need to re-run your tests if the only problem was Unknown flags. You can just use runspec --rawformat --flagsurl

Results.04 q. What's all this about Submission Check -> FAILED littering my log file and my screen?

At the end of my run, why did it print something like this?

format: Submission Check -> FAILED.  Found the following errors:
        - The "hw_memory" field is invalid.
            It must contain leading digits, followed by a space,
            and a standard unit abbreviation.  Acceptable
            abbreviations are KB, MB, GB, and TB.
           The current value is "20480 Megabytes".

a. A complete, reportable result has various information filled in for readers. These fields are listed in the table of contents for config.html. If you wish to submit a result to SPEC for publication at www.spec.org/cpu2006, these fields not only have to be filled in; they also have to follow certain formats. Although you are not required to submit your result to SPEC, for convenience the tools try to tell you as much as they can about how the result should be improved if you were to submit it. In the above example, the tools would stop complaining if the field hw_memory said something like "20 GB" instead of "20480 Megabytes".

Notice that you can repair minor formatting problems such as these without doing a re-run of your tests. You are allowed to edit the rawfile, as described in utility.html.




Copyright 2006-2013 Standard Performance Evaluation Corporation

All Rights Reserved
