SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

Bull Escala PL450R+ (2100 MHz, 1 CPU)

SPECint®2006 = 12.8

CPU2006 license: 20 Test date: Jan-2007
Test sponsor: Bull SAS Hardware Availability: Feb-2006
Tested by: Bull SAS Software Availability: Dec-2006

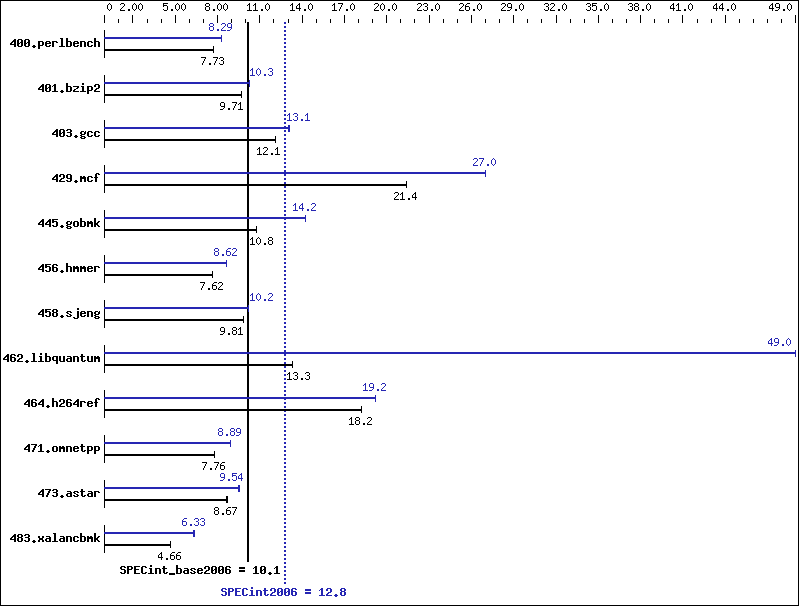

Benchmark results graph
Hardware
CPU Name: POWER5+
CPU Characteristics:
CPU MHz: 2100
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 1920 KB I+D on chip per chip
L3 Cache: 36 MB I+D off chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB)
Disk Subsystem: 2x73 GB SCSI, 15K RPM
Other Hardware: None
Software
Operating System: AIX 5L V5.3
Compiler: XL C/C++ Enterprise Edition Version 8.0 for AIX
with the December 2006 PTF
XL Fortran Enterprise Edition Version 10.1 for AIX
with the November 2006 PTF
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: ESSL 4.2.0.4

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 1266 7.72 1264 7.73 1264 7.73 1179 8.29 1175 8.31 1179 8.28
401.bzip2 994 9.71 994 9.71 994 9.71 937 10.3  938 10.3  938 10.3
403.gcc 666 12.1  666 12.1  666 12.1  616 13.1  616 13.1  616 13.1
429.mcf 426 21.4  426 21.4  426 21.4  338 27.0  338 27.0  338 27.0
445.gobmk 972 10.8  972 10.8  972 10.8  737 14.2  736 14.2  736 14.2
456.hmmer 1225 7.62 1226 7.61 1225 7.62 1083 8.62 1083 8.62 1082 8.62
458.sjeng 1233 9.81 1233 9.81 1233 9.81 1188 10.2  1188 10.2  1188 10.2
462.libquantum 1555 13.3  1554 13.3  1555 13.3  423 49.0  423 49.0  423 49.0
464.h264ref 1217 18.2  1216 18.2  1217 18.2  1154 19.2  1153 19.2  1154 19.2
471.omnetpp 806 7.76 805 7.76 806 7.76 703 8.89 703 8.89 703 8.89
473.astar 810 8.67 810 8.66 810 8.67 739 9.51 736 9.54 736 9.54
483.xalancbmk 1484 4.65 1481 4.66 1482 4.66 1091 6.32 1090 6.33 1089 6.34

Operating System Notes


 ulimits set to unlimited


 Large page mode was set as follows:
 vmo -r -o lgpg_regions=800 -o lgpg_size=16777216
 3 cores were deconfigured and SMT disabled using the AIX commands
 smtctl -m off -w boot
 bosboot -aD
 shutdown -rF
 drmgr -r -c cpu
 drmgr -r -c cpu
 drmgr -r -c cpu

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Base Optimization Flags

C benchmarks:

 -qlanglvl=extc99   -O4   -qlargepage   -D_ILS_MACROS   -qalloca   -qipa=noobject   -blpdata   -qipa=threads

C++ benchmarks:

 -O4   -qlargepage   -D_ILS_MACROS   -qrtti=all   -qipa=noobject   -blpdata   -qipa=threads

Base Other Flags

C benchmarks:

 -bmaxdata:0x50000000   -qalias=noansi   -qsuppress=1500-036

C++ benchmarks:

 -bmaxdata:0x20000000   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
401.bzip2:  Same as 400.perlbench
403.gcc:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qalloca   -qipa=noobject   -blpdata   -qipa=threads
429.mcf:  -qlanglvl=extc99   -O5   -qlargepage   -D_ILS_MACROS   -qarch=pwr4   -qipa=noobject   -blpdata   -qipa=threads
445.gobmk:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
456.hmmer:  -qlanglvl=extc99   -O4   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
458.sjeng:  Same as 445.gobmk
462.libquantum:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -q64   -qipa=noobject   -blpdata   -qipa=threads
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

471.omnetpp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -qrtti=all   -D__IBM_FAST_VECTOR   -qipa=noobject   -blpdata   -qipa=threads
473.astar:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -D__IBM_ENABLE_POOLED_ALLOCATORS__   -qipa=noobject   -blpdata   -qipa=threads
483.xalancbmk:  Same as 473.astar

Peak Other Flags

C benchmarks (except as noted below):

 -qfdpr   -qsuppress=1500-036
400.perlbench:  -bmaxdata:0x50000000   -qalias=noansi   -qsuppress=1500-036
401.bzip2:  -bmaxdata:0x50000000   -qsuppress=1500-036
403.gcc:  -bmaxdata:0x50000000   -qsuppress=1500-036
429.mcf:  -bmaxdata:0x50000000   -qfdpr   -qsuppress=1500-036
458.sjeng:  -qsuppress=1500-036
464.h264ref:  -qsuppress=1500-036

C++ benchmarks:

 -bmaxdata:0x20000000   -qsuppress=1500-036

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.15.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.15.xml.
