SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Itautec

Servidor Itautec MX201 (Intel Xeon X5460)

CPU2006 license: 9001 Test date: Mar-2008
Test sponsor: Itautec Hardware Availability: Dec-2007
Tested by: Itautec Software Availability: Jan-2008

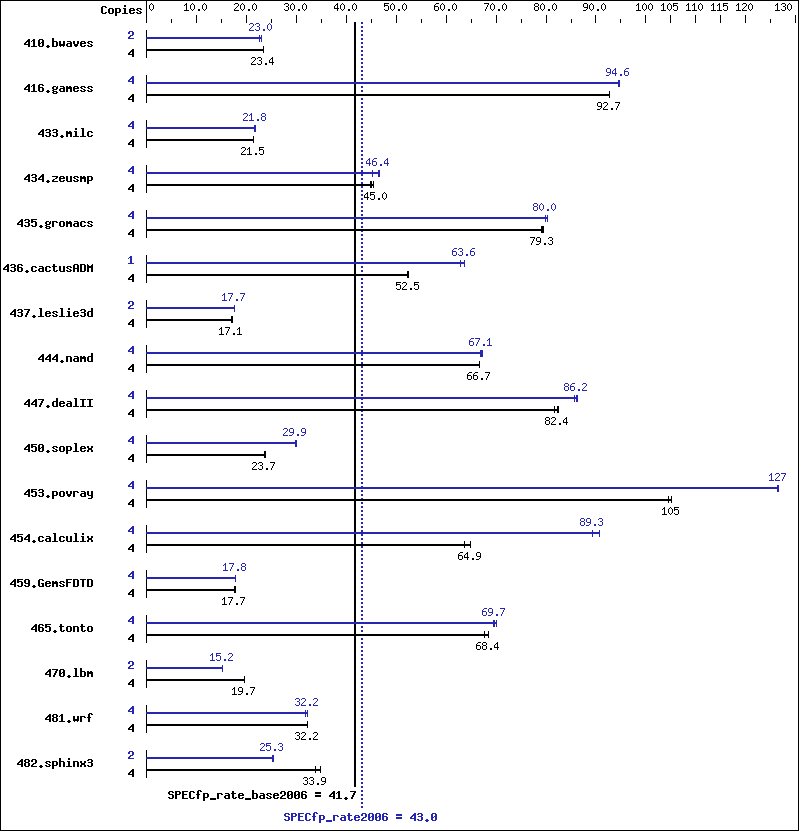

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5460
CPU Characteristics:
CPU MHz: 3160
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 * 2 GB PC2-5300 FBDIMM, CL-5-5-5, ECC)
Disk Subsystem: 1 x SCSI, 73GB, 15000 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler 10.1 for Linux
Build 20080112 Package ID: l_cc_p_10.1.012,
l_fc_p_10.1.012
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.17.10.50

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2327 23.4 2323 23.4 2325 23.4 2 1182 23.0 1196 22.7 1183 23.0
416.gamess 4 844 92.7 845 92.7 845 92.7 4 829 94.5 828 94.6 827 94.7
433.milc 4 1710 21.5 1710 21.5 1709 21.5 4 1692 21.7 1688 21.8 1688 21.8
434.zeusmp 4 810 44.9 801 45.4 809 45.0 4 784 46.4 804 45.3 779 46.7
435.gromacs 4 360 79.3 361 79.1 360 79.4 4 356 80.2 357 80.0 357 79.9
436.cactusADM 4 911 52.5 913 52.3 910 52.5 1 188 63.6 188 63.6 190 62.9
437.leslie3d 4 2196 17.1 2203 17.1 2215 17.0 2 1064 17.7 1064 17.7 1063 17.7
444.namd 4 481 66.7 481 66.6 481 66.8 4 478 67.1 479 67.0 477 67.2
447.dealII 4 560 81.8 555 82.4 554 82.6 4 531 86.2 531 86.2 534 85.6
450.soplex 4 1408 23.7 1405 23.7 1411 23.6 4 1114 29.9 1116 29.9 1115 29.9
453.povray 4 202 105   204 105   202 105   4 168 127   168 126   168 127
454.calculix 4 509 64.9 518 63.7 509 64.9 4 364 90.8 370 89.2 370 89.3
459.GemsFDTD 4 2396 17.7 2398 17.7 2394 17.7 4 2387 17.8 2387 17.8 2394 17.7
465.tonto 4 575 68.4 575 68.4 582 67.7 4 561 70.1 564 69.7 566 69.5
470.lbm 4 2798 19.6 2797 19.7 2796 19.7 2 1803 15.2 1803 15.2 1802 15.2
481.wrf 4 1386 32.2 1384 32.3 1388 32.2 4 1386 32.2 1389 32.2 1401 31.9
482.sphinx3 4 2308 33.8 2239 34.8 2300 33.9 2 1543 25.3 1548 25.2 1539 25.3

Compiler Invocation Notes

   OMP_NUM_THREADS set to number of cores
   KMP_STACK_SIZE set to 64M
   KMP_AFFINITY set to physical,0

Operating System Notes

  'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run.
  '/usr/bin/taskset' used to bind benchmark copies to processors.

Platform Notes

  BIOS configuration:
  Hardware Prefetch Disabled

General Notes

 This result was measured on the Servidor Itautec MX201.
 The Servidor Itautec MX201 and the Servidor Itautec MX221 are electronically equivalent.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.012/bin/icc   -L/opt/intel/cc/10.1.012/lib   -I/opt/intel/cc/10.1.012/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.012/bin/icpc   -L/opt/intel/cc/10.1.012/lib   -I/opt/intel/cc/10.1.012/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.012/bin/ifort   -L/opt/intel/fc/10.1.012/lib   -I/opt/intel/fc/10.1.012/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Itautec-ic10.1-FP-intel64-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Itautec-ic10.1-FP-intel64-linux-flags.xml.
