SPEC® CFP2006 Result

IBM Corporation

IBM System x3755 (AMD Opteron 8350)

SPECfp®2006 = 12.6

SPECfp_base2006 = 11.2

CPU2006 license:	11	Test date:	Jun-2008
Test sponsor:	IBM Corporation	Hardware Availability:	Jul-2008
Tested by:	Advanced Micro Devices	Software Availability:	Jun-2008

Hardware
CPU Name:	AMD Opteron 8350
CPU Characteristics:
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	16 cores, 4 chips, 4 cores/chip
CPU(s) orderable:	1,2,3,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (16 x 2 GB, DDR2-667 CL5 Reg Dual Rank)
Disk Subsystem:	1 x 73.4 GB SAS, 15000 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.2
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

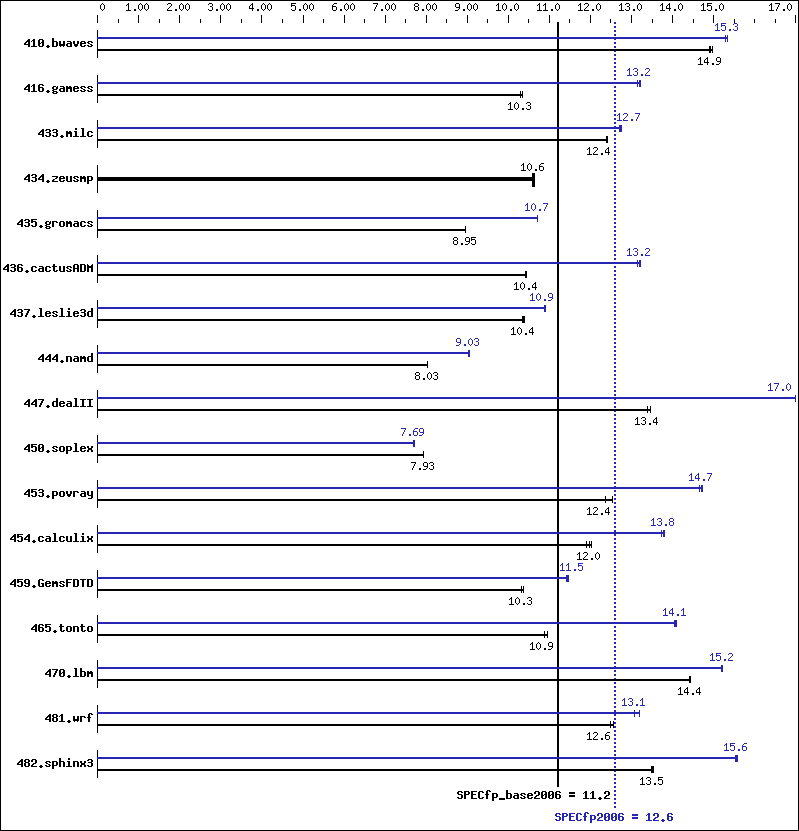

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	910	14.9	912	14.9	907	15.0	889	15.3	886	15.3	886	15.3
416.gamess	1903	10.3	1900	10.3	1890	10.4	1485	13.2	1482	13.2	1490	13.1
433.milc	739	12.4	740	12.4	740	12.4	720	12.7	722	12.7	721	12.7
434.zeusmp	856	10.6	856	10.6	859	10.6	856	10.6	856	10.6	859	10.6
435.gromacs	797	8.96	798	8.95	798	8.95	667	10.7	666	10.7	667	10.7
436.cactusADM	1145	10.4	1144	10.4	1148	10.4	904	13.2	909	13.1	906	13.2
437.leslie3d	908	10.3	904	10.4	907	10.4	862	10.9	864	10.9	864	10.9
444.namd	1000	8.02	998	8.04	998	8.03	888	9.03	886	9.05	888	9.03
447.dealII	850	13.5	855	13.4	854	13.4	673	17.0	673	17.0	674	17.0
450.soplex	1050	7.94	1052	7.93	1051	7.93	1081	7.72	1085	7.69	1084	7.69
453.povray	430	12.4	431	12.4	424	12.5	363	14.6	361	14.7	362	14.7
454.calculix	692	11.9	686	12.0	688	12.0	598	13.8	599	13.8	601	13.7
459.GemsFDTD	1029	10.3	1029	10.3	1024	10.4	926	11.5	926	11.5	928	11.4
465.tonto	899	10.9	898	11.0	904	10.9	700	14.1	700	14.1	698	14.1
470.lbm	953	14.4	952	14.4	952	14.4	902	15.2	904	15.2	902	15.2
481.wrf	894	12.5	890	12.6	890	12.6	847	13.2	854	13.1	854	13.1
482.sphinx3	1446	13.5	1443	13.5	1439	13.5	1250	15.6	1256	15.5	1252	15.6

Operating System Notes

 'numactl' was used to bind copies to the cores
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit
 Environment variable PGI_HUGE_PAGES set to 896
 Set vm/nr_hugepages=3584 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages
 powersave -f was used to set the CPU frequency to its maximum.

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

Base Other Flags

C benchmarks:

-Mipa=jobs:4

C++ benchmarks:

-Mipa=jobs:4

Fortran benchmarks:

-Mipa=jobs:4

Benchmarks using both Fortran and C:

-Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pgcc
470.lbm:	pathcc

C++ benchmarks (except as noted below):

	pathCC
444.namd:	pgcpp

Fortran benchmarks (except as noted below):

	pgf95
416.gamess:	pathf95
459.GemsFDTD:	pathf95
465.tonto:	pathf95

Benchmarks using both Fortran and C (except as noted below):

	pgcc pgf95
436.cactusADM:	pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-fastsse -Msmartalloc=huge:150 -Msafeptr -Mfprelaxed -Mipa=inline -Mipa=arg -Mipa=const -Mipa=ptr -Mipa=shape -tp barcelona-64 -Bstatic_pgi
470.lbm:	-march=barcelona -Ofast -CG:sse_cse_regs=0 -CG:locs_shallow_depth=1 -m3dnow
482.sphinx3:	-Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Mfprelaxed -Msmartalloc -tp barcelona-64 -Bstatic_pgi

C++ benchmarks:

444.namd:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Munroll=n:4 -Munroll=m:8 -Msmartalloc=huge:150 -Mnodepchk -Mfprelaxed --zc_eh -tp barcelona-64 -Bstatic_pgi
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -fno-exceptions -m32
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -TENV:frame_pointer=off -LNO:prefetch=1 -OPT:malloc_alg=1 -CG:load_exe=0 -m32
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast

Fortran benchmarks:

410.bwaves:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Msmartalloc -Mprefetch=distance:12 -Mprefetch=nta -Mpre -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	basepeak = yes
437.leslie3d:	-Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Mvect=fuse -Msmartalloc=huge:150 -Mprefetch=distance:8 -Mprefetch=t0 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
459.GemsFDTD:	-march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -LNO:prefetch_ahead=1 -CG:load_exe=0
465.tonto:	-march=barcelona -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:	-fastsse -Msmartalloc=huge:150 -Mfprelaxed -Mfpapprox=rsqrt -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
436.cactusADM:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:blocking=off
454.calculix:	-Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -fastsse -Msmartalloc=huge:150 -Mprefetch=t0 -Mpre -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
481.wrf:	-fastsse -Mvect=noaltcode -Msmartalloc -Mprefetch=distance:8 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi

Peak Other Flags

C benchmarks (except as noted below):

	-Mipa=jobs:4(pass 2)
470.lbm:	No flags used

C++ benchmarks:

444.namd:

-Mipa=jobs:4(pass 2)

Fortran benchmarks (except as noted below):

	-Mipa=jobs:4(pass 2)
416.gamess:	No flags used
459.GemsFDTD:	No flags used
465.tonto:	No flags used

Benchmarks using both Fortran and C (except as noted below):

	-Mipa=jobs:4(pass 2)
436.cactusADM:	No flags used
481.wrf:	No flags used

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd421GH-flags.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd421GH-flags.20090713.00.xml.
