| CPU2006 license: | 6 | Test date: | Dec-2011 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Jun-2011 |
| Tested by: | Oracle Corporation | Software Availability: | Oct-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4820 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.27 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 18 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (64 x 4 GB 2Rx8 PC3L-10600R-9, ECC) |
| Disk Subsystem: | 3 x 300 GB, SATA, 7200 RPM, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Oracle Linux 6.1 kernel 2.6.32-100.34.1.el6uek.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.0.225 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Run level 5 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

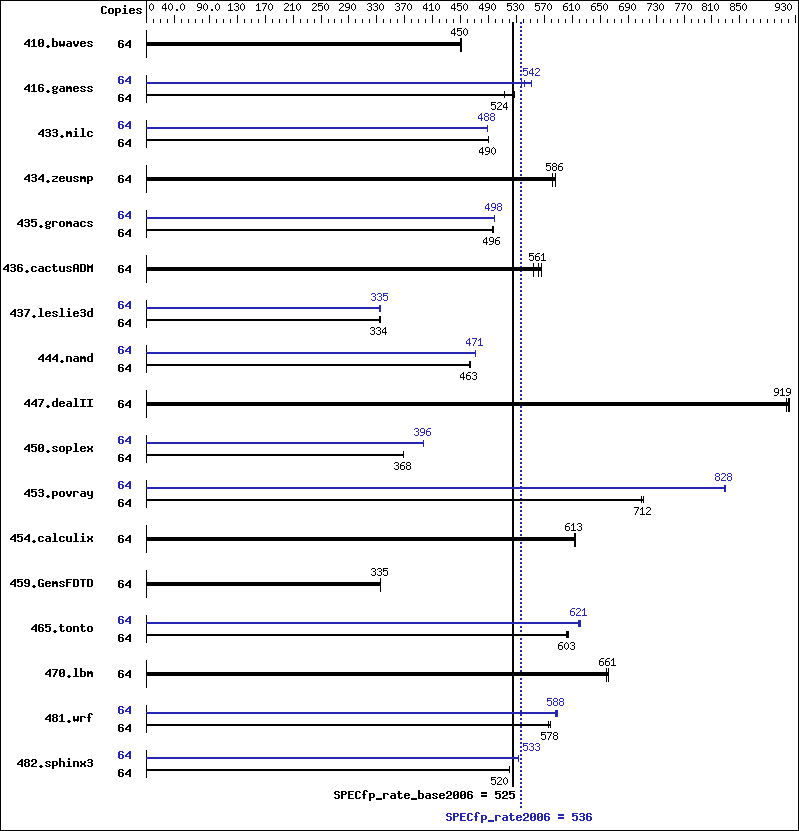

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 64 | 1926 | 451 | 1932 | 450 | 1932 | 450 | 64 | 1926 | 451 | 1932 | 450 | 1932 | 450 |
| 416.gamess | 64 | 2380 | 526 | 2392 | 524 | 2441 | 513 | 64 | 2312 | 542 | 2272 | 552 | 2336 | 536 |
| 433.milc | 64 | 1200 | 490 | 1199 | 490 | 1200 | 490 | 64 | 1204 | 488 | 1203 | 488 | 1203 | 488 |
| 434.zeusmp | 64 | 994 | 586 | 995 | 586 | 1002 | 581 | 64 | 994 | 586 | 995 | 586 | 1002 | 581 |
| 435.gromacs | 64 | 920 | 497 | 921 | 496 | 923 | 495 | 64 | 918 | 498 | 917 | 498 | 917 | 498 |
| 436.cactusADM | 64 | 1363 | 561 | 1379 | 555 | 1350 | 566 | 64 | 1363 | 561 | 1379 | 555 | 1350 | 566 |
| 437.leslie3d | 64 | 1799 | 334 | 1800 | 334 | 1801 | 334 | 64 | 1798 | 335 | 1802 | 334 | 1798 | 335 |
| 444.namd | 64 | 1109 | 463 | 1108 | 463 | 1105 | 465 | 64 | 1090 | 471 | 1089 | 471 | 1088 | 472 |
| 447.dealII | 64 | 795 | 920 | 799 | 917 | 796 | 919 | 64 | 795 | 920 | 799 | 917 | 796 | 919 |
| 450.soplex | 64 | 1450 | 368 | 1451 | 368 | 1449 | 368 | 64 | 1346 | 396 | 1346 | 396 | 1347 | 396 |
| 453.povray | 64 | 480 | 710 | 478 | 712 | 478 | 712 | 64 | 411 | 828 | 411 | 829 | 411 | 828 |
| 454.calculix | 64 | 859 | 615 | 861 | 613 | 861 | 613 | 64 | 859 | 615 | 861 | 613 | 861 | 613 |
| 459.GemsFDTD | 64 | 2027 | 335 | 2030 | 335 | 2030 | 335 | 64 | 2027 | 335 | 2030 | 335 | 2030 | 335 |
| 465.tonto | 64 | 1044 | 603 | 1042 | 604 | 1047 | 601 | 64 | 1017 | 619 | 1014 | 621 | 1015 | 621 |
| 470.lbm | 64 | 1330 | 661 | 1330 | 661 | 1334 | 659 | 64 | 1330 | 661 | 1330 | 661 | 1334 | 659 |
| 481.wrf | 64 | 1242 | 575 | 1235 | 579 | 1236 | 578 | 64 | 1215 | 588 | 1216 | 588 | 1219 | 587 |
| 482.sphinx3 | 64 | 2398 | 520 | 2399 | 520 | 2402 | 519 | 64 | 2339 | 533 | 2340 | 533 | 2339 | 533 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Platform Notes
Default BIOS Settings were used. Oracle's Sun Fire X4470 M2 is now known as the Sun Server X2-4.
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/data1/cpu2006v1.2/libs/32:/data1/cpu2006v1.2/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Fortran benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
Benchmarks using both Fortran and C:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 482.sphinx3: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 450.soplex: | icpc -m32 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-mem-layout-trans=3 -unroll2 |
C++ benchmarks:
| 444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
| 453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -static -auto-ilp32 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
