SPEC CPU2017 Flag Description Files

$Id: flag-description.html 5969 2018-05-18 14:12:04Z JohnHenning $ Latest: www.spec.org/cpu2017/Docs/

ABSTRACT
This document describes the SPEC CPU2017 flags description file format.


Element order, from below:

flag DTD summary

Quick links:

  • User flags files are of two kinds: compiler flags files and platform flags files.
  • Some elements are allowed to appear in both compiler and platform flags files; some can only appear in one of them; click diagram for details.
  • Notice that some elements can appear in either file. Given a choice, which should you use? See guidelines.

Contents

Purpose

1 File Types, Usage, and Reporting

1.1 Flag File Types

1.2 Flag file usage

1.2.1 Required and optional user flags files

1.2.2 Including a file

1.2.3 Re-use is encouraged

1.2.4 Adding, removing, updating flags files

1.2.5 Which options for which flags file?

1.3 Reporting

1.3.1 Flags dump (HTML version all flags)

1.3.2 Per-result flags report

1.4 Example flags files

2 Flags file structure

2.1 Syntax basics

2.1.1 Tags, elements, and attributes

2.1.2 Enclosing tags and DTD

2.1.3 HTML comments are supported

2.1.4 Regarding embedded HTML

2.1.5 Element order

2.2 Common elements

2.2.1 Suggested filename (mandatory)

2.2.2 Title (mandatory)

2.2.3 Style sheet

2.2.4 Submit command

2.2.5 Software environment

2.3 Compiler flags file elements

2.3.1 FDO settings

2.3.2 Header (top level)

2.3.3 Headers for each class

2.3.4 Named Flags

2.4 Platform flags file elements

2.4.1 OS tuning

2.4.2 Virtual machine settings

2.4.3 Firmware settings

2.4.4 Parts and options

3 Flag Description Elements and Attributes

3.1 Flag name (mandatory)

3.2 Flag class (mandatory)

3.2.1 "mandatory" class

3.2.2 "forbidden" class

3.2.3 "portability" class

3.2.4 "optimization" class

3.2.5 "compiler" class

3.2.6 "other" class

3.2.7 "unknown" class

3.3 Regular expression (mandatory, but defaulted)

3.3.1 Default regular expression

3.3.2 Full Perl regular expressions may be used

3.3.3 Substituting captured text

3.3.4 When \b won't work

3.3.5 Regular expression references

3.4 Descriptive text (mandatory)

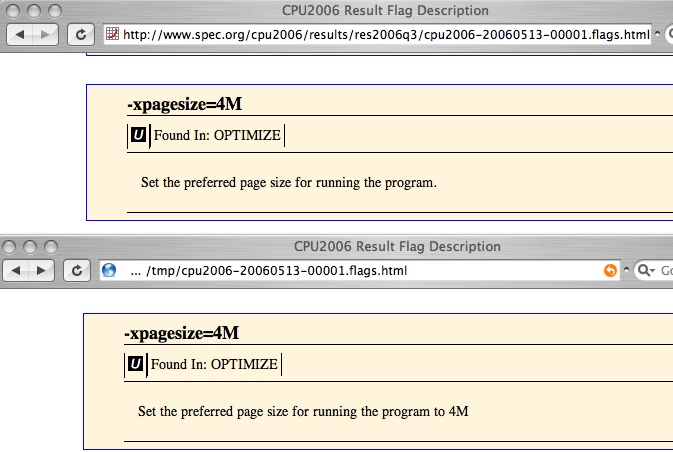

3.4.1 Example: update descriptive text with rawformat

3.5 Including other flags

3.5.1 Include by "flag" attribute

3.5.2 Include by "text" attribute

3.5.3 Splitters

3.6 List of compilers

3.7 Example flag text

3.8 Example replacements

3.9 Controlling flag display

3.10 Indication of parallelism

3.11 Other attributes

4 Other elements

5 Precedence

6 Best Practices

Purpose

This document describes how to write XML flag description files for use by SPEC CPU2017.

SPEC CPU2017 provides benchmarks in source code form, which are compiled under control of SPEC's toolset. Compiler flags are reported with the help of flag description files. For each flag, they provide:

Flags description files are not limited to compiler flags. They also describe other performance-relevant options.

It is assumed that the reader has at least some familiarity with HTML. Familiarity with XML is not essential, but may be helpful.


1. File Types, Usage, and Reporting

1.1 Flag File Types

Flag description files are supplied by SPEC or by benchmark users.

SPEC supplies these:

If SPEC should need to update flags files that it supplies, they will be posted at the SPEC web site. You can update your copies using runcpu --update.

User flags files are of two types:

For more information about which items to put into which flags file type, please see section 1.2.5.

1.2 Flag file usage

1.2.1 Required and optional user flags files

1.2.2 Including a file

User flag description files may be included via the config file (by the flagsurl variable) or via the runcpu command line --flagsurl switch. Each file's location may be specified as either a path on the local file system or as a file:// or http:// URL. HTTPS is not supported.

In particular, your config file or runcpu command can re-use a previous flags file by picking it up directly from http://www.spec.org/cpu2017/flags/.

1.2.3 Re-use is encouraged

Flags Files Are Reusable - and they should be re-used. When multiple results use the same compiler, they can, and probably should, use the same compiler flags file. When a series of hardware products share a common BIOS, they can, and probably should, share a single platform file that describes that BIOS. Re-using flags files allows edits to be propagated to multiple affected result pages.

Making it easier to re-use flags files is the point of the requirement to separate compiler and platform flags. The intent is that items which tend to change together should be described together; and things that change on separate schedules should be separated.

1.2.4 Adding, removing, updating flags files

User flag descriptions are automatically saved within the raw result file so that the result may be reformatted without requiring access to the flags file.

You can use extract_flags to copy the flags from a result file to a new file.

The flag descriptions stored in the raw file will be removed if the result is formatted with the 'noflags' pseudo-flags file (--flagsurl noflags).

The stored flag descriptions can be updated: if you use

runcpu --rawformat  --flagsurl=newflags1.xml,newflags2.xml

then the above-named two flag description files will replace any descriptions stored in the raw result file. This feature can come in very handy if you need to update your user flags file after you have completed your measurement run. For example, if a flag changes its meaning with a new compiler version, or you find that you have committed typographical errors that cause flags to unexpectedly be reported as "unknown", runcpu --rawformat can easily be rerun as needed.

Note that when reformatting with a new user flags file, all of the stored flags files will be replaced. If multiple flags files were used when formatting a result, it is not possible to selectively replace only one. Instead, extract all of them; make your edits; and then put them all back in with rawformat.

An example of using rawformat to update a flags file can be found in section 3.4.1.

1.2.5 Which options for which flags file?

Some options may be described in either a compiler flags file or a platform flags file. This section explains why SPEC allows that flexibility, and explains how to pick which file type to use. First, a reminder:

The intent of the separation of compiler flags from platform flags is to improve the probability that things which tend to change together are described together, and that things which tend to change separately are described separately.

For some kinds of information, the placement is obvious. For example:

  1. An f90 compiler uses --optimize. Describe it in a compiler flags file.
  2. A firmware or BIOS setting selects main memory speed. Describe it in a platform flags file.
  3. A shell command ulimit is needed to compile the benchmarks. Describe it in the compiler flags file.

So far, these examples are straightforward. Some options are harder to classify:

  1. A run time environment variable OMP_NUM_THREADS is closely tied to a compiler option --openmp.
  2. CPU cores are selected at run time by a numactl command.

For Example 4 you could pick either choice, with a slight preference for the compiler flags file because this run-time option is closely related to a compile-time option. If you set it by the config file options env_vars or preenv, the relationship becomes stronger, as does the preference.

For Example 5 you could pick either choice: numactl is clearly a runtime setting, however, it may be called via the config file option submit, and its usage might be developed by the same person who develops the compile tuning options. Therefore you might find it more convenient to use the compiler flags file, and this is allowed.

Having considered these examples, we are ready to describe a set of guidelines.

Table 1: Guidelines for placement of descriptions.
If an option can be described in multiple places, SPEC recommends choosing the location using these criteria:
A Result pages should state what tuning is chosen.
B Flag description files should describe what the tuning means.
C If the tuning is required in order to build the benchmarks, then describe it in a compiler flags file.
D If the tuning relates to the run-time environment and is invisible to the build process (even after considering config file features such as preenv and submit), then describe it in a platform flags file.
E For options that do not fit either of the previous two guidelines, please estimate whether it is likely to change as compilers evolve or to change as platforms evolve, and pick the file accordingly.

1.3 Reporting

Flag description files affect all reports, which draw on the flags description files in order to correctly classify flags as optimization, portability, and so forth. There are two types of HTML flags outputs.

1.3.1 Flags dump (HTML version all flags)

A "flags dump" can be generated by flag_dump (see utility.html). A flags dump is an HTML version of all the flags from an XML flags description file.

1.3.2 Per-result flags report

A "per-result flags report", such as CPU2017.505.fprate.flags.html, is generated by runcpu --output_format flags (see runcpu.html). A per-result flags report includes descriptions only for the flags that were used in that particular test.

Per-result flags reports can be regenerated using runcpu --rawformat.

An example of using rawformat to update a flags file can be found in section 3.4.1.

1.4 Example flags files

You will find several examples on your installed copy of SPEC CPU2017 in $SPEC/config/flags (Unix) or %SPEC%\config\flags (Windows). The example flags file for GCC is a real, working example which has been annotated and cross-referenced to this document. You might want to copy it, and bring it up in a program such as notepad; or (as shown below), you could edit it using vim -R, where the "-R" indicates read-only mode.

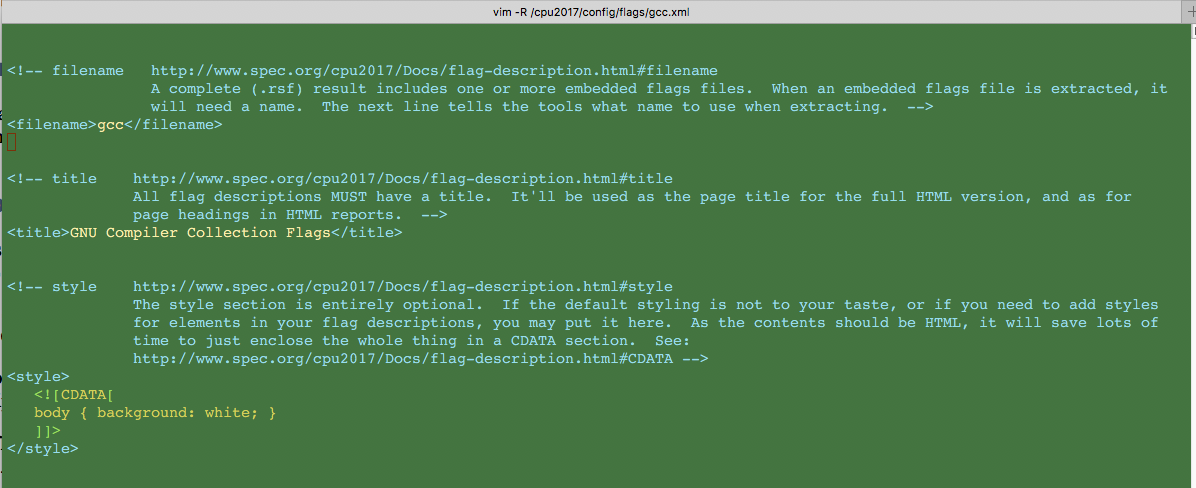

using editor to look at example xml

In addition, there are many flags files at the SPEC web site that have been posted with published results. You can find them as shown in the figure below.

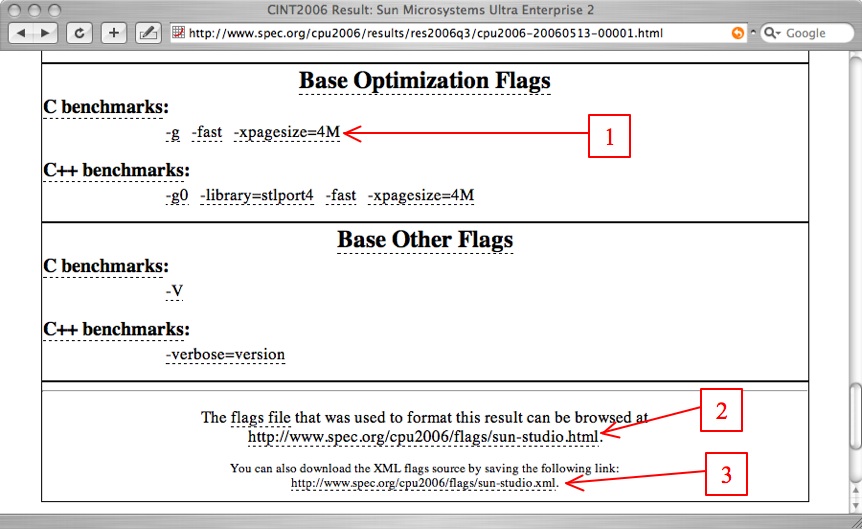

screenshot of CPU2006 result 0001
Figure 1: How to find example flags files at www.spec.org


2. Flags file structure

As you read this description, you may find it useful to refer to the examples, as mentioned above.

2.1 Syntax basics

A few basic XML concepts are introduced in here. The definitive source for XML is www.w3.org. You can find more basic descriptions by searching the web for 'XML Introduction'.

2.1.1 Tags, elements, and attributes

First, some terminology. Consider:

<title>Flag descriptions for ACME Compiler 12.2</title>

<flag name="rounding"
      class="optimization"
      regexp="-round\b">

   <include text="-lfastmath" />

   Allow mathematical operations to complete more quickly, with a slight
   loss of accuracy.  Specifically, on some operations, the bottom
   digit may not be correctly rounded.

</flag>

In XML terminology, the words in between angle brackets above are called tags, and the tags delimit elements. Notice that most elements have surrounding tag pairs. For example, the title element begins with start tag <title> and ends with </title>.

A tag can also be self-closing, or empty, as in the include tag above. Notice that there is no </include> tag above; rather, there is only a single tag, which ends with "/>".

An element may contain other elements. For example, the <flag> and </flag> tags delimit a multi-line element that contains an <include> element.

A tag may have one or more attributes, which are name=value pairs in the tag. Although the <include> tag above is termed empty (or self-closing), it nevertheless has an attribute, text="-lfastmath", which causes the inclusion of the description for the fast math library.

2.1.2 Enclosing tags and DTD

A flags description file is an XML 1.0 file that conforms to the SPEC CPU flags description Document Type Definition (DTD).

The first lines of the flags file must be

<?xml version="1.0"?>
<!DOCTYPE flagsdescription
   SYSTEM "http://www.spec.org/dtd/cpuflags2.dtd"
>
<flagsdescription>

Please note that the dtd version is cpuflags2.dtd, not cpuflags1.dtd.

As you might expect, the file must end with a line that is simply

</flagsdescription>

The first three lines claim that your document is an XML document that conforms to a specific DTD. Can you prove that? Yes, for example with RXP, a validating XML parser, which is included with SPEC CPU2017 as "specrxp". See topic "specrxp" in utility.html.

2.1.3 HTML comments are supported

Standard HTML-style comments are supported. It is suggested that you use comments near the top of the file to describe its purpose, the system to which it applies, etc. These comments must NOT come before the DOCTYPE declaration. For example:

  <!-- ACME Compiler 12.2 Flags.
      Originally written for V1.0 by Aaron (chairman of the Committee on Engrossed Bills)
      and updated subsequently to V12.2.
  -->

2.1.4 Regarding embedded HTML

A flags description file is an XML document. Flag descriptions commonly include HTML. However, embedding HTML within XML poses a challenge, because XML parsers are promised that ampersand (&) and left angle bracket (<) do not appear unless used as XML markup. The solution is to hide embedded HTML by enclosing it within CDATA sections. (Alternatively, individual brackets could be escaped one at a time, but this is not recommended.)

A CDATA section begins with

<![CDATA[

and ends with

]]>

Any text between the start and end tags will not be touched by the XML parser. Of course, the CDATA end tag may not appear unescaped in the enclosed text.

For example:

<header><![CDATA[
<p>This is an <i>ACME Corporation</i> flags description.</p>
<p>Please read it.</p>
]]></header>

SPEC CPU2017 reports are compliant with the XHTML 1.0 Strict standard. Care should be taken that any HTML markup used does not cause reports to become invalid or not well-formed. There is an on-line validator which may be used to check those elements. Because the flag descriptions for a per-result flags report have the same markup as in the flag dump, validating the flags dump (as generated by flag_dump) will ensure that per-result flags reports are also valid.

For convenience, flag descriptions that do not include any HTML will have <p>...</p> added to them. For example:

<flag name="F-fstrength-reduce" class="optimization">
      <![CDATA[
      <p>Perform the optimizations of loop strength reduction and elimination of
      iteration variables.</p>
      ]]>
</flag>

could also be said as:

<flag name="F-fstrength-reduce" class="optimization">
      Perform the optimizations of loop strength reduction and elimination of
      iteration variables.
</flag>

Automatic addition of <p>...</p> is the only HTML that gets added automatically; otherwise, you're on your own for writing valid HTML. If you do write any of your own HTML, <p>...</p> is not added, because the paragraph tags might interfere with whatever else you had set out to do. In fact, if you include any left or right angle brackets (whether for HTML or just because you'd like to say that "3 > 2"), the automatic addition of <p>...</p> does not occur.

2.1.5 Element order

The DTD specifies a strict order for elements described in this chapter. When you use any of these elements, they must appear in the correct order.

Some elements, labeled "common" below, may appear in any flags file. Others may appear only a compiler flags file or only in a platform flags file. The sections below explain what the expected contents are for each element.

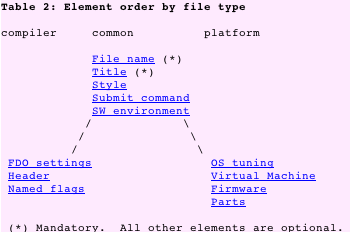

Table 2: Element order by file type

compiler     common          platform

             File name (*)
             Title (*)
             Style
             Submit command
             SW environment
            /             \
           /               \
          /                 \
 FDO settings                 OS tuning
 Header                       Virtual Machine
 Named flags                  Firmware
                              Parts

 (*) Mandatory.  All other elements are optional.

2.2 Common elements

The elements described in this section may appear in both compiler flags files and in platform flags files.

2.2.1 Suggested filename (mandatory)

There are times when the flag file moves around without a filename, such as when it is enclosed in a raw result file.

In order to make it possible to extract the file and automatically save it with a useful name, the <filename>...</filename> element may be used to suggest the base of a filename.

For example, this suggests that the filename begin with "ACME-12.2":

<filename>ACME-12.2</filename>

The filename may consist of alphanumeric characters, periods, underscores, and hyphens. If present, other characters will be converted to underscores.

Because this is meant to be the base of a filename, any '.xml' or '.html' extensions will be automatically and silently stripped.

There is no guarantee that all tools which might save a copy of the flags file will use the contents of this element. It is only a "suggestion".

A filename element must be provided with all flags files.

2.2.2 Title (mandatory)

Using the <title>...</title> element, you can define text which will be used to form the HTML page title for a flags dump (commonly seen as the window title for the browser). This text is also used as the initial header on the page.

The <title> element is not used for results reporting; it is only used when dumping the flags to an HTML file.

Because it is used in the page title, this element must not contain any HTML markup.

For example:

<title>GNU Compiler Collection Flags</title>

A title element must be provided with all flags files.

2.2.3 Style sheet

SPEC CPU2017 reports use structural HTML with presentation controlled by CSS. Most discrete elements are identified by a class or an ID (or both) so that they can be styled with a great degree of control. There is a common style sheet, as well as style sheets containing tweaks for screen output and for print output. They contain code to handle everything that the tools output by default.

If you'd like to define some classes for use in your own markup, or if you'd like to override some of the default CSS, you may do so by using the <style>...</style> element. Doing so will affect both per-result flags reports and the flags dump.

As mentioned above, because the flag description file is parsed as XML, some things in the CSS (such as left angle brackets) must be escaped. It is easiest to just enclose all of the CSS in a CDATA section.

For example:

<style><![CDATA[
body { background: white; }
]]></style>

2.2.4 Submit command

The <submit_command>...</submit_command> element may be used to describe settings, programs, or scripts used in conjunction with the config file submit option. If a script is used to handle submissions, the full text is typically included here.

The content of the submit_command element is inserted verbatim after the flag descriptions at the end of both the flags dump and the per-result flag report. For example:

<submit_command><![CDATA[

<p><b><tt>submit=echo 'pbind -b...' &gt; dobmk; sh dobmk</tt></b> (SPEC tools, Unix)<br />

When running multiple copies of benchmarks, <tt><b>submit</b></tt> is used to cause
individual jobs to be bound to specific threads.  Here is a brief guide to understanding
the specific command which will be found in the config file: </p>

<ul>
   <li><tt><b>echo ... &gt; dobmk</b></tt> causes the generated commands to be written
       to a file, namely <tt>dobmk</tt>.  </li>

   <li><tt><b>sh dobmk</b></tt> actually runs the benchmark.</li>

   <li><tt><b>pbind -b</b></tt> causes this copy's processes to be bound to the thread
       specified by the expression that follows it.  See the config file used in the
       submission for the exact syntax, which tends to be cumbersome because of the
       need to carefully quote parts of the expression.  When all expressions are
       evaluated, each thread ends up with exactly one copy of each benchmark.  The
       pbind expression may include:
       <ul>
            <li><tt><b>$SPECCOPYNUM</b></tt>: the SPEC tools-assigned number for this
                copy of the benchmark.  </li>

            <li><tt><b>psrinfo</b></tt>: find out what processors are available </li>

            <li><tt><b>grep on-line</b></tt>: search the <tt>psrinfo</tt> output for
                information regarding on-line cpus </li>

            <li><tt><b>expr</b></tt>: Calculate simple arithmetic expressions.  For
                example, the effect of binding jobs to a (quote-resolved) expression such
                as: <br />
                    <tt>expr ( $SPECCOPYNUM / 4 ) * 8 + ($SPECCOPYNUM % 4 ) )</tt><br />
                would be to send the jobs to processors whose numbers are: <br />
                    <tt>0,1,2,3, 8,9,10,11, 16,17,18,19 ...</tt> </li>

            <li><tt><b>awk...print \$1</b></tt>: Pick out the line corresponding to this
                copy of the benchmark and use the CPU number mentioned at the start of
                this line.  </li>

       </ul></li>

</ul>

]]></submit_command>

Notice in the example above that the flags file author has gone to some trouble to make the eventual webpage readable by the consumer of the result (by using various HTML markup), and to make the HTML source maintainable (by indenting and whitespace). Both practices are recommended.

The submit command element may appear in both compiler flags files and in platform flags files. For guidance as to which to use, please see section 1.2.5.

2.2.5 Software environment

The <sw_environment>...</sw_environment> element may be used to describe shell resources, environment variables, and other software options or installation settings.

The content of the sw_environment element is inserted verbatim after the submit_command section (if any) at the end of both the flags dump and the per-result flag report. For example:

<sw_environment><![CDATA[

 <dl>
 <dt>HUGETLB_MORECORE</dt>
 <dd>Set this environment variable to "yes" to enable applications to use
     large pages.</dd>

 <dt>LD_PRELOAD=/usr/lib64/libhugetlbfs.so</dt>
 <dd>Setting this environment variable is necessary to enable applications to
     use large pages.</dd>

 <dt>KMP_STACKSIZE</dt>
 <dd>Specify stack size to be allocated for each thread.</dd>

 <dt>KMP_AFFINITY</dt>
 <dd>
  <ul>
   <li>KMP_AFFINITY  =  &lt; physical | logical &gt;, starting-core-id <br />
       specifies the static mapping of user threads to physical cores.
       For example, if you have a system configured with 8 cores,
       OMP_NUM_THREADS=8 and KMP_AFFINITY=physical,0 then thread 0 will
       be mapped to core 0, thread 1 will be mapped to core 1, and
       so on in a round-robin fashion.</li>

   <li>KMP_AFFINITY = granularity=fine,scatter <br />
       The value for the environment variable KMP_AFFINITY affects how
       the threads from an auto-parallelized program are scheduled
       across processors. <br />

       Specifying granularity=fine selects the finest granularity level,
       causes each OpenMP thread to be bound to a single thread context.  <br />

       This ensures that there is only one thread per core on cores
       supporting HyperThreading Technology<br />

       Specifying scatter distributes the threads as evenly as possible
       across the entire system. <br />

       Hence a combination of these two options, will spread the threads
       evenly across sockets, with one thread per physical core.
       </li>
  </ul>
 </dd>
 </dl>

]]></sw_environment>

The software environment element may appear in both compiler flags files and in platform flags files. For guidance as to which to use, please see section 1.2.5.

2.3 Compiler flags file elements

2.3.1 FDO settings

The <fdo_settings>...</fdo_settings> element may be used to describe settings or programs used when doing feedback-directed optimization. This section should not be used to describe flags and settings covered by named flags. It is intended primarily to describe settings for and programs used in fdo_* options.

The content of the fdo_settings element is inserted verbatim after the submit_command section (if any) at the end of both the flags dump and the per-result flag report. For example:

<fdo_settings><![CDATA[

<p>When feedback-directed program reorganization (FDPR) is performed,
the following settings are used:</p>

<pre>
fdo_pre2   = rm -f $baseexe.nprof $baseexe.instr; fdpr -1 -q -p $baseexe
fdo_run2   = fdpr -2 -q -p $commandexe -x $command
fdo_post2  = fdpr -3 -q -O4 -p $baseexe; mv $baseexe $baseexe.orig; cp ${baseexe}.fdpr $baseexe
</pre>

<p>In brief, here is an explanation of the commands and the options used:</p>
<ol>
 <li><tt>fdo_pre2</tt> Leftover outputs in the build directory (if any) are removed</li>
 <li><tt>fdo_pre2</tt> The executable is instrumented and an initial static profile generated</li>
 <li><tt>fdo_run2</tt> The training workload is run to generate a dynamic profile</li>
 <li><tt>fdo_post2</tt> The profiles are evaluated and a new, reordered binary (<baseexe>.fdpr)
     is generated</li>
 <li><tt>fdo_post2</tt> The uninstrumented binary and the reordered binary are swapped so that
     the tools use the reordered binary for the benchmark runs.</li>
</ol>
<p>Options used for the fdpr program:</p>
<ul>
 <li><tt>-1</tt>: Phase 1 - generate static profiles</li>
 <li><tt>-2</tt>: Phase 2 - generate dynamic profiles</li>
 <li><tt>-3</tt>: Phase 3 - reorder binary</li>
 <li><tt>-q</tt>: Quiet mode - no output to stdout</li>
 <li><tt>-p &lt;program&gt;</tt>: Operate on the named binary</li>
 <li><tt>-x &lt;cmd&gt;</tt>: When generating dynamic profiles, use the following
     arguments to &lt;program&gt;</li>
 <li><tt>-O4</tt>: Switch on the following optimizations: [...etc] </li>
</ul>

]]></fdo_settings>

The FDO settings element may appear only in compiler flags files.

2.3.2 Header (top level)

Within a <header>...</header> element you can provide some HTML text that you would like to have added to reports.

The contents of this section will be inserted verbatim after the top-level header and before the start of the flag descriptions. If it is non-empty, it must be well-formed and valid XHTML 1.0. If in doubt, validate it.

For example:

<header><![CDATA[
<p>This is a flags description file for ACME Platforms using ACMEBIOS 8 firmware.</p>
<p>CPU throttling and Power Management firmware settings are described here.
</p>
]]></header>

The default header section in the user flag description file is output in both the flags dump (as generated by the flag_dump utility), and the per-result flags report.

Header settings elements may appear only in compiler flags files.

2.3.3 Headers for each class

It is possible to provide some HTML which will appear in a flags dump at the top of each class section, before the flags in that section. This text is also specified with the header element, with a "class" attribute added. Per-class header sections in the user flag description file only appear in the flags dump (as generated by the flag_dump utility); they do not appear in a per-result flags report.

For example, for general notes about optimization flags, use something like this:

<header class="optimization"><![CDATA[
<p>Some suboptions either enable or disable a feature.</p>

<p>Suboption values and their effects:</p>
<ul>
 <li>1, on, true - enable the feature</li>
 <li>0, off, false - disable the feature</li>
</ul>

<p>These values are not case sensitive.</p>
</p>
]]></header>

Header settings elements may appear only in compiler flags files.

2.3.4 Named Flags

The description of each individual flag is enclosed in <flag>...</flag> tags. Because flag recognition and reporting has many features, it is described separately in its own chapter. For now, one example will serve as an introduction:

<flag name="disable-unroll"
      class="optimization"
      regexp="-nounroll|-unroll=0" >

    <![CDATA[
      <p>Disables loop unrolling, which is an optimization where the
      compiler tries to improve performance by making multiple copies of
      loop bodies.  </p>
    ]]>

</flag>

This example describes a flag named disable-unroll. If a benchmark is compiled using either -nounroll or -unroll=0 (notice these strings in the regular expression, or regexp), then the class attribute will cause the Optimization Flags section of the report to link to the descriptive text that is provided: namely, the paragraph that begins "Disables loop..."

Named flag elements may appear only in compiler flags files.

2.4 Platform flags file elements

2.4.1 OS tuning

The <os_tuning>...</os_tuning> element may be used to describe operating system install options, boot settings, other operating system configuration settings relevant to the run.

The content of the os_tuning element is inserted verbatim after the sw_environment section (if any) at the end of both the flags dump and the per-result flag report. For example:

<os_tuning>
<![CDATA[

<p><b><kbd>autoup=<n></kbd></b> (Unix /etc/system)
<br />When the file system flush daemon <tt>fsflush</tt> runs, it writes
to disk all modified file buffers that are more than <kbd>n</kbd> seconds
old.  </p>

<p><b><kbd>psrset -c <n></kbd></b> (Unix, superuser commands)
<br /> Creates a new processor set and displays the new processor set ID.
</p>

<p><b><kbd>psrset -e <n></kbd></b> (Unix, superuser commands)
<br /> Executes a command (with optional arguments) in the specified
processor set.  The command process and any child processes are executed
only by processors in the processor set.</p>

<p><b><kbd>tune_t_fsflushr=<n></kbd></b> (Unix /etc/system)
<br /> Controls the number of seconds between runs of the file system
flush daemon, <tt>fsflush</tt>.  </p>

]]>
</os_tuning>

The OS tuning element may appear only in platform flags files.

2.4.2 Virtual Machine Settings

The <virtual_machine>...</virtual_machine> element may be used to describe settings pertaining to hypervisors, domains, partitioning, or any other virtualization technology used during the benchmark run.

The content of the virtual_machine element is inserted verbatim after the os_tuning section (if any) at the end of both the flags dump and the per-result flag report. For example:

<virtual_machine><![CDATA[

<p>The benchmark run was performed in a resource-capped container configured with
the following zonecfg(8) file:</p>
<pre>
create -b
set zonepath=/zhome/speccpu
set brand=ipkg
set autoboot=true
set limitpriv=default,dtrace_proc,dtrace_user
add dataset
set name=tank/speccpu
end
add capped-cpu
set ncpus=1
end
add capped-memory
set swap=2G
end
</pre>

]]></virtual_machine>

The virtual machine element may appear only in platform flags files.

2.4.3 Firmware settings

The <firmware>...</firmware> element may be used to describe firmware, BIOS, or microcode settings used on the system under test.

The content of the firmware element is inserted verbatim after the virtual_machine section (if any) at the end of both the flags dump and the per-result flag report. For example:

<firmware><![CDATA[

<dl>
 <dt>Hardware Prefetch:</dt>
 <dd>
  <p>This BIOS option allows the enabling/disabling of a processor mechanism
     to prefetch data into the cache according to a pattern-recognition algorithm.</p>
  <p>In some cases, setting this option to Disabled may improve performance.
     Users should only disable this option after performing application benchmarking
     to verify improved performance in their environment.</p>
 </dd>

 <dt>Adjacent Sector Prefetch:</dt>
 <dd>
  <p>This BIOS option allows the enabling/disabling of a processor mechanism
     to fetch the adjacent cache line within a 128-byte sector that contains the
     data needed due to a cache line miss.</p>
  <p>In some cases, setting this option to Disabled may improve performance.
     Users should only disable this option after performing application benchmarking
     to verify improved performance in their environment.</p>
 </dd>

 <dt>High Bandwidth:</dt>
 <dd>Enabling this option allows the chipset to defer memory transactions and
     process them out of order for optimal performance.</dd>
</dl>

]]></firmware>

The firmware element may appear only in platform flags files.

2.4.4 Parts and options

The <parts>...</parts> element may be used to describe hardware and software parts and options needed to complete the system.

The content of the parts element is inserted verbatim after the firmware section (if any) at the end of both the flags dump and the per-result flag report. For example:

<parts><![CDATA[

<p>Any case and fan combination providing at least 347 SCFM over the
   processor's thermal control gear.</p>

<p>PGUM #28-451 must be installed in order to enable large pages to
   be allocated on non-local memory boards in large memory systems.  This
   is an extra-cost option and does not come with the standard operating
   system install.</p>

]]></parts>

The parts element may appear only in platform flags files.


3. Flag Description Elements and Attributes

This chapter provides the full description for <flag> elements and attributes. A brief overview of the XML concepts of tags, elements, and attributes is available in section 2.1.

A flags file can be validated against its XML dtd. Therefore, flag details must be specified in the correct locations. Some are specified as attributes within the opening <flag ... > tag, and others are specified as standalone elements inside of the flag element. The text of the flag description itself is the text within the flag section; it is not called out by any special element or attribute name, although usually you will want to place it within a CDATA marker.

The attributes that are allowed on a flag tag are:

name (*)
class (*)
regexp (**)
compilers
parallel

(*) The name and class are mandatory.
(**) The regexp must be provided unless it is implied by a carefully chosen name.

Attributes may be specified in any order.

The elements that are allowed to be contained inside a flag element are:

example
ex_replacement
include
display
descriptive text (usually within CDATA)

Unlike top-level elements, these "child" elements of the flag element may be specified in any order.

Here is an example that contains every allowed attribute and element:

<flag name="F-Ox"
      class="optimization"
      regexp="-O(\d+)\b"
      compilers="cc,c++"
      parallel="no"
      >

    <example>-O3</example>
    <ex_replacement>3</ex_replacement>
    <!--
       Comments can be freely added between elements
    -->
    <include flag="F-Qunroll" />
    <include text="F-inline=$1" />
    <display enable="1" />

    <![CDATA[
         <p>-O$1 enables optimization at level $1.</p>
         <!-- Because this comment appears within the CDATA section, it will also
         appear in any HTML generated from the flag description. -->
    ]]>
</flag>

Whitespace is largely ignored (except within quoted and CDATA sections).

All of the options are fully explained in the sections below.

3.1 Flag name (mandatory)

The requirements are:

  1. Each flag must have a name attribute.
  2. A name must begin with a letter, a colon, or an underscore.
  3. After that, it may be composed of letters, digits, periods, hyphens ('-'), underscores, or colons.

The XML name attribute is almost never going to be spelled exactly the same way as the human-readable compiler flag, since compiler flags typically begin with other characters, such as slash (/) and hyphen (-). Note also that a name may not include an equals sign. See the regexp section for suggested naming conventions that meet the above restrictions.

Although the XML name string is arbitrary, you will probably find it useful to choose names that bear an obvious relationship to human-readable compiler flag names. If the compiler calls it --bigger, your XML should not say flag name="smaller" for three reasons:

The XML flag name attribute must be unique. If you format a single result using multiple flags files (with --flagsurl=file1.xml,file2.xml or the config file option flagsurl), the name must be unique across all the files.

The naming restrictions are derived from the "Name" production (#5) in XML 1.0 section 2.3.

3.2 Flag class (mandatory)

Each flag must also have a class attribute, which determines how the flag is reported. There are 7 possible classes.

3.2.1 "mandatory" class

These are flags that are supplied by SPEC for every compile. With a few exceptions, they cannot be overridden. Flags in the "mandatory" class are not listed on per-result flags reports, but they do appear in the dump of the suite-wide flags file. The original is on your installed copy of SPEC CPU2017 as $SPEC/benchspec/flags-mandatory.xml (Unix) or %SPEC%\benchspec\flags-mandatory.xml (Windows) and the HTML version is in the flags subdirectory of the Docs directory, as flags-mandatory.html.

3.2.2 "forbidden" class

These are flags that may not be used. If "forbidden" flags are present, that does not prevent you from doing a run; but such flags will be prominently displayed in red on the result pages and your result will be marked "Invalid".

3.2.3 "portability" class

Flags in this class are candidates for consideration as portability as defined in the SPEC CPU2017 rules. For example, the flags description file for 500.perlbench_r classifies -DSPEC_LINUX_IA32 as portability; if your system needs it, your config file might say:

500.perlbench_r,600.perlbench_s:
   PORTABILITY = -DSPEC_LINUX_IA32

and the reports of your runs will mention the use of -DSPEC_LINUX_IA32 in the Portability Flags section. Note: the appearance of a flag in the "portability" class in a flag description file is not alone enough to meet the rule; the tested platform must actually need the flag.

Portability flags are required to appear in configuration variables that contain the string PORTABILITY; if you use a flag from the portability class in a configuration variable such as OPTIMIZATION, COPTIMIZATION, and so forth, this will be flagged as an error.

3.2.4 "optimization" class

Use the optimization class for flags that control, invoke, enable, encourage, or otherwise affect optimization.

If in doubt between class other and optimization, pick optimization.

If any flags in the optimization class are used in a configuration variable that are intended for portability flags, such as PORTABILITY, CXXPORTABILITY, and so forth, this will be noted in the results.

3.2.5 the "compiler" class

Flags in the compiler class are used only to match the invocation strings for compilers (that is, the first token on the command line).

The compiler class can be combined with the compilers attribute to dis-ambiguate flags with identical spelling (identical regexp) that are used by multiple compilers. In the example below, notice that both the C and C++ compilers have a switch with regexp="-g" and slightly different meanings:

   <flag name="tbcc" class="compiler" regexp="/opt/turboblaster/cc">
       C compiler
   </flag>

   <flag name="tbcxx" class="compiler" regexp="/opt/turboblaster/c++">
       C++ compiler
   </flag>

   <flag name="cc_g"  class="optimization" regexp="-g" compilers="tbcc">
      <![CDATA[
         <p>
            Enables debugging.
            Does <i>not</i> disable any optimizations.
         </p>
      ]]>
   </flag>

   <flag name="cxx_g" class="optimization" regexp="-g" compilers="tbcxx">
      <![CDATA[
         <p>
            Enables debugging.
            Disables inlining unless optimization is <tt>-O4</tt> or greater.
         </p>
      ]]>
   </flag>

The flags cc_g and cxx_g are linked to the correct compilers with their compilers= attribute. The effect is is that when reporting on a benchmark whose compile line begins /opt/turboblaster/cc, if the -g switch is used, it will get the first description above ("does not disable any optimizations"); if reporting on a C++ benchmark, then the second description will be used ("Disables inlinling unless...")

Compare the compiler class vs. the compilers attribute.

3.2.6 "other" class

This class is used for flags and other things that are neither optimization nor portability. These include flags that specify locations to the compiler, flags that change the compiler's verbosity, etc. Items in this class will be displayed on the per-result flags report.

3.2.7 "unknown" class

This class is used internally in the tools. Flags in this class will always be listed in the "unknown flags" section on the per-result flag report. This should not be used in a flags description file; after all, if it's listed there, it isn't unknown, is it?

3.3 Regular expression (mandatory, but defaulted)

Each flag must have a regexp attribute, which is a Perl-style regular expression that can be used to pick the flag out of a string of characters. This requirement may seem daunting, but for many flags, a carefully-chosen name will yield a default regexp that will work.

If you've not seen regular expressions before, suggestions for reading may be found in section 3.3.5.

3.3.1 Default regular expression

Commonly, a regular expression is can be generated by default from the flag name, if you understand that the tools provide a default regexp using the transformations in this section (which are applied in the order listed):

  1. If a flag name begins with the string "F-", the "F" will be stripped, and the remainder used as the basis for the default regexp. Thus a flag named "F-fast" will generate a default regexp that matches "-fast". The regexp will do case-sensitive matching. This takes care of a common situation for Unix systems.

  2. If a flag name begins with the string "f-", the "f-" will be stripped, and "[-/]" will be prepended to it. In addition, the regexp will have "(?i)" added to the beginning to cause it to match in a case-insensitive fashion. Thus a flag named "f-optimize" will generate a default regexp that will match any of "/OPTIMIZE", "-OPTIMIZE", "-Optimize", or "/OpTiMiZe". This takes care of a common situation for Windows systems.

  3. If no replacement for "F-" or "f-" was done, "[-/]" will be prepended to the regexp. This option is available if you want case-sensitive matching for the string and you want the beginning punctuation to be included in the regexp, but you don't care whether the punctuation looks like Unix or Windows. This situation is, as it were, case sensitive and OS-insensitive.

  4. The default composition of a name does not allow it to contain an equals ("=") symbol; since this is common in many flags, the next decision is made based on whether or not a colon is present, as a stand-in for equals.

    1. If the string contains a colon (":") then the first (and only the first) occurrence of a colon will be converted to an equal symbol. Thus a flag named "F-DBYTEORDER:1234" will match "-DBYTEORDER=1234".

    2. If the string does not contain a colon, then the default regexp value will have

                 (?:\([^\)]+\))?


      and

                 ((?:=\S*)?


      appended to it. The first pattern matches an opening left parenthesis, one or more characters that are not right parentheses, and a closing right parenthesis. In other words, a list of arguments enclosed in parentheses. In the second pattern, "=" matches an equals sign - that is, it is not a pattern metacharacter, unlike all the rest of this regular expression. The "\S*" says that a string of non-blank characters is optional. In both cases, the "(?:pattern)" notation groups the pattern inside the parentheses so that the "?" operator that immediately follows the closing parentheses applies to it, thus allowing 0 or 1 instances of the whole thing.

      The overall effect of "(?:\([^\)]+\))?(?:=\S*)?" is thus to both optionally match an argument list enclosed in parentheses, and to optionally match an equals sign and a value that does not contain whitespace. This should be sufficient to catch most forms of basic definition: a flag named "F-DFOO" will catch use of "-DFOO", "-DFOO=", and "-DFOO=bar".

  5. Finally, we will keep the default regular expression from matching longer flags that have the above as the first part of the string. For example, we do not want "-DSPEC_SOLARIS" to match "-DSPEC_SOLARIS_SPARC" (since that would leave "_SPARC" alone and unknown). Usually, "\b" (match a word boundary) is added to the end. But if the flag does not end with an alphanumeric, then "(?=\s|$)" will be appended to the regexp, which says to accept either white space or end of string. (You'll find more about this way of recognizing the end of a switch in section 3.3.4, below.)

Note that if this sequence of transformations does not yield an acceptable regular expression, it will be necessary to provide one explicitly via the regexp attribute. Some hints for doing so are given in the next few sections.

Some cases in which the default regular expression is not sufficient:

3.3.2 Full Perl regular expressions may be used

When the text of a flag is not constant, a more complex regular expression must be used. In that case, nearly any of the full range of Perl regular expression features may be used: backreferences, negative and positive look-ahead and look-behind assertions, minimal matching, etc. The only features that may not be used are ones marked "experimental" in the Perl documentation or ones which involve evaluating Perl code inside the regular expression.

3.3.3 Substituting captured text

Captured backreferences may be substituted into the flag description text and included flags . For example, in the following (inadequate) flag description:

<flag name="xO"
      class="optimization"
      regexp="-xO([0-9]+)\b">
This flag enables optimization at level $1.
</flag>

The regexp would match any flag which consisted of the characters "-xO" followed by one or more digits. The digits are "captured" by the parentheses that surround [0-9]+ and made available to the text. So for a flag like "-xO5", the text produced in the flag report would read

This flag enables optimization at level 5.

This feature allows complex flags (such as a flag that causes the compiler to pass a bunch of flags directly to the linker) to be compactly described. There's no reason you couldn't simply list each variation separately; in cases where there are only two or three possibilities, that may be preferable. But if you want to get fancy, you can.

To insert a literal dollar sign into replacement text, prefix it with a backslash ("\", as in \$VMSDirName). To insert a literal backslash, prefix it with another backslash.

3.3.4 When \b won't work

If your flag ends with a non-alphanumeric character, \b is not the correct way to end it. The reason is that \b is a zero-width assertion that matches the boundary between a "word" (alphanumeric) character and a non-"word" character. For most flags, \b is just the thing, since both whitespace and the end of the string are considered by Perl to be "non-word" characters.

But what about when you have a flag that does not end in an alphanumeric character? Say you have a flag that will appear on the compiler command line as '-fpsafe-'. You can't use \b because the last character in that flag is a dash. It's time for the "zero-width positive lookahead assertion", that is, (?=pattern), with pattern set to match either whitespace or end of string:

(?=\s|$)

So for the example above, the full regexp would be

-fpsafe-(?=\s|$)

That will ensure that your flag description matches only the string '-fpsafe-' and not something like '-fpsafe-all'.

In fact, you could safely replace all occurrences of \b with the construct above. But \b is more concise and looks a lot less confusing, so we'll use that wherever we can.

3.3.5 Regular expression references

You can learn about Perl's regular expression capabilities by typing any of these three commands:

   specperldoc perlretut
   specperldoc perlrequick
   specperldoc perlre

You'll find the same information on many systems by typing "man perl", or you can try http://perldoc.perl.org/perl.html. Jeffrey Friedl has also written a book called Mastering Regular Expressions which you might find helpful.

3.4 Descriptive text (mandatory)

With one exception, all flags must have descriptive text. After all, the whole point of this exercise is to locate and describe the flags being used. This text is what's contained in the <flag...> element, so there's no special attribute or element name for it.

The only time a description may be omitted is in the case of non-displayed flags (such as splitters). Those flags must not have descriptive text. See the controlling display section for more information.

3.4.1 Example: update descriptive text with rawformat

As mentioned in section 3.3.3, descriptive text can use elements of the regular expression to make them more specific. In this example, the first result from the previous suite, SPEC CPU2006, is modified to use the feature. (Similar commands would work in the same way for SPEC CPU2017.) In the example, result #1 is retrieved; then extract_raw pulls out the rawfile from the html page and extract_flags retrieves the flags from the rawfile.

$ mkdir example-cpu2006-00001/
$ cd example-cpu2006-00001/
$ ls
$ wget -q http://www.spec.org/cpu2006/results/res2006q3/cpu2006-20060513-00001.html
$ ls -l
total 120
-rw-rw-r--  1 jhenning  staff  58662 Dec 19 11:48 cpu2006-20060513-00001.html
$ extract_raw cpu2006-20060513-00001.html
cpu2006-20060513-00001.html: Wrote "cpu2006-20060513-00001.rsf"
$ extract_flags cpu2006-20060513-00001.rsf
Reading "cpu2006-20060513-00001.rsf"
Wrote "sun-studio.xml"
$ cp sun-studio.xml myflags.xml
$ vi myflags.xml

   ... edit, save changes .... here are the differences:

$ diff -u sun-studio.xml myflags.xml
...
 <flag name="xpagesize"
       class="optimization"
-      regexp="-xpagesize=\S+\b">
+      regexp="-xpagesize=(\S+)\b">
 <example>-xpagesize=<n> </example>
-Set the preferred page size for running the program.
+Set the preferred page size for running the program to $1.
 </flag>

The lines marked "+" in the diff output above are added, and the lines marked "-" are removed. The rawformat option --flagsurl applies the new file:

$ rawformat --flagsurl ./myflags.xml --output_format html cpu2006-20060513-00001.rsf
...
Retrieving flags file (./myflags.xml)...
...
Doing flag reduction: done
                       Renaming previous rawfile to cpu2006-20060513-00001.rsf.old.0
        format: raw -> cpu2006-20060513-00001.rsf
        format: flags -> cpu2006-20060513-00001.flags.html
        format: HTML -> cpu2006-20060513-00001.html, cpu2017-20060513-00001.gif

Notice above that a new rawfile was automatically written. It contains the new flags file. Here is a snapshot of two browser windows to show the difference between the reference system as posted at www.spec.org and our updated version:

screenshot of comparison of reports
Figure 2: Before/after substitution of captured text

3.5 Including other flags

Flags may include other flags, with the empty tag <include /> and one or more of its attributes:

<include text="some other abritrary text" />
<include flag="XML_name_of_other_flag"  />
<include flag="XML_name_of_other_flag" flagtext="text for named other flag" />

The text attribute lets you insert arbitrary text as if it had been on the command line, which is then parsed using the same methods as other text. You can insert multiple other flags if desired. The flag attribute lets you insert one flag using its XML flag name. The flagtext attribute can be used only when flag= is present: it provides the specific text to go with the named flag.

3.5.1 Include by "flag" attribute

To include another flag, reference its name from the flag attribute. If you include a flag whose regexp can match more than one thing, be aware that the <example> text will be used, unless you use both the flag attribute and the flagtext attribute. For example, consider these two flags:

<flag name="tune"
      class="optimization"
      regexp="-tune=\S+\b">
   <example>-tune=tb1, -tune=tb2, ...</example>
   <![CDATA[
       <p>Tune generated code for the indicated TurboBlaster chip.
       Legal values are tb1, tb2, tb3, or tb9000.  </p>
   ]]>
</flag>

<flag name="arch_tb3"
    class="optimization"
    regexp="-arch=tb3\n">
       <include flag="tune" flagtext="-tune=tb3"/>
       Generate code that runs only on the TurboBlaster 3.
</flag>

Using the above, if -arch=tb3 is found in the compile flags, the report will indicate that the flag -tune=tb3 is included. If the flagtext attribute were not present, then the report would use the example text:

   -arch=tb3
     Includes: -tune=tb1, -tune=tb2, ...

which would, obviously, be less than accurate. In general, if you are using the flag attribute to include flags by name, whose regexp can match more than one thing, you should use the flagtext attribute. Note that the text in the flagtext attribute is subject to backreference substitution, which might help you fill it out (along the lines of regexp="-arch=(\S+)" and flagext="-tune=$1").

3.5.2 Include by "text" attribute

The text attribute allows you to add arbitrary text back into the flags list that is being processed. The text listed is subject to backreference substitution. For example:

<flag name="fast"
      class="optimization"
      regexp="-fast(32|64)\b">
         <include text="-g$1" />
         This switch is not for going slowly.
</flag>

With this flag description, -fast32 or -fast64 cause either -g32 or -g64 to be put back into the list of flags to be parsed. The inclusions will go back into the same variable from which they came.

3.5.3 Splitters

Flag insertion by text is a powerful feature that allows complex multi-switch flags to be decomposed and parsed as if they were several individual flags.

For example, given the PathScale-style multi-switch flag -OPT:Ofast:ro=3:fast_sqrt, the following flag description would break it up into its constituent parts:

<flag name="F-OPT:all"
      class="optimization"
      regexp="-OPT:([^:\s]+):(.+)\b">
<include text="-OPT:$1" />
<include text="-OPT:$2" />
<display enable="0" />
</flag>

The regular expression matches -OPT: followed by some text that does not contain a colon or white space (which is captured), followed by a colon and additional text (which is also captured). Both instances of saved text are reinserted into the flags variable prepended by "-OPT:":

It effectively causes the original string -OPT:Ofast:ro=3:fast_sqrt
to be replaced by -OPT:Ofast -OPT:ro=3:fast_sqrt
and then (as it iterates again) by -OPT:Ofast -OPT:ro=3 -OPT:fast_sqrt

Of course, each of the three generated flags will need a description, for example:

<flag name="F-OPT:fast_sqrt"
      class="optimization"
      regexp="-OPT:Ofast_sqrt\b">
         Replaces calls to the accurate but slow square root implementation
         with calls to fast_sqrt, which is only accurate to within 37 ulp.
</flag>

3.6 List of compilers

The compilers attribute allows you to specify that a particular flag should match only when we are processing a command line for a particular compiler, or group of compilers. The value for this attribute is a comma-separated list of flag names. The flags referenced must be in the compiler class.

Compare the compiler class vs. the compilers attribute.

3.7 Example flag text

The example attribute allows the specification of readable text for display of flag references, such as in the HTML flag dump. For example, if a flags file has:

<flag name="xpagesize"
      class="optimization"
      regexp="-xpagesize=\S+\b">
   <example>-xpagesize=&lt;n&gt;</example>
   Set the preferred page size for running the program.
</flag>

then in a per-result flags file, the specific string that matched the regexp above will be printed (such as -xpagesize=4M). In a flags dump, there isn't any matching regexp - so what should we print? The answer is given by the <example> text, namely -xpagesize=<n>.

Notice above that in order to get the description to say

-xpagesize=<n>

we needed to code the example text as

-xpagesize=&lt;n&gt

because otherwise, XML would go looking for an undeclared element <n>.

Unlike a flag name, the example text does not need to be unique. For example, if two compilers have the same flag text with different meanings, example can be set identically for both.

3.8 Example replacements

The ex_replacement attribute allows you to specify replacements for $1, $2, and so forth in the descriptive text and in included flag parameters. These would normally come from text captured by the regexp during flag matching; when the regexp is not being used for matching (as when doing a flags dump), these replacements will be used.

This attribute may be specified multiple times.

We could improve the flag in the previous section by saying:

<flag name="xpagesize"
      class="optimization"
      regexp="-xpagesize=(\S+)\b">
   <example>-xpagesize=&lt;n&gt;</example>
   <ex_replacement>one of the valid sizes for your platform - e.g. 8KB, 4M.
                   You can find out what sizes are supported on your
                   platform by saying "pagesize -a".
   </ex_replacement>
   Set the preferred page size for running the program to $1
</flag>

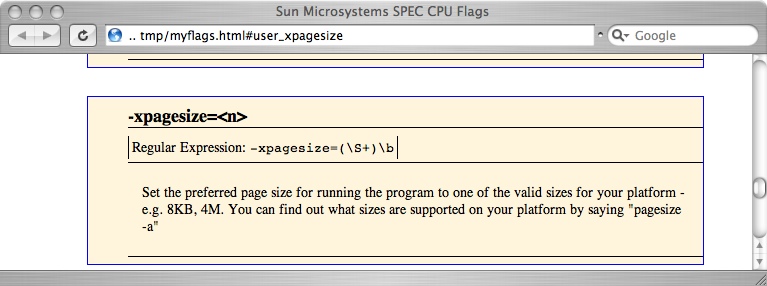

The above would cause the flags dump to look like this:
screenshot of flag dump

You can also apply the example replacements feature for flags that are included by other flags.

3.9 Controlling flag display

Flag descriptions that serve only to "split" multiple-option flags into smaller, more matchable chunks generally won't have any descriptive text (since they perform a function other than describing a flag). These special "splitter" flags do not necessarily need to show up in the flag report; in that case, display can be disabled by use of the display element and its single attribute enable.

Note that disabling display of a particular flag description is only allowed if the flag in question contains no descriptive text and ONLY includes other flags by textual insertion. For example:

<!-- Splitter for -OPT flags -->
<flag name="F-OPT:all"
      class="optimization"
      regexp="-OPT:([^:\s]+):(.+)\b">
<include text="-OPT:$1" />
<include text="-OPT:$2" />
<display enable="0" />
</flag>

See section 3.5.2 for an explanation of how this description works.

This rule is ignored when generating a flags dump.

The rule is also ignored when results are formatted for review, with the runcpu --review switch.

3.10 Indication of parallelism

The parallel attribute allows you to specify that a particular flag implies that code will be compiled with support for parallel execution. The value for this attribute is either "yes" or "no"; "no" is the default.

For an explanation of the intended usage model, please see the discussion About Parallel Reporting in config.html.

3.11 Other attributes

Inclusion of other attributes (whether intentionally or by typo) will be flagged as an error and cause the flag description file being read to be ignored.


4 Other Elements

Inclusion of other elements (whether intentionally or by typo) will be flagged as an error and cause the flag description file being read to be ignored.


5 Precedence

Flags in each file are processed in the order in which they appear; there is no explicit precedence mechanism. If a description matches more than 100 times when processing flags for a single benchmark, that description will be disabled, a warning emitted, and processing will continue.


6 Best Practices

  1. Validate .xml: After you write your flags file, validate the XML.

  2. Validate .html: Then, create a flag dump with HTML output, and validate that too.

  3. Combine files wisely: you can use multiple flags files to format a single result. Some suggestions on use of this feature:

  4. Separate unique content: In general, if you are writing flags files for use by others, try to think through the separation of common content from unique content, so as to avoid un-needed flags file proliferation. For example, platform settings with lots of description of a special BIOS probably belong in a separate flags file.

  5. Choose filenames wisely: If you are writing a flags file that is expected to evolve over time, it's probably wise to suggest a name on the order of "AcmeC-Win-RevA", not something like "Acme-Compiler-Corporation-C-Compiler-Version-10.1-Windows-flags-file.xml". The long name has several problems:

    1. If it is posted at www.spec.org/cpu2017/flags, users who might browse that directory looking for a suitable flags file might not be able to see anything past the first part.
    2. From context, it's already clear that it's a flags-file.
    3. And probably clear that it is a compiler file.

SPEC CPU®2017 Flag Description Files: Copyright © 2017 Standard Performance Evaluation Corporation (SPEC)
