SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| NEC Corporation ECO CENTER | SPECpower_ssj2008 = 1,010 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Jul 14, 2008 |
| Hardware Availability: | Oct-2008 | Software Availability: | Apr-2008 | Publication: | Jul 31, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

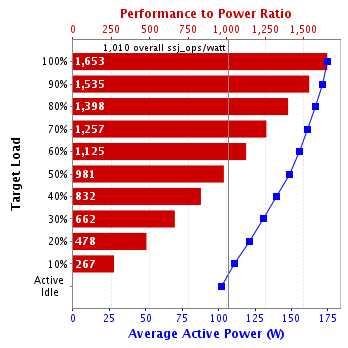

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.3% | 288,502 | 175 | 1,653 |
| 90% | 90.5% | 262,944 | 171 | 1,535 |
| 80% | 80.1% | 232,748 | 166 | 1,398 |
| 70% | 69.8% | 202,628 | 161 | 1,257 |
| 60% | 60.3% | 175,063 | 156 | 1,125 |
| 50% | 50.2% | 145,808 | 149 | 981 |
| 40% | 40.1% | 116,311 | 140 | 832 |
| 30% | 29.8% | 86,541 | 131 | 662 |
| 20% | 19.9% | 57,866 | 121 | 478 |
| 10% | 10.2% | 29,558 | 111 | 267 |
| Active Idle | 0 | 102 | 0 | |
| ∑ssj_ops / ∑power = | 1,010 | |||
| Set Identifier: | sut |
| Set Description: | ECO CENTER |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | ECO CENTER |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5420 |
| CPU Characteristics: | Quad-Core, 2.5 GHz, 2 x 6 MB L2 Cache, 1333 MHz system bus |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared/2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4 GB |
| Memory Details: | DDR2-667 CL5 5300P; slots 1 and 2 populated |
| Power Supply Quantity and Rating (W): | 1 x 780 |
| Power Supply Details: | NEC ECO-POWER781-AC |
| Disk Drive: | 1 x 160GB 5.4K RPM 2.5inch SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Intel Gigabit NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Microsoft Windows Server 2003 R2 Enterprise x64 Edition Service Pack 2 |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1760m -Xmx1760m -Xns1350m -XXaggressive -XXlargePages -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | start /affinity [03, 0C, 30, C0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1760 |
| JVM Maximum Heap (MB): | 1760 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | Express5800/120Rj-2 |
| CPU Description: | Intel Xeon X5450 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2003 R2 Standard Edition Service Pack 2 |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.5.0-110-94909-1.6.0_03-20080204-1558-windows-ia32, compiled mode) |
| CCS Version: | 1.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H624855 |
| Connectivity: | RS-232C |
| Input Connection: | -- |
| Calibration Institute: | AIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | B082442 |
| Date of Calibration: | Jun-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 175 | 20.4 |
| 90% | 171 | 20.4 |
| 80% | 166 | 20.4 |
| 70% | 161 | 20.4 |
| 60% | 156 | 20.4 |
| 50% | 149 | 20.4 |
| 40% | 140 | 20.4 |
| 30% | 131 | 20.4 |
| 20% | 121 | 20.4 |
| 10% | 111 | 20.4 |
| Active Idle | 102 | 20.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 202V / 50 Hz / 1 phase / 2 wires | 20.4 | 52 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 289,968 | ||
| Calibration 2 | 290,412 | ||
| Calibration 3 | 290,394 | ||
| ssj_ops@calibrated=290,403 | |||
| 100% | 99.3% | 290,403 | 288,502 |
| 90% | 90.5% | 261,363 | 262,944 |
| 80% | 80.1% | 232,322 | 232,748 |
| 70% | 69.8% | 203,282 | 202,628 |
| 60% | 60.3% | 174,242 | 175,063 |
| 50% | 50.2% | 145,202 | 145,808 |
| 40% | 40.1% | 116,161 | 116,311 |
| 30% | 29.8% | 87,121 | 86,541 |
| 20% | 19.9% | 58,081 | 57,866 |
| 10% | 10.2% | 29,040 | 29,558 |
| Active Idle | 0 | 0 | |
