SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| IBM Corporation System x3250 M3 | SPECpower_ssj2008 = 2,215 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | NanKang, Taipei, Taiwan | Test Date: | Sep 27, 2010 |
| Hardware Availability: | Nov-2010 | Software Availability: | Jun-2009 | Publication: | Oct 20, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

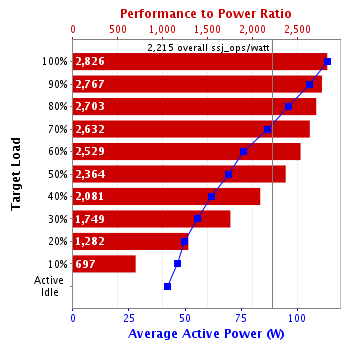

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.2% | 320,730 | 113 | 2,826 |
| 90% | 90.3% | 291,998 | 106 | 2,767 |
| 80% | 80.4% | 259,744 | 96.1 | 2,703 |
| 70% | 70.9% | 229,041 | 87.0 | 2,632 |
| 60% | 59.5% | 192,424 | 76.1 | 2,529 |
| 50% | 50.7% | 163,897 | 69.3 | 2,364 |
| 40% | 39.8% | 128,583 | 61.8 | 2,081 |
| 30% | 30.0% | 96,931 | 55.4 | 1,749 |
| 20% | 19.7% | 63,715 | 49.7 | 1,282 |
| 10% | 10.1% | 32,518 | 46.7 | 697 |
| Active Idle | 0 | 42.3 | 0 | |
| ∑ssj_ops / ∑power = | 2,215 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | System x3250 M3 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X3480 |
| CPU Characteristics: | Quad-Core, 3.07GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3-10600E ECC CL9; slots 1 and 4 populated |
| Power Supply Quantity and Rating (W): | 1 x 350 |
| Power Supply Details: | IBM P/N:49Y4662 |
| Disk Drive: | 1 x 250GB 7200RPM 3.5" SATA (IBM P/N:42C0463) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Intel 82574L Gigabit Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise Edition |
| OS Version: | 64-bit |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build pwa6460sr5-20090529_04(SR5)) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0F,F0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | GYE141TUS |
| Management Firmware Version: | YUOO82M |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | NetVista |
| CPU Description: | Intel Pentium 4 |
| Memory amount (GB): | 1 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional SP3 |
| JVM Vendor: | IBM Corporation |
| JVM Version: | J9VM build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32 |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-04-BAC-377-03 |
| Date of Calibration: | 23-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 113 | 21.5 |
| 90% | 106 | 21.5 |
| 80% | 96.1 | 21.5 |
| 70% | 87.0 | 21.5 |
| 60% | 76.1 | 21.6 |
| 50% | 69.3 | 21.6 |
| 40% | 61.8 | 21.6 |
| 30% | 55.4 | 21.8 |
| 20% | 49.7 | 21.9 |
| 10% | 46.7 | 22.1 |
| Active Idle | 42.3 | 22.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 21.5 | 63 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 323,236 | ||
| Calibration 2 | 322,657 | ||
| Calibration 3 | 323,825 | ||
| ssj_ops@calibrated=323,241 | |||
| 100% | 99.2% | 323,241 | 320,730 |
| 90% | 90.3% | 290,917 | 291,998 |
| 80% | 80.4% | 258,593 | 259,744 |
| 70% | 70.9% | 226,269 | 229,041 |
| 60% | 59.5% | 193,944 | 192,424 |
| 50% | 50.7% | 161,620 | 163,897 |
| 40% | 39.8% | 129,296 | 128,583 |
| 30% | 30.0% | 96,972 | 96,931 |
| 20% | 19.7% | 64,648 | 63,715 |
| 10% | 10.1% | 32,324 | 32,518 |
| Active Idle | 0 | 0 | |
