SPECpower_ssj2008

Supermicro Computer Inc. 1022G-NTF			SPECpower_ssj2008 = 2,618 overall ssj_ops/watt
Test Sponsor:	Advanced Micro Devices	SPEC License #:	49	Test Method:	Single Node
Tested By:	Advanced Micro Devices	Test Location:	Austin, TX, USA	Test Date:	Sep 23, 2011
Hardware Availability:	Nov-2011	Software Availability:	Mar-2011	Publication:	Nov 16, 2011
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Supermicro Computer Inc.
Model:	1022G-NTF
Form Factor:	1U
CPU Name:	AMD Opteron 6262 HE
CPU Characteristics:	Sixteen-Core, 1.6GHz, 16MB L3 Cache
CPU Frequency (MHz):	1600
CPU(s) Enabled:	32 cores, 2 chips, 16 cores/chip
Hardware Threads:	32 (1 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	512 KB I + 256 KB D on chip per chip
Secondary Cache:	16 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache:	16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache:	None
Memory Amount (GB):	32
# and size of DIMM:	8 x 4096 MB
Memory Details:	4GB 2Rx4 PC3L-10600R ECC CL9; slots 1A, 2A, 3A, 4A, populated for each socket
Power Supply Quantity and Rating (W):	1 x 560
Power Supply Details:	Supermicro Computer Inc. PWS-563-1H20
Disk Drive:	1 x 256GB Crucial C300 SATA SSD
Disk Controller:	Integrated AMD SP5100 SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel 82576 Gigabit NIC
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	Direct
Optical Drives:	Yes
Other Hardware:	None

Software
Power Management:	Balanced Power Profile Enabled
Operating System (OS):	Microsoft Windows Server 2008 R2 Enterprise
OS Version:	SP1 (64-bit)
Filesystem:	NTFS
JVM Vendor:	IBM Corporation
JVM Version:	IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 R2 amd64-64 jvmwa6460sr9-20101209_70480 (JIT enabled, AOT enabled)
JVM Command-line Options:	-Xms1875m -Xmn1400m -Xmx1875m -Xaggressive -Xcompressedrefs -Xnoloa -Xlp -XlockReservation -Xgcpolicy:gencon
JVM Affinity:	start /affinity [node 0/0F,F0\|node 1/0F,F0\|node 2/0F,F0\|node 3/0F,F0]
JVM Instances:	8
JVM Initial Heap (MB):	1875
JVM Maximum Heap (MB):	1875
JVM Address Bits:	64
Boot Firmware Version:	H8DGU1.908
Management Firmware Version:	2.23
Workload Version:	SSJ 1.2.6
Director Location:	Controller
Other Software:	IBM Websphere Application Server V7.0 for Windows on x86-64

C-State Mode set to C6. HT Speed Support set to HT1. Fan Speed Control Mode set to Energy Saving/ES.

none

Primary cache architecture for the processor is 512 KB I cache on chip per chip with 64 KB shared per 2 cores, and 16 KB D cache on chip per core
Each JVM instance was affinitized to 4 cores.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run started via Remote Desktop

Software
Operating System (OS):	Microsoft Windows 7 Enterprise
JVM Vendor:	Sun Microsystems
JVM Version:	Java HotSpot(TM) Client VM (build 14.2-b01, mixed mode, sharing)
CCS Version:	1.2.4

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Electric International Pte. Ltd.
Model:	WT210
Serial Number:	91K308578
Connectivity:	USB-to-Serial
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	Yokogawa Corporation of America
Calibration Label:	10-1827
Date of Calibration:	28-Sep-2010
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.4.0-7071d9e7
Setup Description:	Unknown

Sabrent SBT-USC1M USB-to-Serial converter was used to connect power analyzer to CCS system.

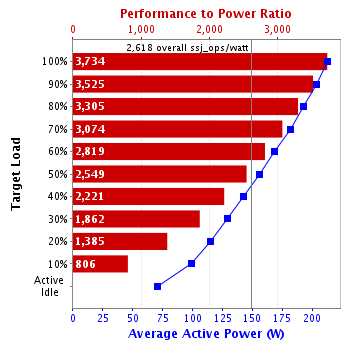

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	213	20.4
90%	203	20.3
80%	193	20.2
70%	182	20.2
60%	169	20.2
50%	156	20.2
40%	143	20.2
30%	130	20.2
20%	115	20.2
10%	99.0	20.2
Active Idle	70.3	20.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	20.2	168

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
