Acer Incorporated Acer AW2000h-Aw170h F2 ssj_ops@100% = 6,419,253
ssj_ops@100% per Host = 1,604,813
ssj_ops@100% per JVM = 200,602
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Dec 12, 2012
Hardware Availability: Sep-2012 Software Availability: Mar-2012 Publication: Jan 4, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,344,501
Calibration 2     6,448,911
Calibration 3     6,445,923
ssj_ops@calibrated=6,447,417
100% 99.6% 6,447,417 6,419,253
90% 90.0% 5,802,675 5,799,939
80% 79.9% 5,157,933 5,152,817
70% 70.1% 4,513,192 4,517,449
60% 60.0% 3,868,450 3,867,163
50% 50.0% 3,223,708 3,224,773
40% 40.1% 2,578,967 2,584,379
30% 30.0% 1,934,225 1,934,058
20% 20.1% 1,289,483 1,292,743
10% 10.0% 644,742 641,885
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 64 128 512 4 32
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Acer AW2000h
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1600
Power Supply Details: PSSF162202A
Network Switch: 16-PORT Gigabit Switch
Network Switch Details: D-Link DGS-1016T
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch is a standalon device and is not included in the measured power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Acer Incorporated
Model: Acer AW2000h-Aw170h F2
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.6 GHz (Intel Turbo Boost Technology up to 3.30 GHz)
CPU Characteristics: 8 core, 2.6GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 16GB 2Rx4 PC3-12800R; slots A1, B1, C1, D1, E1, F1, G1 and H1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200 RPM SATA, Acer P/N KH.50001.043
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedresf-Xmx1500m -Xms1500m -Xmn110m -xlockReservation -xnoloa -xtlhPrefetch -xlp
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 01.06.0001
Management Firmware Version: 1.16.4010
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-A3AMB207KJG 1,610,399
WIN-E5S3A9AT08Q 1,600,982
WIN-ECAQAB7SPJC 1,601,407
WIN-QOS37JH09K5 1,606,466
ssj_ops@100% 6,419,253
ssj_ops@100% per Host 1,604,813
ssj_ops@100% per JVM 200,602

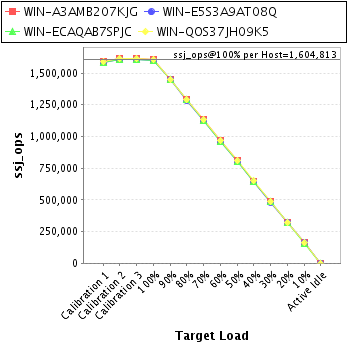

Graph of per-host results
Host 'WIN-A3AMB207KJG' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,591,574
Calibration 2     1,617,776
Calibration 3     1,616,935
ssj_ops@calibrated=1,617,356
100% 99.6% 1,617,356 1,610,399
90% 89.9% 1,455,620 1,453,267
80% 79.8% 1,293,885 1,290,250
70% 70.0% 1,132,149 1,132,542
60% 60.1% 970,413 972,154
50% 50.0% 808,678 809,431
40% 40.0% 646,942 646,404
30% 29.9% 485,207 483,749
20% 20.0% 323,471 323,240
10% 10.0% 161,736 161,587
Active Idle   0 0

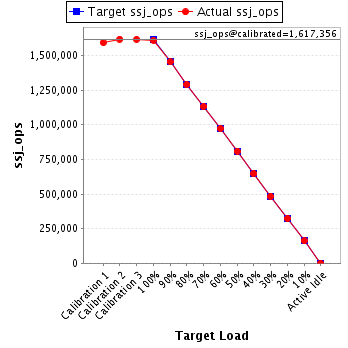

Graph of results
See the Host Performance Report for additional details.
Host 'WIN-E5S3A9AT08Q' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,582,561
Calibration 2     1,609,025
Calibration 3     1,609,374
ssj_ops@calibrated=1,609,199
100% 99.5% 1,609,199 1,600,982
90% 90.0% 1,448,279 1,448,440
80% 79.8% 1,287,360 1,284,415
70% 70.0% 1,126,440 1,126,925
60% 59.9% 965,520 964,362
50% 49.9% 804,600 802,980
40% 40.1% 643,680 645,053
30% 29.9% 482,760 480,904
20% 20.1% 321,840 322,948
10% 10.0% 160,920 160,872
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-ECAQAB7SPJC' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,580,606
Calibration 2     1,607,740
Calibration 3     1,607,757
ssj_ops@calibrated=1,607,748
100% 99.6% 1,607,748 1,601,407
90% 90.0% 1,446,974 1,447,353
80% 80.1% 1,286,199 1,287,999
70% 70.1% 1,125,424 1,126,740
60% 59.8% 964,649 961,728
50% 50.1% 803,874 805,073
40% 40.0% 643,099 643,892
30% 30.1% 482,325 484,415
20% 20.0% 321,550 322,132
10% 9.9% 160,775 158,917
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-QOS37JH09K5' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,589,760
Calibration 2     1,614,370
Calibration 3     1,611,856
ssj_ops@calibrated=1,613,113
100% 99.6% 1,613,113 1,606,466
90% 89.9% 1,451,802 1,450,880
80% 80.0% 1,290,490 1,290,153
70% 70.1% 1,129,179 1,131,243
60% 60.1% 967,868 968,919
50% 50.0% 806,556 807,289
40% 40.2% 645,245 649,031
30% 30.1% 483,934 484,991
20% 20.1% 322,623 324,422
10% 10.0% 161,311 160,510
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
