Acer Incoporated Acer AR360 F2 SPECpower_ssj2008 = 3,900 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: acer Incorporated Test Location: Taipei, R.O.C. Test Date: Dec 10, 2012
Hardware Availability: May-2012 Software Availability: Oct-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 1,435,697 315 4,564
90% 90.1% 1,297,557 290 4,482
80% 79.9% 1,150,879 240 4,793
70% 70.0% 1,007,940 218 4,618
60% 60.1% 865,402 201 4,296
50% 50.0% 720,975 182 3,971
40% 39.9% 575,426 159 3,630
30% 30.0% 432,447 137 3,148
20% 20.0% 288,246 117 2,454
10% 10.1% 145,611 103 1,419
Active Idle 0 69.4 0
∑ssj_ops / ∑power = 3,900

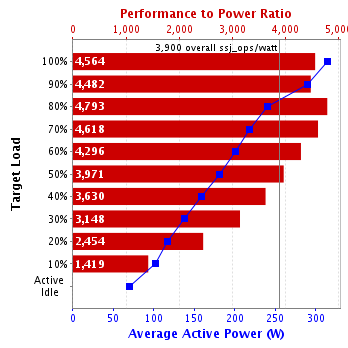

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incoporated
Model: Acer AR360 F2
Form Factor: 1U
CPU Name: Intel Xeon E5-2660 2.2 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.2GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 MB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; Slots 1A, 1B, 1C, 1D and 1E, 1F are populated
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: Acer P/N PY.7000S.002
Disk Drive: 1 x 500GB 7.2K RPM SATA 2.5" HDD, Acer part #KH.50001.041
Disk Controller: onboard SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 dual-port Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P03
Management Firmware Version: 1.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer GR160 F1
CPU Description: Xeon L5520
Memory amount (GB): 3
Software
Operating System (OS): Windows Server 2003 R2, Enterprise Edition SP2
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 12-05-BAC-113-01
Date of Calibration: 10-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 315 22.1
90% 290 21.6
80% 240 22.1
70% 218 21.9
60% 201 22.0
50% 182 22.1
40% 159 22.1
30% 137 22.4
20% 117 22.1
10% 103 22.3
Active Idle 69.4 22.1
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 21.6 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,415,684
Calibration 2     1,439,000
Calibration 3     1,442,260
ssj_ops@calibrated=1,440,630
100% 99.7% 1,440,630 1,435,697
90% 90.1% 1,296,567 1,297,557
80% 79.9% 1,152,504 1,150,879
70% 70.0% 1,008,441 1,007,940
60% 60.1% 864,378 865,402
50% 50.0% 720,315 720,975
40% 39.9% 576,252 575,426
30% 30.0% 432,189 432,447
20% 20.0% 288,126 288,246
10% 10.1% 144,063 145,611
Active Idle   0 0
Graph of results
