Hewlett Packard Enterprise ProLiant DL360 Gen10 SPECpower_ssj2008 = 11,550 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 23, 2017
Hardware Availability: Oct-2017 Software Availability: Apr-2015 Publication: Nov 8, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 2,989,485 233 12,840
90% 89.9% 2,697,150 210 12,846
80% 79.9% 2,396,373 178 13,477
70% 70.1% 2,102,394 156 13,459
60% 60.2% 1,805,969 138 13,101
50% 50.1% 1,502,207 121 12,365
40% 40.0% 1,200,757 107 11,174
30% 29.9% 898,385 94.6 9,493
20% 20.0% 601,396 82.2 7,314
10% 10.0% 300,555 68.9 4,362
Active Idle 0 38.7 0
∑ssj_ops / ∑power = 11,550

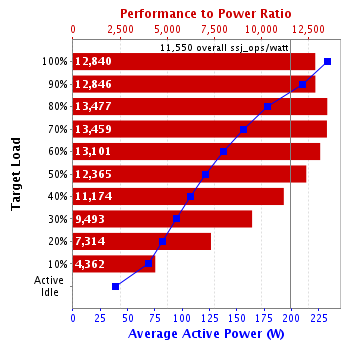

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 28 cores, 1 chip, 28 cores/chip
Hardware Threads: 56 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 6 x 8182 MB
Memory Details: 6 x 8GB 2Rx8 PC4-2666V-RE1-12 Samsung; slots 1, 3, 5, 8, 10, and 12 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DPS-800AB (865438-B21) 96%
Disk Drive: 1 x HPE Dual 150GB SATA RI uFF M.2 SSSD (880875-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 2-port 332T Adapter (615732-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1] /AFFINITY [0xFFFFFFF]
JVM Instances: 2
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U32 v1.22 (09/29/2017)
Management Firmware Version: 1.15 Aug 03 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2QM22001V
Connectivity: Yokogawa USB
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat
Calibration Label: 5-D40W6-20-1
Date of Calibration: 21-Jun-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 233 21.6
90% 210 21.6
80% 178 21.6
70% 156 21.6
60% 138 21.5
50% 121 21.5
40% 107 21.5
30% 94.6 21.5
20% 82.2 21.4
10% 68.9 21.5
Active Idle 38.7 21.5
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.4 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,000,688
Calibration 2     3,000,282
Calibration 3     3,001,474
ssj_ops@calibrated=3,000,878
100% 99.6% 3,000,878 2,989,485
90% 89.9% 2,700,790 2,697,150
80% 79.9% 2,400,702 2,396,373
70% 70.1% 2,100,615 2,102,394
60% 60.2% 1,800,527 1,805,969
50% 50.1% 1,500,439 1,502,207
40% 40.0% 1,200,351 1,200,757
30% 29.9% 900,263 898,385
20% 20.0% 600,176 601,396
10% 10.0% 300,088 300,555
Active Idle   0 0
Graph of results
