SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 69,404,522 ssj_ops@100% per Host = 11,567,420 ssj_ops@100% per JVM = 1,445,928
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Apr 10, 2018
Hardware Availability:	Jun-2018	Software Availability:	Mar-2018	Publication:	Apr 26, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			69,548,584
Calibration 2			69,581,336
Calibration 3			69,620,709
ssj_ops@calibrated=69,601,023
100%	99.7%	69,601,023	69,404,522
90%	90.0%	62,640,920	62,632,356
80%	80.0%	55,680,818	55,704,892
70%	70.0%	48,720,716	48,719,173
60%	60.0%	41,760,614	41,742,200
50%	50.0%	34,800,511	34,792,887
40%	40.0%	27,840,409	27,851,045
30%	30.0%	20,880,307	20,875,301
20%	20.0%	13,920,205	13,919,003
10%	10.0%	6,960,102	6,962,600
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
6	24	672	1,344	2,304	6	48

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1
Network Switch Details:	HP A5820X Series Switch JG219A
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10Gb Pass Thru Module (799330-B21), 1 x HPE Synergy Composer (804353-B21), 1 x HPE Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE 480GB SATA 6G Read Intensive M.2 (875319-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=30 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [0x0000000FC0FF, 0xFC0FF0000000]; start /NODE [1,3,5,7] /AFFINITY [0x0000000FF03F,0xFF03F0000000]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v1.32 (02/01/2018)
Management Firmware Version:	1.15 August 17 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #1: Disabled
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active
Synergy Frame Power Supply mode set to Redundant Power Supply via HPE OneView.

Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Feb 28, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

Host Instance Summary

Host	ssj_ops@100%
Node01	11,595,429
Node02	11,574,748
Node03	11,585,681
Node04	11,602,013
Node05	11,541,895
Node06	11,504,755
ssj_ops@100%	69,404,522
ssj_ops@100% per Host	11,567,420
ssj_ops@100% per JVM	1,445,928

Host 'Node01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,628,144
Calibration 2			11,629,660
Calibration 3			11,633,020
ssj_ops@calibrated=11,631,340
100%	99.7%	11,631,340	11,595,429
90%	90.0%	10,468,206	10,464,952
80%	80.0%	9,305,072	9,307,092
70%	70.0%	8,141,938	8,139,523
60%	60.0%	6,978,804	6,978,146
50%	50.0%	5,815,670	5,814,576
40%	40.0%	4,652,536	4,655,296
30%	30.0%	3,489,402	3,493,118
20%	20.1%	2,326,268	2,333,182
10%	10.0%	1,163,134	1,163,976
Active Idle		0	0

See the Host Performance Report for additional details.

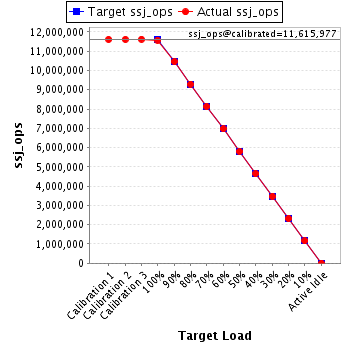

Host 'Node02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,613,115
Calibration 2			11,609,499
Calibration 3			11,622,455
ssj_ops@calibrated=11,615,977
100%	99.6%	11,615,977	11,574,748
90%	90.0%	10,454,379	10,458,769
80%	80.0%	9,292,782	9,296,257
70%	70.0%	8,131,184	8,130,686
60%	60.0%	6,969,586	6,972,425
50%	50.0%	5,807,989	5,805,122
40%	40.0%	4,646,391	4,645,538
30%	29.9%	3,484,793	3,474,412
20%	20.0%	2,323,195	2,320,704
10%	10.0%	1,161,598	1,158,902
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'Node03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,606,501
Calibration 2			11,618,835
Calibration 3			11,624,018
ssj_ops@calibrated=11,621,427
100%	99.7%	11,621,427	11,585,681
90%	90.1%	10,459,284	10,471,597
80%	80.0%	9,297,141	9,302,323
70%	70.0%	8,134,999	8,131,616
60%	60.0%	6,972,856	6,970,510
50%	50.0%	5,810,713	5,812,778
40%	40.0%	4,648,571	4,650,137
30%	30.0%	3,486,428	3,487,686
20%	20.0%	2,324,285	2,322,607
10%	10.0%	1,162,143	1,162,174
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'Node04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,622,810
Calibration 2			11,627,404
Calibration 3			11,622,399
ssj_ops@calibrated=11,624,901
100%	99.8%	11,624,901	11,602,013
90%	89.8%	10,462,411	10,444,829
80%	80.0%	9,299,921	9,301,328
70%	70.0%	8,137,431	8,137,746
60%	60.0%	6,974,941	6,971,770
50%	49.9%	5,812,451	5,806,454
40%	40.0%	4,649,961	4,649,190
30%	30.0%	3,487,470	3,488,358
20%	20.0%	2,324,980	2,325,127
10%	10.0%	1,162,490	1,163,854
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'Node05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,556,215
Calibration 2			11,567,737
Calibration 3			11,571,117
ssj_ops@calibrated=11,569,427
100%	99.8%	11,569,427	11,541,895
90%	89.9%	10,412,484	10,405,791
80%	80.0%	9,255,542	9,259,532
70%	70.0%	8,098,599	8,101,676
60%	60.0%	6,941,656	6,936,080
50%	50.0%	5,784,714	5,781,688
40%	40.1%	4,627,771	4,635,596
30%	30.0%	3,470,828	3,468,293
20%	20.0%	2,313,885	2,311,308
10%	10.0%	1,156,943	1,159,776
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'Node06' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,521,799
Calibration 2			11,528,200
Calibration 3			11,547,701
ssj_ops@calibrated=11,537,951
100%	99.7%	11,537,951	11,504,755
90%	90.0%	10,384,156	10,386,417
80%	80.1%	9,230,360	9,238,361
70%	70.0%	8,076,565	8,077,926
60%	59.9%	6,922,770	6,913,270
50%	50.0%	5,768,975	5,772,269
40%	40.0%	4,615,180	4,615,288
30%	30.0%	3,461,385	3,463,434
20%	20.0%	2,307,590	2,306,075
10%	10.0%	1,153,795	1,153,919
Active Idle		0	0

See the Host Performance Report for additional details.
