Sugon I620-G30 (Intel Xeon Platinum 8180) SPECpower_ssj2008 = 12,306 overall ssj_ops/watt
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: May 25, 2018
Hardware Availability: Feb-2018 Software Availability: Jan-2018 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.3% 5,741,928 450 12,746
90% 89.8% 5,246,453 378 13,873
80% 79.9% 4,662,967 320 14,550
70% 69.9% 4,083,852 284 14,400
60% 60.0% 3,503,550 254 13,797
50% 50.1% 2,926,414 221 13,249
40% 39.9% 2,331,208 194 12,023
30% 30.0% 1,751,710 171 10,265
20% 20.0% 1,167,464 149 7,854
10% 10.0% 586,100 125 4,681
Active Idle 0 54.6 0
∑ssj_ops / ∑power = 12,306

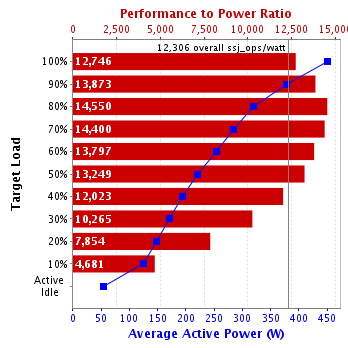

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Sugon
Model: I620-G30 (Intel Xeon Platinum 8180)
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180
CPU Characteristics: 28-Core, 2.5GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-R(P/N:M393A2K43CB2-CTD6Q); slots DIMM_CPU[0-1]_[A-F]0 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: ARTESYN 550W PSU(P/N:CSU550AP-3-200)
Disk Drive: 1 x 120GB M.2 SATA SSD(P/N:SU120GBSS3M55M28NE)
Disk Controller: Integrated onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated onboard Ethernet 1Gb with 2-port RJ45 Adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: JGS012
Management Firmware Version: Ver 0.70
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Sugon
Model: I620-G30
CPU Description: Intel Xeon Gold 6148
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Meters and Instruments Corporation
Model: WT310E
Serial Number: C3UB14026E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS(China National Accreditation Service for Conformity Assessment)
Accredited by: National Institute of Metrology
Calibration Label: CSG06300180301-1145
Date of Calibration: 01-Mar-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connect to PSU1
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.24.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 450 28.6
90% 378 28.6
80% 320 28.6
70% 284 28.6
60% 254 28.6
50% 221 28.6
40% 194 28.6
30% 171 28.6
20% 149 28.6
10% 125 28.5
Active Idle 54.6 28.5
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 28.5 50
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,859,212
Calibration 2     5,841,328
Calibration 3     5,837,445
ssj_ops@calibrated=5,839,386
100% 98.3% 5,839,386 5,741,928
90% 89.8% 5,255,448 5,246,453
80% 79.9% 4,671,509 4,662,967
70% 69.9% 4,087,570 4,083,852
60% 60.0% 3,503,632 3,503,550
50% 50.1% 2,919,693 2,926,414
40% 39.9% 2,335,755 2,331,208
30% 30.0% 1,751,816 1,751,710
20% 20.0% 1,167,877 1,167,464
10% 10.0% 583,939 586,100
Active Idle   0 0
