SPECpower_ssj2008

Sugon I620-G30(Intel Xeon Platinum 8160)			SPECpower_ssj2008 = 10,255 overall ssj_ops/watt
Test Sponsor:	Sugon	SPEC License #:	9046	Test Method:	Single Node
Tested By:	Sugon	Test Location:	Beijing, CHN	Test Date:	May 26, 2018
Hardware Availability:	Feb-2018	Software Availability:	Jul-2017	Publication:	Aug 8, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Sugon
Model:	I620-G30(Intel Xeon Platinum 8160)
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8160
CPU Characteristics:	24-Core, 2.1GHz, 33MB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	48 cores, 2 chips, 24 cores/chip
Hardware Threads:	96 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per chip
Tertiary Cache:	33 MB I+D off chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16 GB
Memory Details:	16GB 2Rx8 PC4-2666V-R(P/N:M393A2K43CB2-CTD6Q); slots DIMM_CPU[0-1]_[A-F]0 populated
Power Supply Quantity and Rating (W):	1 x 550
Power Supply Details:	ARTESYN 550W PSU(P/N:CSU550AP-3-200)
Disk Drive:	1 x 120GB M.2 SATA SSD(P/N:SU120GBSS3M55M28NE)
Disk Controller:	Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed:	2 x Integrated onboard NIC
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000]
JVM Instances:	48
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	JGS012
Management Firmware Version:	Ver 0.70
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
SPECpower_ssj.props input.load_level.number_warehouses set to 96 due to a known inconsistency in processor reporting with this Java version.
Windows Power Options=Balanced Mode
No: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA Meters and Instruments Corporation
Model:	WT310E
Serial Number:	C3UB14026E
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	CNAS(China National Accreditation Service for Conformity Assessment)
Accredited by:	National Institute of Metrology
Calibration Label:	CSG06300180301-1145
Date of Calibration:	01-Mar-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connect to PSU1

Temperature Sensor temp1
Hardware Vendor:	iButton Link Technology
Model:	iButton Link T-Sense/T-Probe
Driver Version:	2.12.24.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	10mm in front of SUT main airflow intake

None

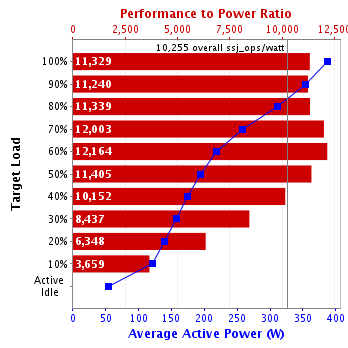

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	387	28.4
90%	354	28.4
80%	312	28.4
70%	258	28.4
60%	218	28.3
50%	194	28.3
40%	174	28.3
30%	157	28.2
20%	140	28.2
10%	121	28.2
Active Idle	53.4	28.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	28.2	50

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
