Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 45,793,948
ssj_ops@100% per Host = 5,724,243
ssj_ops@100% per JVM = 1,431,061
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     45,881,606
Calibration 2     45,888,979
Calibration 3     45,967,237
ssj_ops@calibrated=45,928,108
100% 99.7% 45,928,108 45,793,948
90% 90.0% 41,335,297 41,331,249
80% 80.1% 36,742,486 36,785,484
70% 70.0% 32,149,676 32,133,609
60% 60.0% 27,556,865 27,565,365
50% 50.0% 22,964,054 22,959,496
40% 40.0% 18,371,243 18,375,047
30% 30.0% 13,778,432 13,769,859
20% 20.0% 9,185,622 9,185,156
10% 10.0% 4,592,811 4,597,764
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
8 16 448 896 1,536 8 32
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HPE Synergy 12000 Frame
Form Factor: 10U
Power Supply Quantity and Rating (W): 6 x 2650
Power Supply Details: HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1
Network Switch Details: HP A5820X Series Switch JG219A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x HPE Synergy 10Gb Pass Thru Module (799330-B21), 1 x HPE Synergy Composer (804353-B21), 1 x HPE Synergy Frame Link Module (804942-B21)
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 8
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
NODE01 5,720,994
NODE02 5,693,258
NODE03 5,720,497
NODE04 5,726,327
NODE05 5,756,989
NODE06 5,744,733
NODE07 5,710,983
NODE08 5,720,166
ssj_ops@100% 45,793,948
ssj_ops@100% per Host 5,724,243
ssj_ops@100% per JVM 1,431,061

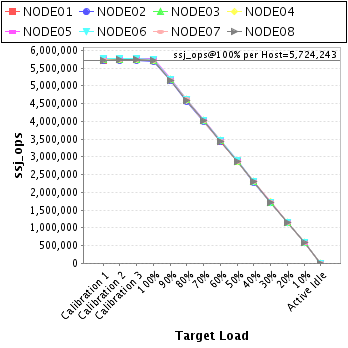

Graph of per-host results
Host 'NODE01' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,712,558
Calibration 2     5,732,085
Calibration 3     5,745,310
ssj_ops@calibrated=5,738,697
100% 99.7% 5,738,697 5,720,994
90% 90.0% 5,164,828 5,167,435
80% 80.0% 4,590,958 4,591,276
70% 70.0% 4,017,088 4,018,365
60% 59.9% 3,443,218 3,436,964
50% 50.0% 2,869,349 2,868,447
40% 40.0% 2,295,479 2,298,011
30% 30.0% 1,721,609 1,720,403
20% 20.0% 1,147,739 1,148,348
10% 10.0% 573,870 573,984
Active Idle   0 0
Graph of results
Host 'NODE02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,706,984
Calibration 2     5,704,971
Calibration 3     5,716,393
ssj_ops@calibrated=5,710,682
100% 99.7% 5,710,682 5,693,258
90% 89.9% 5,139,614 5,135,277
80% 79.9% 4,568,545 4,564,340
70% 70.0% 3,997,477 3,997,612
60% 60.1% 3,426,409 3,429,684
50% 50.0% 2,855,341 2,857,296
40% 40.0% 2,284,273 2,281,707
30% 30.0% 1,713,205 1,712,513
20% 20.0% 1,142,136 1,142,438
10% 10.1% 571,068 575,113
Active Idle   0 0
Graph of results
Host 'NODE03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,734,017
Calibration 2     5,733,422
Calibration 3     5,746,158
ssj_ops@calibrated=5,739,790
100% 99.7% 5,739,790 5,720,497
90% 90.0% 5,165,811 5,165,326
80% 80.1% 4,591,832 4,600,421
70% 70.0% 4,017,853 4,016,109
60% 60.1% 3,443,874 3,451,370
50% 50.0% 2,869,895 2,867,229
40% 39.9% 2,295,916 2,291,538
30% 29.9% 1,721,937 1,718,632
20% 20.0% 1,147,958 1,148,058
10% 10.0% 573,979 574,609
Active Idle   0 0
Graph of results
Host 'NODE04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,737,006
Calibration 2     5,735,691
Calibration 3     5,748,231
ssj_ops@calibrated=5,741,961
100% 99.7% 5,741,961 5,726,327
90% 90.1% 5,167,765 5,171,895
80% 80.0% 4,593,569 4,592,346
70% 70.0% 4,019,373 4,020,516
60% 60.1% 3,445,177 3,449,949
50% 50.0% 2,870,981 2,870,486
40% 40.2% 2,296,784 2,306,138
30% 30.1% 1,722,588 1,726,458
20% 19.9% 1,148,392 1,144,253
10% 10.0% 574,196 575,562
Active Idle   0 0
Graph of results
Host 'NODE05' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,775,763
Calibration 2     5,771,465
Calibration 3     5,778,089
ssj_ops@calibrated=5,774,777
100% 99.7% 5,774,777 5,756,989
90% 90.1% 5,197,299 5,200,327
80% 80.0% 4,619,822 4,616,945
70% 70.0% 4,042,344 4,044,199
60% 60.0% 3,464,866 3,464,154
50% 49.9% 2,887,389 2,884,145
40% 40.0% 2,309,911 2,310,785
30% 29.9% 1,732,433 1,727,986
20% 20.0% 1,154,955 1,154,080
10% 10.0% 577,478 576,369
Active Idle   0 0
Graph of results
Host 'NODE06' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,758,317
Calibration 2     5,757,309
Calibration 3     5,759,622
ssj_ops@calibrated=5,758,466
100% 99.8% 5,758,466 5,744,733
90% 89.9% 5,182,619 5,175,447
80% 80.1% 4,606,773 4,614,333
70% 69.9% 4,030,926 4,026,799
60% 60.0% 3,455,079 3,455,725
50% 50.1% 2,879,233 2,883,847
40% 40.0% 2,303,386 2,301,047
30% 29.9% 1,727,540 1,722,412
20% 20.0% 1,151,693 1,149,650
10% 10.0% 575,847 575,470
Active Idle   0 0
Graph of results
Host 'NODE07' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,733,713
Calibration 2     5,723,168
Calibration 3     5,736,183
ssj_ops@calibrated=5,729,676
100% 99.7% 5,729,676 5,710,983
90% 90.0% 5,156,708 5,158,397
80% 80.5% 4,583,741 4,614,475
70% 69.8% 4,010,773 4,001,210
60% 60.0% 3,437,806 3,437,496
50% 49.9% 2,864,838 2,860,912
40% 40.0% 2,291,870 2,292,170
30% 30.1% 1,718,903 1,722,844
20% 20.0% 1,145,935 1,148,008
10% 10.0% 572,968 571,170
Active Idle   0 0
Graph of results
Host 'NODE08' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,723,248
Calibration 2     5,730,867
Calibration 3     5,737,251
ssj_ops@calibrated=5,734,059
100% 99.8% 5,734,059 5,720,166
90% 89.9% 5,160,653 5,157,145
80% 80.1% 4,587,247 4,591,348
70% 69.9% 4,013,841 4,008,800
60% 60.0% 3,440,435 3,440,022
50% 50.0% 2,867,029 2,867,134
40% 40.0% 2,293,623 2,293,650
30% 30.0% 1,720,218 1,718,612
20% 20.1% 1,146,812 1,150,322
10% 10.0% 573,406 575,486
Active Idle   0 0
Graph of results
