Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module ssj_ops@100% = 23,096,507
ssj_ops@100% per Host = 11,548,253
ssj_ops@100% per JVM = 1,443,532
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 28, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,134,876
Calibration 2     23,126,036
Calibration 3     23,164,242
ssj_ops@calibrated=23,145,139
100% 99.8% 23,145,139 23,096,507
90% 90.0% 20,830,625 20,821,286
80% 80.0% 18,516,111 18,520,670
70% 70.0% 16,201,597 16,200,057
60% 60.0% 13,887,083 13,885,887
50% 50.0% 11,572,569 11,572,425
40% 40.0% 9,258,056 9,257,045
30% 30.0% 6,943,542 6,945,277
20% 20.0% 4,629,028 4,630,288
10% 10.0% 2,314,514 2,314,022
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
2 8 224 448 768 2 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HPE Synergy 12000 Frame
Form Factor: 10U
Power Supply Quantity and Rating (W): 2 x 2650
Power Supply Details: HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1
Network Switch Details: HP A5820X Series Switch JG219A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x HPE Synergy 10Gb Pass Thru Module (799330-B21), 1 x HPE Synergy Composer (804353-B21), 1 x HPE Synergy Frame Link Module (804942-B21)
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 2
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 660 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G Read Intensive M.2 (875490-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=30 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,6] /AFFINITY [0x0000000FC0FF, 0xFC0FF0000000]; start /NODE [1,3,5,7] /AFFINITY [0x0000000FF03F,0xFF03F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I43 v1.32 (02/01/2018)
Management Firmware Version: 1.15 August 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
Node05 11,585,227
Node06 11,511,280
ssj_ops@100% 23,096,507
ssj_ops@100% per Host 11,548,253
ssj_ops@100% per JVM 1,443,532
Graph of per-host results

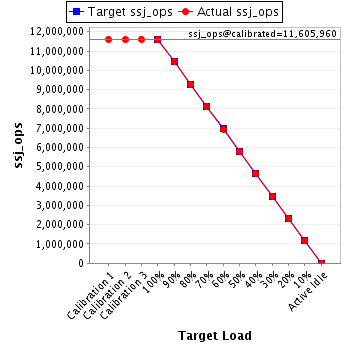

Host 'Node05' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,600,074
Calibration 2     11,595,575
Calibration 3     11,616,345
ssj_ops@calibrated=11,605,960
100% 99.8% 11,605,960 11,585,227
90% 90.0% 10,445,364 10,442,163
80% 80.0% 9,284,768 9,286,555
70% 69.9% 8,124,172 8,114,267
60% 60.0% 6,963,576 6,959,210
50% 50.0% 5,802,980 5,801,910
40% 40.0% 4,642,384 4,644,345
30% 30.0% 3,481,788 3,484,008
20% 20.0% 2,321,192 2,322,736
10% 10.0% 1,160,596 1,160,800
Active Idle   0 0
Graph of results
Host 'Node06' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,534,803
Calibration 2     11,530,461
Calibration 3     11,547,897
ssj_ops@calibrated=11,539,179
100% 99.8% 11,539,179 11,511,280
90% 89.9% 10,385,261 10,379,123
80% 80.0% 9,231,343 9,234,115
70% 70.1% 8,077,425 8,085,790
60% 60.0% 6,923,507 6,926,677
50% 50.0% 5,769,589 5,770,515
40% 40.0% 4,615,672 4,612,700
30% 30.0% 3,461,754 3,461,269
20% 20.0% 2,307,836 2,307,552
10% 10.0% 1,153,918 1,153,222
Active Idle   0 0
Graph of results
