Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module ssj_ops@100% = 57,344,378
ssj_ops@100% per Host = 11,468,876
ssj_ops@100% per JVM = 1,433,609
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 9, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     57,538,783
Calibration 2     57,461,684
Calibration 3     57,530,847
ssj_ops@calibrated=57,496,265
100% 99.7% 57,496,265 57,344,378
90% 90.0% 51,746,639 51,748,240
80% 80.0% 45,997,012 46,004,723
70% 70.0% 40,247,386 40,245,799
60% 60.0% 34,497,759 34,484,272
50% 50.0% 28,748,133 28,739,343
40% 40.0% 22,998,506 23,011,529
30% 30.0% 17,248,880 17,264,325
20% 20.0% 11,499,253 11,501,932
10% 10.0% 5,749,627 5,744,055
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
5 20 560 1,120 1,920 5 40
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HPE Synergy 12000 Frame
Form Factor: 10U
Power Supply Quantity and Rating (W): 4 x 2650
Power Supply Details: HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1 x HP A5820X Series Switch (JG219A)
Network Switch Details: 10 Gb Fibre 24 ports
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 5
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 660 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I43 v2.10 (01/18/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
NODE01 11,490,654
NODE02 11,465,014
NODE03 11,460,530
NODE04 11,472,740
NODE05 11,455,440
ssj_ops@100% 57,344,378
ssj_ops@100% per Host 11,468,876
ssj_ops@100% per JVM 1,433,609
Graph of per-host results
Host 'NODE01' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,519,232
Calibration 2     11,515,628
Calibration 3     11,521,845
ssj_ops@calibrated=11,518,736
100% 99.8% 11,518,736 11,490,654
90% 90.0% 10,366,863 10,364,625
80% 80.0% 9,214,989 9,219,368
70% 70.0% 8,063,115 8,066,462
60% 60.0% 6,911,242 6,914,262
50% 50.0% 5,759,368 5,758,362
40% 40.0% 4,607,494 4,612,852
30% 30.1% 3,455,621 3,472,733
20% 20.0% 2,303,747 2,300,749
10% 10.0% 1,151,874 1,148,781
Active Idle   0 0
Graph of results
Host 'NODE02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,504,734
Calibration 2     11,472,989
Calibration 3     11,497,527
ssj_ops@calibrated=11,485,258
100% 99.8% 11,485,258 11,465,014
90% 90.0% 10,336,732 10,332,974
80% 80.0% 9,188,206 9,185,026
70% 70.1% 8,039,681 8,049,680
60% 59.9% 6,891,155 6,885,236
50% 50.0% 5,742,629 5,740,572
40% 40.0% 4,594,103 4,595,502
30% 30.0% 3,445,577 3,446,770
20% 20.0% 2,297,052 2,296,875
10% 10.0% 1,148,526 1,146,591
Active Idle   0 0
Graph of results
Host 'NODE03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,504,797
Calibration 2     11,485,736
Calibration 3     11,503,258
ssj_ops@calibrated=11,494,497
100% 99.7% 11,494,497 11,460,530
90% 90.0% 10,345,047 10,343,952
80% 80.1% 9,195,598 9,207,594
70% 69.9% 8,046,148 8,038,684
60% 60.0% 6,896,698 6,901,485
50% 50.0% 5,747,249 5,745,455
40% 40.0% 4,597,799 4,603,028
30% 30.0% 3,448,349 3,449,127
20% 20.0% 2,298,899 2,304,323
10% 10.0% 1,149,450 1,150,674
Active Idle   0 0
Graph of results
Host 'NODE04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,518,337
Calibration 2     11,506,305
Calibration 3     11,514,556
ssj_ops@calibrated=11,510,431
100% 99.7% 11,510,431 11,472,740
90% 90.0% 10,359,388 10,360,188
80% 79.9% 9,208,344 9,196,217
70% 70.0% 8,057,301 8,054,359
60% 59.9% 6,906,258 6,892,343
50% 50.0% 5,755,215 5,751,320
40% 40.0% 4,604,172 4,600,104
30% 30.0% 3,453,129 3,449,770
20% 20.0% 2,302,086 2,305,435
10% 10.0% 1,151,043 1,147,585
Active Idle   0 0
Graph of results
Host 'NODE05' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,491,684
Calibration 2     11,481,027
Calibration 3     11,493,660
ssj_ops@calibrated=11,487,344
100% 99.7% 11,487,344 11,455,440
90% 90.1% 10,338,609 10,346,501
80% 80.1% 9,189,875 9,196,519
70% 70.0% 8,041,140 8,036,614
60% 60.0% 6,892,406 6,890,947
50% 50.0% 5,743,672 5,743,633
40% 40.0% 4,594,937 4,600,042
30% 30.0% 3,446,203 3,445,925
20% 20.0% 2,297,469 2,294,550
10% 10.0% 1,148,734 1,150,424
Active Idle   0 0

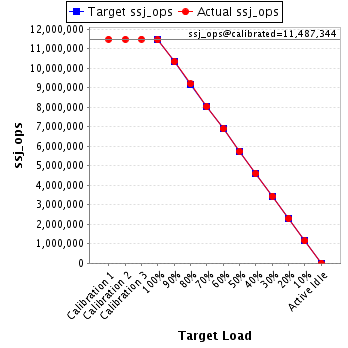

Graph of results
