Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 24,847,419
ssj_ops@100% per Host = 12,423,710
ssj_ops@100% per JVM = 97,060
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 22, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     25,014,119
Calibration 2     24,992,020
Calibration 3     24,947,242
ssj_ops@calibrated=24,969,631
100% 99.5% 24,969,631 24,847,419
90% 90.0% 22,472,668 22,463,630
80% 80.0% 19,975,705 19,964,759
70% 70.0% 17,478,742 17,480,194
60% 60.0% 14,981,779 14,979,452
50% 50.0% 12,484,816 12,480,670
40% 40.0% 9,987,853 9,987,905
30% 30.0% 7,490,889 7,496,920
20% 20.0% 4,993,926 4,997,347
10% 10.0% 2,496,963 2,501,650
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
2 4 256 512 512 2 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Apollo 2000 Gen10 Plus
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 3000
Power Supply Details: HPE 3000W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1
Network Switch Details: HP ProCurve 2910al Series Switch J9147A
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 2
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A46 v2.40 (01/21/2021)
Management Firmware Version: 2.40 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
SLES12SP5-Node02 12,446,099
SLES12SP5-Node04 12,401,320
ssj_ops@100% 24,847,419
ssj_ops@100% per Host 12,423,710
ssj_ops@100% per JVM 97,060

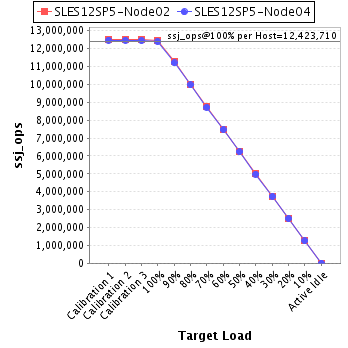

Graph of per-host results
Host 'SLES12SP5-Node02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,531,804
Calibration 2     12,521,505
Calibration 3     12,495,608
ssj_ops@calibrated=12,508,557
100% 99.5% 12,508,557 12,446,099
90% 90.0% 11,257,701 11,258,579
80% 79.9% 10,006,845 9,992,591
70% 70.0% 8,755,990 8,757,804
60% 60.0% 7,505,134 7,506,579
50% 50.0% 6,254,278 6,253,843
40% 40.0% 5,003,423 5,002,602
30% 30.0% 3,752,567 3,758,001
20% 20.0% 2,501,711 2,504,273
10% 10.0% 1,250,856 1,252,643
Active Idle   0 0

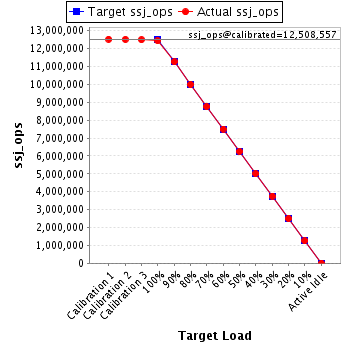

Graph of results
See the Host Performance Report for additional details.
Host 'SLES12SP5-Node04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,482,315
Calibration 2     12,470,515
Calibration 3     12,451,634
ssj_ops@calibrated=12,461,075
100% 99.5% 12,461,075 12,401,320
90% 89.9% 11,214,967 11,205,051
80% 80.0% 9,968,860 9,972,168
70% 70.0% 8,722,752 8,722,390
60% 60.0% 7,476,645 7,472,873
50% 50.0% 6,230,537 6,226,827
40% 40.0% 4,984,430 4,985,303
30% 30.0% 3,738,322 3,738,919
20% 20.0% 2,492,215 2,493,074
10% 10.0% 1,246,107 1,249,007
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
