SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3450 | SPECpower_ssj2008 = 854 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | RTP, NC, USA | Test Date: | Mar 7, 2008 |
| Hardware Availability: | May-2008 | Software Availability: | Jun-2008 | Publication: | Mar 26, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

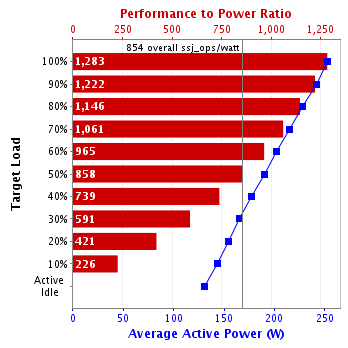

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.3% | 323,998 | 252 | 1,283 |
| 90% | 90.4% | 295,016 | 241 | 1,222 |
| 80% | 80.0% | 260,862 | 228 | 1,146 |
| 70% | 69.9% | 227,968 | 215 | 1,061 |
| 60% | 59.9% | 195,269 | 202 | 965 |
| 50% | 49.9% | 162,708 | 190 | 858 |
| 40% | 40.1% | 130,926 | 177 | 739 |
| 30% | 30.0% | 97,890 | 166 | 591 |
| 20% | 20.0% | 65,137 | 155 | 421 |
| 10% | 9.9% | 32,305 | 143 | 226 |
| Active Idle | 0 | 130 | 0 | |
| ∑ssj_ops / ∑power = | 854 | |||
| Set Identifier: | sut |
| Set Description: | IBM System x3450 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3450 |
| Form Factor: | -- |
| CPU Name: | Intel Xeon E5462 |
| CPU Characteristics: | Quad-core 2.8GHz, 1600 MHZ FSB |
| CPU Frequency (MHz): | 2800 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 |
| Primary Cache: | 32KB I + 32KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared/2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4x4096MB PC2-5300F |
| Memory Details: | DDR2-667 CL5 FBDIMM; slots 1, 5, 9, 13 populated |
| Power Supply Quantity and Rating (W): | 1 x 600 |
| Power Supply Details: | Delta TDPS-600CB C |
| Disk Drive: | 1 x 250 GB (SATA, 7.2k RPM, 3.5") |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Intel Gigabit NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | None |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (see SUT Notes) |
| Operating System (OS): | Windows Server 2003 R2 Enterprise x64 Edition SP1 |
| OS Version: | R2 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 2.4, JRE 1.6.0 Windows 64bit (pwa6460sr1-20080305_01) |
| JVM Command-line Options: | -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1000m -Xms1475m -Xmx1475m -XlockReservation -Xnoloa |
| JVM Affinity: | start /affinity [03,0C,30,C0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1475 |
| JVM Maximum Heap (MB): | 1475 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x346 |
| CPU Description: | Intel Xeon 3.0GHz |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2003 Enterprise Edition SP1 |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2003 x86-32 jvmwi3260-20071121_15015 (JIT enabled) |
| CCS Version: | 1.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB37404 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1646 |
| Date of Calibration: | 28-Nov-2007 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 252 | 21.2 |
| 90% | 241 | 21.2 |
| 80% | 228 | 21.2 |
| 70% | 215 | 21.2 |
| 60% | 202 | 21.2 |
| 50% | 190 | 21.2 |
| 40% | 177 | 21.2 |
| 30% | 166 | 21.2 |
| 20% | 155 | 21.2 |
| 10% | 143 | 21.2 |
| Active Idle | 130 | 21.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 21.2 | 132 |

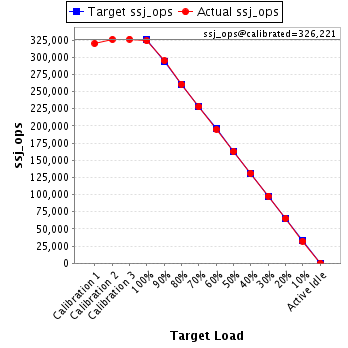

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 320,096 | ||
| Calibration 2 | 326,021 | ||
| Calibration 3 | 326,421 | ||
| ssj_ops@calibrated=326,221 | |||
| 100% | 99.3% | 326,221 | 323,998 |
| 90% | 90.4% | 293,599 | 295,016 |
| 80% | 80.0% | 260,977 | 260,862 |
| 70% | 69.9% | 228,355 | 227,968 |
| 60% | 59.9% | 195,733 | 195,269 |
| 50% | 49.9% | 163,110 | 162,708 |
| 40% | 40.1% | 130,488 | 130,926 |
| 30% | 30.0% | 97,866 | 97,890 |
| 20% | 20.0% | 65,244 | 65,137 |
| 10% | 9.9% | 32,622 | 32,305 |
| Active Idle | 0 | 0 | |
