SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/iR120a-1E | SPECpower_ssj2008 = 1,810 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Oct 28, 2009 |
| Hardware Availability: | Dec-2009 | Software Availability: | May-2009 | Publication: | Dec 30, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

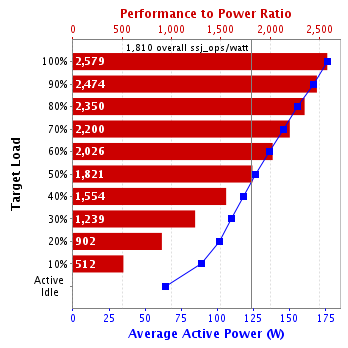

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.2% | 454,560 | 176 | 2,579 |
| 90% | 89.8% | 411,835 | 166 | 2,474 |
| 80% | 79.9% | 366,188 | 156 | 2,350 |
| 70% | 69.9% | 320,440 | 146 | 2,200 |
| 60% | 60.1% | 275,288 | 136 | 2,026 |
| 50% | 50.4% | 230,898 | 127 | 1,821 |
| 40% | 40.1% | 183,686 | 118 | 1,554 |
| 30% | 29.7% | 136,244 | 110 | 1,239 |
| 20% | 20.0% | 91,889 | 102 | 902 |
| 10% | 9.9% | 45,587 | 89.1 | 512 |
| Active Idle | 0 | 64.1 | 0 | |
| ∑ssj_ops / ∑power = | 1,810 | |||
| Set Identifier: | sut |
| Set Description: | Express5800/iR120a-1E (Intel Xeon L5520, 2.26 GHz) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | Express5800/iR120a-1E |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26 GHz, 8 MB L3 Cache |
| CPU Frequency (MHz): | 2267 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | 2GB 2Rx4 PC3-10600E ECC CL7; slots CPU1_DIMM1, CPU1_DIMM2, CPU2_DIMM1, and CPU2_DIMM2 populated |
| Power Supply Quantity and Rating (W): | 1 x 360 |
| Power Supply Details: | Delta TDPS-360AB E |
| Disk Drive: | 1 x 50GB SSD SATA, NEC P/N:N8150-702 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Integrated Intel 82567 Gigabit Ethernet Controller, 1 x Integrated Intel 82574L Gigabit Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power saver |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64) |
| JVM Command-line Options: | -Xms795m -Xmx795m -Xns720m -XXaggressive -Xlargepages:exitOnFailure=true -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | start /affinity [3,C,30,C0,300,C00,3000,C000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 795 |
| JVM Maximum Heap (MB): | 795 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.0.0007 |
| Management Firmware Version: | 01.05 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | Express5800/R120a-2 |
| CPU Description: | Intel Xeon X5550 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2003 R2 Standard Edition Service Pack 2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | BEA JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H928025 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | JQA |
| Accredited by: | JQA |
| Calibration Label: | 150-92562 |
| Date of Calibration: | 8-Sep-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.9-49c8760c |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 176 | 21.2 |
| 90% | 166 | 21.2 |
| 80% | 156 | 21.2 |
| 70% | 146 | 21.2 |
| 60% | 136 | 21.2 |
| 50% | 127 | 21.1 |
| 40% | 118 | 21.2 |
| 30% | 110 | 21.2 |
| 20% | 102 | 21.1 |
| 10% | 89.1 | 21.1 |
| Active Idle | 64.1 | 21.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 202V / 50 Hz / 1 phase / 2 wires | 21.1 | 52 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 446,803 | ||
| Calibration 2 | 457,880 | ||
| Calibration 3 | 458,967 | ||
| ssj_ops@calibrated=458,424 | |||
| 100% | 99.2% | 458,424 | 454,560 |
| 90% | 89.8% | 412,581 | 411,835 |
| 80% | 79.9% | 366,739 | 366,188 |
| 70% | 69.9% | 320,897 | 320,440 |
| 60% | 60.1% | 275,054 | 275,288 |
| 50% | 50.4% | 229,212 | 230,898 |
| 40% | 40.1% | 183,370 | 183,686 |
| 30% | 29.7% | 137,527 | 136,244 |
| 20% | 20.0% | 91,685 | 91,889 |
| 10% | 9.9% | 45,842 | 45,587 |
| Active Idle | 0 | 0 | |
