Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) SPECpower_ssj2008 = 2,320 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.3% 19,935,560 6,303 3,163
90% 90.0% 18,067,787 5,910 3,057
80% 80.0% 16,058,381 5,449 2,947
70% 70.0% 14,050,984 5,033 2,792
60% 60.0% 12,042,621 4,650 2,590
50% 50.0% 10,034,224 4,321 2,322
40% 40.0% 8,023,246 4,015 1,998
30% 30.0% 6,021,596 3,721 1,618
20% 20.0% 4,011,503 3,386 1,185
10% 10.0% 2,006,467 2,901 692
Active Idle 0 1,842 0
∑ssj_ops / ∑power = 2,320
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
38 76 304 608 304 38 152
System Under Test
Shared Hardware
Shared Hardware
Enclosure: PRIMERGY CX1000 S1
Form Factor: 43U
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Network Switch: Brocade FastIron FCX648F
Network Switch Details: 48-port 1GbE LAN Switch
KVM Switch: None
KVM Switch Details: None
Other Hardware: Shared enclosure is a 38U Rack with a 5U cooling unit on top.
Comment: The network switch is a standalone device and is not included in the measured power.
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware per Node
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX120 S2
CPU Description: Intel Core 2 Quad Q9100
Memory amount (GB): 16
Software
Operating System (OS): Windows Server 2008 Enterprise x64 Edition + SP2
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11770806
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 09075306
Date of Calibration: 06-Jul-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: PSU of SUT 1-19
Power Analyzer pwr2
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 12370811
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 09116246
Date of Calibration: 20-Nov-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: PSU of SUT 20-38
Power Analyzer pwr3
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11210208
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 10026886
Date of Calibration: 23-Feb-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: FAN unit and RMU (Rack Monitoring Unit)
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUTs main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 6,303 22.6
90% 5,910 22.7
80% 5,449 22.7
70% 5,033 22.8
60% 4,650 22.7
50% 4,321 22.7
40% 4,015 22.8
30% 3,721 22.8
20% 3,386 22.7
10% 2,901 22.6
Active Idle 1,842 22.6
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 22.6 117
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,078,120
Calibration 2     20,110,012
Calibration 3     20,028,069
ssj_ops@calibrated=20,069,040
100% 99.3% 20,069,040 19,935,560
90% 90.0% 18,062,136 18,067,787
80% 80.0% 16,055,232 16,058,381
70% 70.0% 14,048,328 14,050,984
60% 60.0% 12,041,424 12,042,621
50% 50.0% 10,034,520 10,034,224
40% 40.0% 8,027,616 8,023,246
30% 30.0% 6,020,712 6,021,596
20% 20.0% 4,013,808 4,011,503
10% 10.0% 2,006,904 2,006,467
Active Idle   0 0

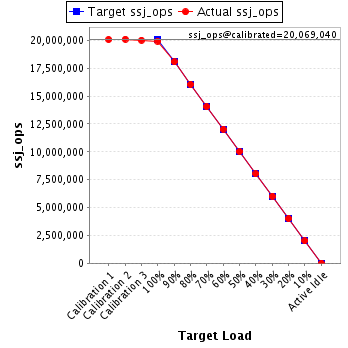

Graph of results
