SPECpower_ssj2008
Aggregate Performance Report
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AW2000ht-AW170ht F1 | ssj_ops@100% = 1,775,143 ssj_ops@100% per Host = 887,572 ssj_ops@100% per JVM = 147,929 |
||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
| Tested By: | Acer Incorporated | Test Location: | San Jose, CA, USA | Test Date: | Jul 26, 2010 |
| Hardware Availability: | Jul-2010 | Software Availability: | Sep-2009 | Publication: | Aug 25, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

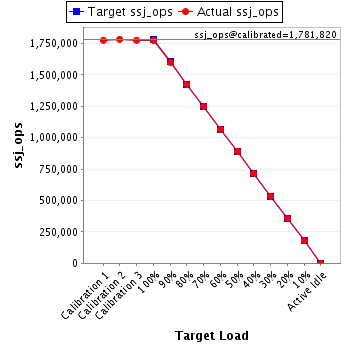

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,778,588 | ||
| Calibration 2 | 1,785,286 | ||
| Calibration 3 | 1,778,355 | ||
| ssj_ops@calibrated=1,781,820 | |||
| 100% | 99.6% | 1,781,820 | 1,775,143 |
| 90% | 89.9% | 1,603,638 | 1,601,337 |
| 80% | 80.0% | 1,425,456 | 1,424,765 |
| 70% | 70.0% | 1,247,274 | 1,246,601 |
| 60% | 60.0% | 1,069,092 | 1,068,959 |
| 50% | 50.1% | 890,910 | 892,902 |
| 40% | 40.0% | 712,728 | 712,888 |
| 30% | 30.0% | 534,546 | 535,135 |
| 20% | 20.0% | 356,364 | 356,216 |
| 10% | 10.0% | 178,182 | 178,011 |
| Active Idle | 0 | 0 | |
| # of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
|---|---|---|---|---|---|---|
| 2 | 4 | 24 | 48 | 24.0 | 2 | 12 |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 2 |
| Comment: | None |
| Hardware per Node | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AW2000ht-AW170ht F1 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Six-Core, 2.93GHz, 12MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12.0 |
| # and size of DIMM: | 6 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3L-10600R; slots 1A, 2A, and 3A are populated on each processor |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC |
| Disk Controller: | Intel ICH10R SATA 3.0Gbps Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82574L Gigabit Ethernet |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | NVIDIA Tesla C2050 GPU Card |
| Software per Node | |
|---|---|
| Power Management: | Power save enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | D03 07/22/2010 |
| Management Firmware Version: | 0.01 06/04/2010 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Host | ssj_ops@100% |
|---|---|
| AW2000ht-GPU-1st-Node | 887,144 |
| AW2000ht-GPU-2nd-Node | 887,999 |
| ssj_ops@100% | 1,775,143 |
| ssj_ops@100% per Host | 887,572 |
| ssj_ops@100% per JVM | 147,929 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 890,267 | ||
| Calibration 2 | 892,234 | ||
| Calibration 3 | 888,632 | ||
| ssj_ops@calibrated=890,433 | |||
| 100% | 99.6% | 890,433 | 887,144 |
| 90% | 89.6% | 801,390 | 798,203 |
| 80% | 79.9% | 712,347 | 711,159 |
| 70% | 69.9% | 623,303 | 622,628 |
| 60% | 60.3% | 534,260 | 536,548 |
| 50% | 50.2% | 445,217 | 446,825 |
| 40% | 39.9% | 356,173 | 355,290 |
| 30% | 30.1% | 267,130 | 268,160 |
| 20% | 19.9% | 178,087 | 177,485 |
| 10% | 10.0% | 89,043 | 88,648 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 888,321 | ||
| Calibration 2 | 893,052 | ||
| Calibration 3 | 889,723 | ||
| ssj_ops@calibrated=891,387 | |||
| 100% | 99.6% | 891,387 | 887,999 |
| 90% | 90.1% | 802,248 | 803,134 |
| 80% | 80.1% | 713,110 | 713,607 |
| 70% | 70.0% | 623,971 | 623,972 |
| 60% | 59.7% | 534,832 | 532,411 |
| 50% | 50.0% | 445,694 | 446,077 |
| 40% | 40.1% | 356,555 | 357,598 |
| 30% | 30.0% | 267,416 | 266,975 |
| 20% | 20.1% | 178,277 | 178,731 |
| 10% | 10.0% | 89,139 | 89,362 |
| Active Idle | 0 | 0 | |
