SPECpower_ssj2008
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/SS10 (DK1) | SPECpower_ssj2008 = 1,701 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Jan 27, 2011 |
| Hardware Availability: | Dec-2010 | Software Availability: | Jun-2010 | Publication: | Feb 23, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

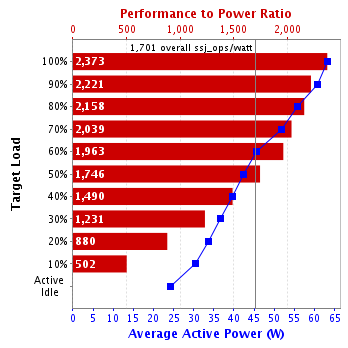

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.8% | 149,942 | 63.2 | 2,373 |
| 90% | 89.9% | 135,062 | 60.8 | 2,221 |
| 80% | 80.0% | 120,278 | 55.7 | 2,158 |
| 70% | 70.3% | 105,649 | 51.8 | 2,039 |
| 60% | 59.5% | 89,441 | 45.6 | 1,963 |
| 50% | 49.3% | 74,153 | 42.5 | 1,746 |
| 40% | 39.3% | 59,020 | 39.6 | 1,490 |
| 30% | 30.0% | 45,119 | 36.6 | 1,231 |
| 20% | 19.7% | 29,662 | 33.7 | 880 |
| 10% | 10.2% | 15,254 | 30.4 | 502 |
| Active Idle | 0 | 24.3 | 0 | |
| ∑ssj_ops / ∑power = | 1,701 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/SS10 (DK1) |
| Form Factor: | Tower |
| CPU Name: | Intel Core i3-540 |
| CPU Characteristics: | Dual Core, 3.06GHz, 4MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 2 cores, 1 chip, 2 cores/chip |
| Hardware Threads: | 4 (2 / core) |
| CPU(s) Orderable: | 1 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3-10600E ECC CL9; slots DIMM_#1 and DIMM_#2 populated |
| Power Supply Quantity and Rating (W): | 1 x 250 |
| Power Supply Details: | Lead Year TFX-2582 |
| Disk Drive: | 1 x 250GB SATA (Hitachi P/N:GQ-UH72504S) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82574L Gigabit Network Connection |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Power saver) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Standard |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049(JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1875m -Xmx1875m -Xmn1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [3,C] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.0.4109 |
| Management Firmware Version: | None |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM WebSphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Hitachi, Ltd. |
| Model: | HA8000/RS110(AH) |
| CPU Description: | Intel Pentium E5200 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise 32-bit SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_17-b04) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | B102481 |
| Date of Calibration: | 07-Jul-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 63.2 | 23.5 |
| 90% | 60.8 | 23.5 |
| 80% | 55.7 | 23.6 |
| 70% | 51.8 | 23.6 |
| 60% | 45.6 | 23.6 |
| 50% | 42.5 | 23.6 |
| 40% | 39.6 | 23.6 |
| 30% | 36.6 | 23.5 |
| 20% | 33.7 | 23.5 |
| 10% | 30.4 | 23.4 |
| Active Idle | 24.3 | 23.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 100V / 50 Hz / 1 phase / 2 wires | 23.4 | 105 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 148,769 | ||
| Calibration 2 | 150,025 | ||
| Calibration 3 | 150,506 | ||
| ssj_ops@calibrated=150,266 | |||
| 100% | 99.8% | 150,266 | 149,942 |
| 90% | 89.9% | 135,239 | 135,062 |
| 80% | 80.0% | 120,213 | 120,278 |
| 70% | 70.3% | 105,186 | 105,649 |
| 60% | 59.5% | 90,159 | 89,441 |
| 50% | 49.3% | 75,133 | 74,153 |
| 40% | 39.3% | 60,106 | 59,020 |
| 30% | 30.0% | 45,080 | 45,119 |
| 20% | 19.7% | 30,053 | 29,662 |
| 10% | 10.2% | 15,027 | 15,254 |
| Active Idle | 0 | 0 | |
