SPECpower_ssj2008
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd XH620 | SPECpower_ssj2008 = 3,041 overall ssj_ops/watt | ||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Feb 11, 2011 |
| Hardware Availability: | Dec-2010 | Software Availability: | Dec-2010 | Publication: | Mar 9, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

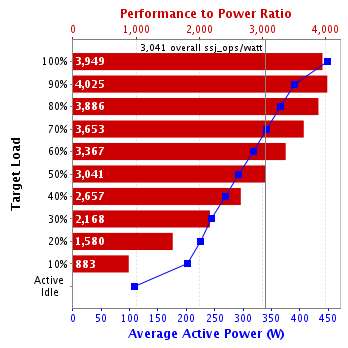

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 1,771,743 | 449 | 3,949 |
| 90% | 88.5% | 1,576,346 | 392 | 4,025 |
| 80% | 79.9% | 1,422,207 | 366 | 3,886 |
| 70% | 70.1% | 1,247,795 | 342 | 3,653 |
| 60% | 60.1% | 1,070,758 | 318 | 3,367 |
| 50% | 50.0% | 890,121 | 293 | 3,041 |
| 40% | 40.1% | 714,400 | 269 | 2,657 |
| 30% | 29.8% | 531,471 | 245 | 2,168 |
| 20% | 20.0% | 356,738 | 226 | 1,580 |
| 10% | 10.0% | 178,486 | 202 | 883 |
| Active Idle | 0 | 109 | 0 | |
| ∑ssj_ops / ∑power = | 3,041 | |||
| # of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
|---|---|---|---|---|---|---|
| 2 | 4 | 24 | 48 | 24.0 | 2 | 12 |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 2 |
| Comment: | None |
| Hardware per Node | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | XH620 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Six-Core, 2.93GHz, 12MB L3 Cache |
| CPU Frequency (MHz): | 2930 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2 GB |
| Memory Details: | 2GB 2Rx8 PC3L-10600E ECC |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 160GB SSD 2.5" SATA |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port BCM 5709 Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software per Node | |
|---|---|
| Power Management: | Power Saver enabled in OS |
| Operating System (OS): | Windows Server 2008 R2, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | SAV18 |
| Management Firmware Version: | V018 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM Websphere application server V7.0 for Windows on X86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | Tecal RH2280 Rack Server |
| CPU Description: | Intel Xeon E5642 2.8 GHz |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2003 SP2 |
| JVM Vendor: | Oracle |
| JVM Version: | jrockit-R27.6.0-jre1.6.0_05-ia32 |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91F522082 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | 16-0466 |
| Date of Calibration: | 28-Apr-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | none |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 449 | 23.0 |
| 90% | 392 | 22.6 |
| 80% | 366 | 22.6 |
| 70% | 342 | 22.5 |
| 60% | 318 | 23.3 |
| 50% | 293 | 24.1 |
| 40% | 269 | 24.5 |
| 30% | 245 | 24.8 |
| 20% | 226 | 25.2 |
| 10% | 202 | 25.2 |
| Active Idle | 109 | 24.9 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 50 Hz / 1 phase / 2 wires | 22.5 | 101 |

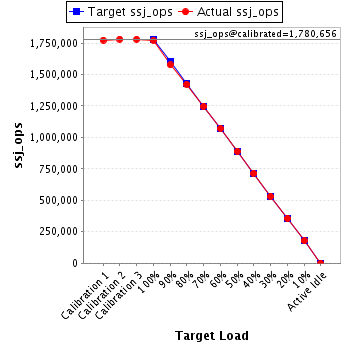

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,773,796 | ||
| Calibration 2 | 1,780,582 | ||
| Calibration 3 | 1,780,729 | ||
| ssj_ops@calibrated=1,780,656 | |||
| 100% | 99.5% | 1,780,656 | 1,771,743 |
| 90% | 88.5% | 1,602,590 | 1,576,346 |
| 80% | 79.9% | 1,424,525 | 1,422,207 |
| 70% | 70.1% | 1,246,459 | 1,247,795 |
| 60% | 60.1% | 1,068,394 | 1,070,758 |
| 50% | 50.0% | 890,328 | 890,121 |
| 40% | 40.1% | 712,262 | 714,400 |
| 30% | 29.8% | 534,197 | 531,471 |
| 20% | 20.0% | 356,131 | 356,738 |
| 10% | 10.0% | 178,066 | 178,486 |
| Active Idle | 0 | 0 | |
