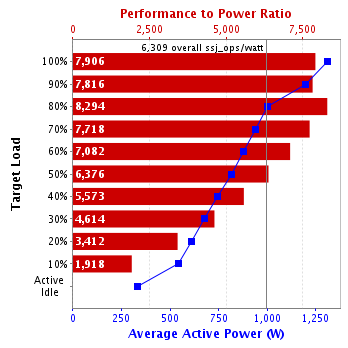

Huawei Technologies Co., Ltd Tecal CH121 | SPECpower_ssj2008 = 6,309 overall ssj_ops/watt | ||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Sep 2, 2013 |
Hardware Availability: | Sep-2013 | Software Availability: | Jan-2012 | Publication: | Oct 21, 2013 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.7% | 10,356,616 | 1,310 | 7,906 |
90% | 90.0% | 9,345,881 | 1,196 | 7,816 |
80% | 80.1% | 8,322,508 | 1,003 | 8,294 |
70% | 70.0% | 7,271,769 | 942 | 7,718 |
60% | 60.0% | 6,236,226 | 881 | 7,082 |
50% | 50.0% | 5,198,122 | 815 | 6,376 |
40% | 40.1% | 4,161,590 | 747 | 5,573 |
30% | 30.0% | 3,122,067 | 677 | 4,614 |
20% | 20.0% | 2,076,683 | 609 | 3,412 |
10% | 10.0% | 1,041,275 | 543 | 1,918 |
Active Idle | 0 | 334 | 0 | |
∑ssj_ops / ∑power = | 6,309 |
# of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
---|---|---|---|---|---|---|
6 | 12 | 120 | 240 | 144 | 6 | 60 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 6 |
Comment: | None |
Hardware per Node | |
---|---|
Hardware Vendor: | Huawei Technologies Co., Ltd |
Model: | Tecal CH121 |
Form Factor: | Blade |
CPU Name: | Intel Xeon E5-2660 v2 |
CPU Characteristics: | 10-Core, 2.2GHz, 25MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz) |
CPU Frequency (MHz): | 2200 |
CPU(s) Enabled: | 20 cores, 2 chips, 10 cores/chip |
Hardware Threads: | 40 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 25 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 24 |
# and size of DIMM: | 6 x 4 GB |
Memory Details: | 4GB 2Rx8 PC3L-10600R ECC RDIMM,Slots 1A1 1B1, 1C1,2A1,2B1,2C1 populated |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | 1 x 240GB SSD 2.5" SATA Huawei P/N 02310MMT |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82580 Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software per Node | |
---|---|
Power Management: | Power Saver Mode enabled in OS |
Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
OS Version: | R2 SP1 (64-bit) |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
JVM Affinity: | start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000] |
JVM Instances: | 10 |
JVM Initial Heap (MB): | 1875 |
JVM Maximum Heap (MB): | 1875 |
JVM Address Bits: | 64 |
Boot Firmware Version: | V063 |
Management Firmware Version: | 3.35 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | IBM SDK Java Technology Edition Version 7.0 for windows x64 |
Hardware | |
---|---|
Hardware Vendor: | Huawei Technologies Co., Ltd |
Model: | Tecal RH2280 Rack Server |
CPU Description: | Intel Xeon 5205 |
Memory amount (GB): | 6 |
Software | |
---|---|
Operating System (OS): | Microsoft Windows Server 2003 SP2 |
JVM Vendor: | Oracle |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30 |
CCS Version: | 1.2.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
Model: | WT210 |
Serial Number: | 91K630156 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
Accredited by: | Calibration and Testing Center of CEPREI |
Calibration Label: | 2GB13002877-0009 |
Date of Calibration: | 25-Apr-2013 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.6.0-7f9b1b00-20130314 |
Setup Description: | none |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Temperature@lert |
Model: | TM-STD30 |
Driver Version: | 3.1.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm. |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 1,310 | 21.4 |
90% | 1,196 | 21.3 |
80% | 1,003 | 21.3 |
70% | 942 | 21.3 |
60% | 881 | 21.2 |
50% | 815 | 21.1 |
40% | 747 | 20.8 |
30% | 677 | 20.7 |
20% | 609 | 20.6 |
10% | 543 | 20.5 |
Active Idle | 334 | 20.4 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
220V / 50 Hz / 1 phase / 2 wires | 20.4 | 101 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 10,187,839 | ||
Calibration 2 | 10,387,553 | ||
Calibration 3 | 10,391,841 | ||
ssj_ops@calibrated=10,389,697 | |||
100% | 99.7% | 10,389,697 | 10,356,616 |
90% | 90.0% | 9,350,727 | 9,345,881 |
80% | 80.1% | 8,311,758 | 8,322,508 |
70% | 70.0% | 7,272,788 | 7,271,769 |
60% | 60.0% | 6,233,818 | 6,236,226 |
50% | 50.0% | 5,194,849 | 5,198,122 |
40% | 40.1% | 4,155,879 | 4,161,590 |
30% | 30.0% | 3,116,909 | 3,122,067 |
20% | 20.0% | 2,077,939 | 2,076,683 |
10% | 10.0% | 1,038,970 | 1,041,275 |
Active Idle | 0 | 0 |
