SPECpower_ssj2008
Aggregate Performance Report
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd Tecal CH121 | ssj_ops@100% = 10,356,616 ssj_ops@100% per Host = 1,726,103 ssj_ops@100% per JVM = 172,610 |
||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Multi Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Sep 2, 2013 |
| Hardware Availability: | Sep-2013 | Software Availability: | Jan-2012 | Publication: | Oct 21, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 10,187,839 | ||
| Calibration 2 | 10,387,553 | ||
| Calibration 3 | 10,391,841 | ||
| ssj_ops@calibrated=10,389,697 | |||
| 100% | 99.7% | 10,389,697 | 10,356,616 |
| 90% | 90.0% | 9,350,727 | 9,345,881 |
| 80% | 80.1% | 8,311,758 | 8,322,508 |
| 70% | 70.0% | 7,272,788 | 7,271,769 |
| 60% | 60.0% | 6,233,818 | 6,236,226 |
| 50% | 50.0% | 5,194,849 | 5,198,122 |
| 40% | 40.1% | 4,155,879 | 4,161,590 |
| 30% | 30.0% | 3,116,909 | 3,122,067 |
| 20% | 20.0% | 2,077,939 | 2,076,683 |
| 10% | 10.0% | 1,038,970 | 1,041,275 |
| Active Idle | 0 | 0 | |
| # of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
|---|---|---|---|---|---|---|
| 6 | 12 | 120 | 240 | 144 | 6 | 60 |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 6 |
| Comment: | None |
| Hardware per Node | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | Tecal CH121 |
| Form Factor: | Blade |
| CPU Name: | Intel Xeon E5-2660 v2 |
| CPU Characteristics: | 10-Core, 2.2GHz, 25MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz) |
| CPU Frequency (MHz): | 2200 |
| CPU(s) Enabled: | 20 cores, 2 chips, 10 cores/chip |
| Hardware Threads: | 40 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 25 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4 GB |
| Memory Details: | 4GB 2Rx8 PC3L-10600R ECC RDIMM,Slots 1A1 1B1, 1C1,2A1,2B1,2C1 populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 240GB SSD 2.5" SATA Huawei P/N 02310MMT |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82580 Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software per Node | |
|---|---|
| Power Management: | Power Saver Mode enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
| OS Version: | R2 SP1 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000] |
| JVM Instances: | 10 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | V063 |
| Management Firmware Version: | 3.35 |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for windows x64 |

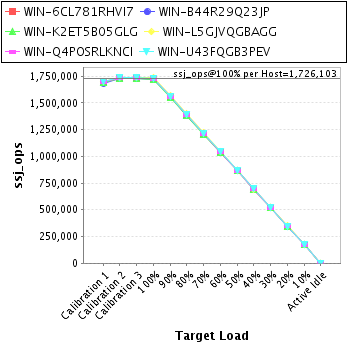

| Host | ssj_ops@100% |
|---|---|
| WIN-6CL781RHVI7 | 1,725,424 |
| WIN-B44R29Q23JP | 1,720,699 |
| WIN-K2ET5B05GLG | 1,719,334 |
| WIN-L5GJVQGBAGG | 1,735,664 |
| WIN-Q4POSRLKNCI | 1,724,837 |
| WIN-U43FQGB3PEV | 1,730,658 |
| ssj_ops@100% | 10,356,616 |
| ssj_ops@100% per Host | 1,726,103 |
| ssj_ops@100% per JVM | 172,610 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,700,848 | ||
| Calibration 2 | 1,732,425 | ||
| Calibration 3 | 1,736,104 | ||
| ssj_ops@calibrated=1,734,265 | |||
| 100% | 99.5% | 1,734,265 | 1,725,424 |
| 90% | 89.9% | 1,560,838 | 1,559,772 |
| 80% | 79.8% | 1,387,412 | 1,383,633 |
| 70% | 70.0% | 1,213,985 | 1,213,706 |
| 60% | 59.9% | 1,040,559 | 1,039,628 |
| 50% | 49.9% | 867,132 | 866,243 |
| 40% | 40.2% | 693,706 | 696,442 |
| 30% | 30.2% | 520,279 | 522,940 |
| 20% | 20.0% | 346,853 | 347,010 |
| 10% | 10.0% | 173,426 | 174,086 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,686,021 | ||
| Calibration 2 | 1,726,067 | ||
| Calibration 3 | 1,726,970 | ||
| ssj_ops@calibrated=1,726,519 | |||
| 100% | 99.7% | 1,726,519 | 1,720,699 |
| 90% | 90.1% | 1,553,867 | 1,555,482 |
| 80% | 80.1% | 1,381,215 | 1,383,794 |
| 70% | 70.2% | 1,208,563 | 1,212,674 |
| 60% | 60.2% | 1,035,911 | 1,039,308 |
| 50% | 50.1% | 863,259 | 864,506 |
| 40% | 39.9% | 690,608 | 688,114 |
| 30% | 30.0% | 517,956 | 517,645 |
| 20% | 19.9% | 345,304 | 344,002 |
| 10% | 10.0% | 172,652 | 172,966 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,694,480 | ||
| Calibration 2 | 1,724,290 | ||
| Calibration 3 | 1,723,520 | ||
| ssj_ops@calibrated=1,723,905 | |||
| 100% | 99.7% | 1,723,905 | 1,719,334 |
| 90% | 89.8% | 1,551,514 | 1,548,298 |
| 80% | 80.0% | 1,379,124 | 1,378,857 |
| 70% | 69.8% | 1,206,733 | 1,203,910 |
| 60% | 59.9% | 1,034,343 | 1,033,347 |
| 50% | 50.2% | 861,952 | 864,553 |
| 40% | 40.2% | 689,562 | 693,182 |
| 30% | 30.0% | 517,171 | 517,719 |
| 20% | 20.0% | 344,781 | 344,992 |
| 10% | 10.0% | 172,390 | 172,099 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,703,540 | ||
| Calibration 2 | 1,739,121 | ||
| Calibration 3 | 1,740,349 | ||
| ssj_ops@calibrated=1,739,735 | |||
| 100% | 99.8% | 1,739,735 | 1,735,664 |
| 90% | 89.9% | 1,565,762 | 1,564,478 |
| 80% | 80.3% | 1,391,788 | 1,397,215 |
| 70% | 70.1% | 1,217,815 | 1,218,712 |
| 60% | 60.0% | 1,043,841 | 1,043,247 |
| 50% | 50.1% | 869,868 | 871,955 |
| 40% | 39.9% | 695,894 | 694,550 |
| 30% | 30.1% | 521,921 | 523,103 |
| 20% | 20.0% | 347,947 | 348,812 |
| 10% | 10.1% | 173,974 | 175,830 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,699,936 | ||
| Calibration 2 | 1,731,219 | ||
| Calibration 3 | 1,728,440 | ||
| ssj_ops@calibrated=1,729,830 | |||
| 100% | 99.7% | 1,729,830 | 1,724,837 |
| 90% | 90.0% | 1,556,847 | 1,556,138 |
| 80% | 80.3% | 1,383,864 | 1,389,230 |
| 70% | 70.0% | 1,210,881 | 1,210,636 |
| 60% | 60.0% | 1,037,898 | 1,037,845 |
| 50% | 50.0% | 864,915 | 864,249 |
| 40% | 40.1% | 691,932 | 694,032 |
| 30% | 30.0% | 518,949 | 519,504 |
| 20% | 20.0% | 345,966 | 346,288 |
| 10% | 10.1% | 172,983 | 174,072 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,703,015 | ||
| Calibration 2 | 1,734,431 | ||
| Calibration 3 | 1,736,456 | ||
| ssj_ops@calibrated=1,735,444 | |||
| 100% | 99.7% | 1,735,444 | 1,730,658 |
| 90% | 90.0% | 1,561,899 | 1,561,713 |
| 80% | 80.1% | 1,388,355 | 1,389,780 |
| 70% | 69.8% | 1,214,811 | 1,212,132 |
| 60% | 60.1% | 1,041,266 | 1,042,852 |
| 50% | 49.9% | 867,722 | 866,616 |
| 40% | 40.1% | 694,177 | 695,269 |
| 30% | 30.0% | 520,633 | 521,155 |
| 20% | 19.9% | 347,089 | 345,579 |
| 10% | 9.9% | 173,544 | 172,223 |
| Active Idle | 0 | 0 | |
