SPECpower_ssj2008
Copyright © 2007-2015 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY TX1320 M1 | SPECpower_ssj2008 = 7,535 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Dec 9, 2014 |
| Hardware Availability: | Mar-2015 | Software Availability: | Jun-2013 | Publication: | Feb 5, 2015 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

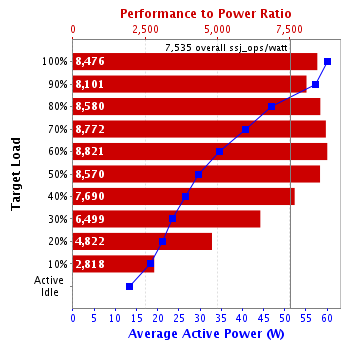

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.1% | 508,794 | 60.0 | 8,476 |
| 90% | 91.4% | 464,610 | 57.4 | 8,101 |
| 80% | 78.9% | 401,218 | 46.8 | 8,580 |
| 70% | 70.3% | 357,316 | 40.7 | 8,772 |
| 60% | 60.2% | 305,878 | 34.7 | 8,821 |
| 50% | 50.0% | 253,982 | 29.6 | 8,570 |
| 40% | 40.1% | 203,829 | 26.5 | 7,690 |
| 30% | 29.9% | 152,176 | 23.4 | 6,499 |
| 20% | 20.0% | 101,674 | 21.1 | 4,822 |
| 10% | 10.1% | 51,444 | 18.3 | 2,818 |
| Active Idle | 0 | 13.3 | 0 | |
| ∑ssj_ops / ∑power = | 7,535 | |||
| Set Identifier: | TX1320 M1 |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Single Node |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | FUJITSU Server PRIMERGY TX1320 M1 |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon E3-1275Lv3 |
| CPU Characteristics: | 4-Core, 2.70GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.90 GHz) |
| CPU Frequency (MHz): | 2700 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 8 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 2 x 8192 MB |
| Memory Details: | 8 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B populated |
| Power Supply Quantity and Rating (W): | 1 x 250 |
| Power Supply Details: | Fujitsu Technology Solutions S26113-E565-V70-01 |
| Disk Drive: | 1 x SSD SATA 6G 64GB DOM N H-P, S26361-F5533-E64 |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel I210 and 1 x Intel I217LM Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Fujitsu Enhanced Power Settings" power plan) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| OS Version: | Version 6.1.7601 Service Pack 1 Build 7601 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu |
| JVM Affinity: | start /AFFINITY [0x3,0xC,0x30,0xC0] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | R2.10.0 |
| Management Firmware Version: | 7.69F |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM WebSphere Application Server V8.5.0.0 |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX200 S6 |
| CPU Description: | Intel Xeon X5680 |
| Memory amount (GB): | 48 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.25-b02, mixed mode) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11210802 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Metrology Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Atlas Copco Tools Central Europe GmbH |
| Calibration Label: | W14113561 |
| Date of Calibration: | 21-Nov-2014 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.7.0-538b1562-20140802 |
| Setup Description: | Connected to PSU |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 60.0 | 20.3 |
| 90% | 57.4 | 20.3 |
| 80% | 46.8 | 20.3 |
| 70% | 40.7 | 20.3 |
| 60% | 34.7 | 20.3 |
| 50% | 29.6 | 20.3 |
| 40% | 26.5 | 20.3 |
| 30% | 23.4 | 20.3 |
| 20% | 21.1 | 20.4 |
| 10% | 18.3 | 20.3 |
| Active Idle | 13.3 | 20.3 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 20.3 | 117 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 490,880 | ||
| Calibration 2 | 507,877 | ||
| Calibration 3 | 508,841 | ||
| ssj_ops@calibrated=508,359 | |||
| 100% | 100.1% | 508,359 | 508,794 |
| 90% | 91.4% | 457,523 | 464,610 |
| 80% | 78.9% | 406,687 | 401,218 |
| 70% | 70.3% | 355,851 | 357,316 |
| 60% | 60.2% | 305,015 | 305,878 |
| 50% | 50.0% | 254,180 | 253,982 |
| 40% | 40.1% | 203,344 | 203,829 |
| 30% | 29.9% | 152,508 | 152,176 |
| 20% | 20.0% | 101,672 | 101,674 |
| 10% | 10.1% | 50,836 | 51,444 |
| Active Idle | 0 | 0 | |
