Huawei Technologies Co., Ltd FusionServer CH121 V3 ssj_ops@100% = 24,662,648
ssj_ops@100% per Host = 3,082,831
ssj_ops@100% per JVM = 192,677
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 18, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Dec 21, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     24,976,211
Calibration 2     24,685,145
Calibration 3     24,729,871
ssj_ops@calibrated=24,707,508
100% 99.8% 24,707,508 24,662,648
90% 90.1% 22,236,757 22,252,836
80% 80.0% 19,766,006 19,758,684
70% 70.0% 17,295,256 17,284,975
60% 60.0% 14,824,505 14,824,481
50% 50.0% 12,353,754 12,350,615
40% 40.0% 9,883,003 9,877,126
30% 30.0% 7,412,252 7,410,001
20% 20.0% 4,941,502 4,949,964
10% 10.0% 2,470,751 2,475,968
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
8 16 256 512 4,096 8 128
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Huawei FusionServer E9000
Form Factor: 12U
Power Supply Quantity and Rating (W): 6 x 3000
Power Supply Details: Huawei P/N 02310LKL
Network Switch: Huawei Quidway S5348TP-SI
Network Switch Details: 48-PORT Quidway S5348TP-SI
KVM Switch: None
KVM Switch Details: None
Other Hardware: <ul><li>2 x CX310 10 GE switch module Huawei P/N 03054849.</li><li>2 x MM910 shelf management module Huawei P/N 03054675.</li><li>14 x hot-swappable fan module Huawei P/N 03030QEJ.</li><li>
Comment: None
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware per Node
Hardware Vendor: Huawei Technologies Co., Ltd
Model: FusionServer CH121 V3
Form Factor: 12U
CPU Name: Intel Xeon E5-2683 V4
CPU Characteristics: 16-Core, 2.1GHz, 40MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2100
CPU(s) Enabled: 32 cores, 2 chips, 16 cores/chip
Hardware Threads: 64 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 40 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 32GB 2Rx4 PC4-2400T ECC RDIMM;slots DIMM000, DIMM001, DIMM010, DIMM011, DIMM020, DIMM021, DIMM030, DIMM030, DIMM100, DIMM101, DIMM110, DIMM111, DIMM120, DIMM121, DIMM130, and DIMM131 populated
Power Supply Quantity and Rating (W): 6 x 3000
Power Supply Details: Shared
Disk Drive: 2 x 300GB HDD 2.5" SAS Huawei P/N 02311EXX
Disk Controller: LSI 3008
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port 10Gigabit Ethernet controller CNA Mezzanine Card Huawei P/N 03022ATY
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1400m -Xms1575m -Xmx1575m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000,F0000000000,F00000000000,F000000000000,F0000000000000,F00000000000000,F000000000000000]
JVM Instances: 16
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.26
Management Firmware Version: 2.08
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
WIN-55BH8MNMDU7 3,105,974
WIN-5C8S426S2RU 3,080,748
WIN-6BC44BKC4CK 3,086,981
WIN-GJIUEU859PS 3,096,337
WIN-K9FDIH0FKUS 3,061,362
WIN-LPJCV7B9839 3,076,195
WIN-R596DNGV8HH 3,067,608
WIN-UDBKKJI1UBH 3,087,444
ssj_ops@100% 24,662,648
ssj_ops@100% per Host 3,082,831
ssj_ops@100% per JVM 192,677

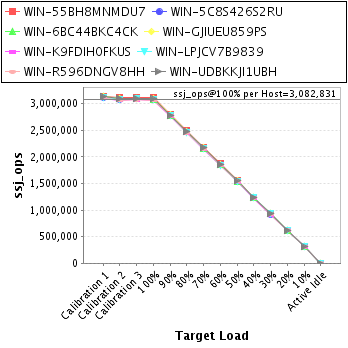

Graph of per-host results
Host 'WIN-55BH8MNMDU7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,139,656
Calibration 2     3,106,595
Calibration 3     3,111,266
ssj_ops@calibrated=3,108,931
100% 99.9% 3,108,931 3,105,974
90% 90.2% 2,798,038 2,804,970
80% 80.0% 2,487,144 2,487,935
70% 70.0% 2,176,251 2,175,271
60% 60.1% 1,865,358 1,869,850
50% 49.9% 1,554,465 1,552,292
40% 39.9% 1,243,572 1,241,512
30% 30.0% 932,679 931,686
20% 20.0% 621,786 621,052
10% 10.0% 310,893 312,425
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-5C8S426S2RU' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,114,385
Calibration 2     3,087,044
Calibration 3     3,090,708
ssj_ops@calibrated=3,088,876
100% 99.7% 3,088,876 3,080,748
90% 90.0% 2,779,988 2,779,455
80% 79.9% 2,471,101 2,468,720
70% 69.9% 2,162,213 2,159,671
60% 60.2% 1,853,325 1,858,151
50% 49.9% 1,544,438 1,541,445
40% 40.0% 1,235,550 1,236,801
30% 29.9% 926,663 922,509
20% 20.0% 617,775 618,806
10% 10.1% 308,888 310,795
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-6BC44BKC4CK' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,133,471
Calibration 2     3,088,400
Calibration 3     3,096,275
ssj_ops@calibrated=3,092,338
100% 99.8% 3,092,338 3,086,981
90% 90.0% 2,783,104 2,782,365
80% 80.0% 2,473,870 2,474,558
70% 70.0% 2,164,636 2,164,103
60% 60.0% 1,855,403 1,856,337
50% 49.9% 1,546,169 1,544,564
40% 39.9% 1,236,935 1,234,796
30% 30.0% 927,701 928,720
20% 19.9% 618,468 616,834
10% 10.0% 309,234 309,138
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-GJIUEU859PS' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,128,274
Calibration 2     3,100,104
Calibration 3     3,101,022
ssj_ops@calibrated=3,100,563
100% 99.9% 3,100,563 3,096,337
90% 90.0% 2,790,507 2,791,847
80% 80.0% 2,480,450 2,481,970
70% 70.0% 2,170,394 2,170,124
60% 59.8% 1,860,338 1,855,079
50% 50.0% 1,550,281 1,549,694
40% 40.0% 1,240,225 1,240,024
30% 30.0% 930,169 931,334
20% 20.0% 620,113 620,786
10% 10.0% 310,056 309,399
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-K9FDIH0FKUS' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,098,766
Calibration 2     3,064,641
Calibration 3     3,068,580
ssj_ops@calibrated=3,066,610
100% 99.8% 3,066,610 3,061,362
90% 90.1% 2,759,949 2,762,095
80% 80.0% 2,453,288 2,453,756
70% 69.9% 2,146,627 2,143,010
60% 59.9% 1,839,966 1,837,767
50% 50.0% 1,533,305 1,534,258
40% 39.9% 1,226,644 1,223,794
30% 29.9% 919,983 916,032
20% 20.1% 613,322 616,297
10% 10.0% 306,661 307,694
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-LPJCV7B9839' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,123,595
Calibration 2     3,077,286
Calibration 3     3,088,327
ssj_ops@calibrated=3,082,807
100% 99.8% 3,082,807 3,076,195
90% 90.0% 2,774,526 2,776,041
80% 79.8% 2,466,245 2,459,337
70% 69.9% 2,157,965 2,154,630
60% 59.9% 1,849,684 1,845,913
50% 50.1% 1,541,403 1,544,710
40% 40.0% 1,233,123 1,233,423
30% 30.1% 924,842 927,801
20% 20.1% 616,561 618,177
10% 10.0% 308,281 309,471
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-R596DNGV8HH' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,109,660
Calibration 2     3,067,614
Calibration 3     3,076,530
ssj_ops@calibrated=3,072,072
100% 99.9% 3,072,072 3,067,608
90% 90.2% 2,764,865 2,772,009
80% 79.9% 2,457,658 2,453,952
70% 69.9% 2,150,450 2,148,063
60% 60.0% 1,843,243 1,842,511
50% 50.0% 1,536,036 1,537,114
40% 40.1% 1,228,829 1,230,915
30% 30.0% 921,622 921,230
20% 20.1% 614,414 616,487
10% 10.0% 307,207 306,278
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WIN-UDBKKJI1UBH' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,128,404
Calibration 2     3,093,461
Calibration 3     3,097,163
ssj_ops@calibrated=3,095,312
100% 99.7% 3,095,312 3,087,444
90% 89.9% 2,785,781 2,784,053
80% 80.1% 2,476,250 2,478,456
70% 70.1% 2,166,718 2,170,104
60% 60.1% 1,857,187 1,858,874
50% 50.0% 1,547,656 1,546,538
40% 39.9% 1,238,125 1,235,861
30% 30.1% 928,594 930,689
20% 20.1% 619,062 621,523
10% 10.0% 309,531 310,768
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
