Sugon Sugon I620-G30(Intel Xeon Platinum 8180 @2.50GHz) SPECpower_ssj2008 = 11,573 overall ssj_ops/watt
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, Beijing, CHN Test Date: Jun 30, 2017
Hardware Availability: Jan-2015 Software Availability: Jan-2015 Publication: Jul 26, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.4% 5,348,398 419 12,754
90% 90.0% 4,889,720 375 13,049
80% 79.9% 4,343,528 328 13,247
70% 70.0% 3,803,107 286 13,281
60% 60.0% 3,259,128 248 13,158
50% 50.1% 2,720,491 216 12,572
40% 40.1% 2,177,831 192 11,344
30% 30.0% 1,629,759 170 9,603
20% 20.0% 1,087,821 148 7,332
10% 10.0% 545,079 126 4,338
Active Idle 0 67.2 0
∑ssj_ops / ∑power = 11,573

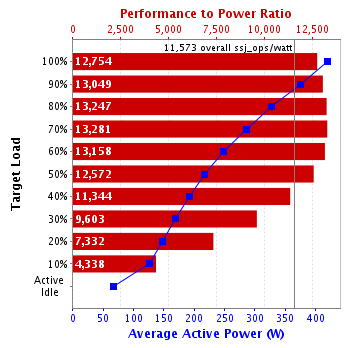

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Sugon
Model: Sugon I620-G30(Intel Xeon Platinum 8180 @2.50GHz)
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 @2.50 GHz
CPU Characteristics: 28-Core, 2.50GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V; slots A0, B0, C0, D0, E0 and F0 for CPU0 and CPU1 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: Sugon 800W PSU(SN:33000132)
Disk Drive: 1 x Intel 530 Series 80GB M.2 SATA SSD (SSDSCKGW080A4)
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode, build 1.7.0_80-b15)
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /node [0,2] /affinity [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000]; start /node [1,3] /affinity [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: V0.11
Management Firmware Version: V0.59
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
none
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Sugon
Model: Sugon I620-G20
CPU Description: Intel Xeon E5-2680v4
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 R2 Standard
JVM Vendor: Oracle
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode, build 1.7.0_80-b15)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Chroma, Inc.
Model: Chroma 66202 + GPIB
Serial Number: 662022006060
Connectivity: USB2GPIB
Input Connection: Default
Metrology Institute: NIST
Accredited by: Internel Calibration Laboratory
Calibration Label: 98-35618
Date of Calibration: 31-May-2017
PTDaemon Host System: Lenovo E130
PTDaemon Host OS: Windows 10 Professional
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Attached to SUT Power Supplier I
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.24.0
Connectivity: USB2Serial
PTDaemon Host System: Lenovo E130
PTDaemon Host OS: Windows 10 Professional
Setup Description: 15mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 419 27.4
90% 375 27.4
80% 328 27.4
70% 286 27.3
60% 248 27.2
50% 216 27.2
40% 192 27.2
30% 170 27.2
20% 148 27.2
10% 126 27.2
Active Idle 67.2 27.1
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 27.1 50
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,539,027
Calibration 2     5,494,601
Calibration 3     5,375,357
ssj_ops@calibrated=5,434,979
100% 98.4% 5,434,979 5,348,398
90% 90.0% 4,891,481 4,889,720
80% 79.9% 4,347,983 4,343,528
70% 70.0% 3,804,485 3,803,107
60% 60.0% 3,260,987 3,259,128
50% 50.1% 2,717,489 2,720,491
40% 40.1% 2,173,992 2,177,831
30% 30.0% 1,630,494 1,629,759
20% 20.0% 1,086,996 1,087,821
10% 10.0% 543,498 545,079
Active Idle   0 0

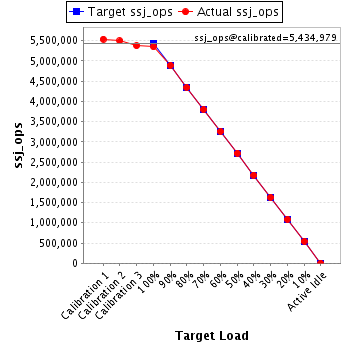

Graph of results
