Hewlett Packard Enterprise ProLiant DL360 Gen10 SPECpower_ssj2008 = 12,313 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jun 28, 2017
Hardware Availability: Sep-2017 Software Availability: Jan-2015 Publication: Jul 19, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 5,779,630 451 12,825
90% 89.9% 5,214,638 407 12,817
80% 79.8% 4,629,746 341 13,592
70% 70.0% 4,061,208 289 14,057
60% 60.1% 3,483,129 246 14,152
50% 50.0% 2,901,407 211 13,755
40% 40.0% 2,321,436 183 12,665
30% 30.0% 1,737,318 160 10,862
20% 20.0% 1,162,148 138 8,432
10% 10.0% 581,133 114 5,077
Active Idle 0 48.7 0
∑ssj_ops / ∑power = 12,313

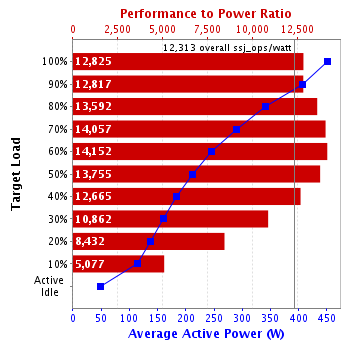

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 12 x 8182 MB
Memory Details: 12 x 8GB 2Rx8 PC4-2666V-R; slots 1, 3, 5, 8, 10, and 12 populated in each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DPS-800AB (865438-B21) 96%
Disk Drive: 1 x HPE 340GB SATA RI UFF M.2 Kit (815606-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn17000m -Xms19000m -Xmx19000m -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=24 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:+UseStringCache
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 19000
JVM Maximum Heap (MB): 19000
JVM Address Bits: 64
Boot Firmware Version: U32 v1.00 (05/22/2017)
Management Firmware Version: 1.10 pass 67 May 05 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

System Options

Memory Options

Power and Performance Options

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Microsoft Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_74-b02 (build 25.74-b02, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2SF14002V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Yokogawa
Calibration Label: 07282016-C2SF14002V
Date of Calibration: 28-Jul-2016
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 451 21.4
90% 407 21.4
80% 341 21.4
70% 289 21.5
60% 246 21.5
50% 211 21.4
40% 183 21.3
30% 160 21.3
20% 138 21.4
10% 114 21.4
Active Idle 48.7 21.3
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.3 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,805,185
Calibration 2     5,798,570
Calibration 3     5,800,370
ssj_ops@calibrated=5,799,470
100% 99.7% 5,799,470 5,779,630
90% 89.9% 5,219,523 5,214,638
80% 79.8% 4,639,576 4,629,746
70% 70.0% 4,059,629 4,061,208
60% 60.1% 3,479,682 3,483,129
50% 50.0% 2,899,735 2,901,407
40% 40.0% 2,319,788 2,321,436
30% 30.0% 1,739,841 1,737,318
20% 20.0% 1,159,894 1,162,148
10% 10.0% 579,947 581,133
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
