Hewlett Packard Enterprise ProLiant DL560 Gen10 SPECpower_ssj2008 = 11,662 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jun 30, 2017
Hardware Availability: Sep-2017 Software Availability: Jan-2015 Publication: Jul 19, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 11,281,436 936 12,058
90% 90.0% 10,197,349 847 12,044
80% 79.9% 9,055,320 706 12,818
70% 70.0% 7,927,236 592 13,381
60% 60.0% 6,802,146 510 13,336
50% 50.1% 5,672,296 438 12,958
40% 40.0% 4,530,013 378 11,983
30% 30.0% 3,401,736 329 10,334
20% 20.0% 2,261,713 281 8,037
10% 10.0% 1,131,413 232 4,871
Active Idle 0 88.9 0
∑ssj_ops / ∑power = 11,662

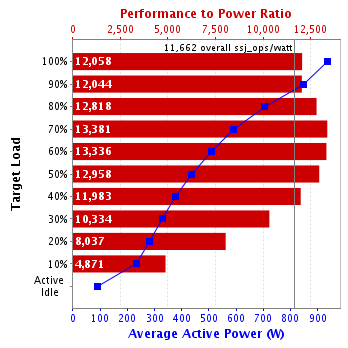

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL560 Gen10
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB 2Rx8 PC4-2666V-R: slots 1, 3, 5, 8, 10, 12 populated on each socket
Power Supply Quantity and Rating (W): 2 x 800
Power Supply Details: HPE DPS-800AB-35 A 96% (865438-B21)
Disk Drive: 1 x 120GB SSD M.2 (777259-002)
Disk Controller: HP Dual M.2 SATA SSD Enablement Option DL/ML PCI-E Slot 1
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331FLR Adapter
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -Xmx22g -Xms22g -Xmn20g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=24 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [FFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 22000
JVM Maximum Heap (MB): 22000
JVM Address Bits: 64
Boot Firmware Version: U34 v1.00 06/08/2017
Management Firmware Version: 1.10 pass 67 May 05 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings

System Options

Memory Options

Network Boot Options

Power and Performance Options

Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G7
CPU Description: Intel Xeon X5570
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2012 SP2 - V6.2 9200
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_05-b13 (build 25.5-b02, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-D0562-180-1
Date of Calibration: 18-Apr-2017
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 936 23.9
90% 847 24.4
80% 706 24.6
70% 592 24.8
60% 510 24.6
50% 438 24.6
40% 378 24.9
30% 329 25.2
20% 281 25.3
10% 232 25.5
Active Idle 88.9 25.6
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 23.9 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,343,127
Calibration 2     11,316,404
Calibration 3     11,348,898
ssj_ops@calibrated=11,332,651
100% 99.5% 11,332,651 11,281,436
90% 90.0% 10,199,386 10,197,349
80% 79.9% 9,066,121 9,055,320
70% 70.0% 7,932,856 7,927,236
60% 60.0% 6,799,591 6,802,146
50% 50.1% 5,666,326 5,672,296
40% 40.0% 4,533,060 4,530,013
30% 30.0% 3,399,795 3,401,736
20% 20.0% 2,266,530 2,261,713
10% 10.0% 1,133,265 1,131,413
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
