SPECpower_ssj2008

Hewlett Packard Enterprise ProLiant DL560 Gen10			SPECpower_ssj2008 = 12,120 overall ssj_ops/watt
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Oct 10, 2017
Hardware Availability:	Oct-2017	Software Availability:	Apr-2015	Publication:	Oct 25, 2017
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL560 Gen10
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	24 x 8192 MB
Memory Details:	24 x 8 GB 2Rx8 PC4-2666V-R: slots 1, 3, 5, 8, 10, 12 populated in each socket
Power Supply Quantity and Rating (W):	2 x 800
Power Supply Details:	HPE DPS-800AB-35 A 96% (865438-B21)
Disk Drive:	1 x HPE 240GB SATA 6G M.2 2280 SSD (875488-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Ethernet 1Gb 2-port 332T Adapter (615732-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [FFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	U34 v1.22 09/29/2017
Management Firmware Version:	1.15 Aug 03 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

See SUT Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark started via PSExec
SPECpower_ssj.props input.load_level.number_warehouses set to 224 to detect the full number of available processors on the SUT
Windows Power Options = Balanced

Power Analyzer pwr1
Hardware Vendor:	Yokogawa
Model:	WT210
Serial Number:	91GB45372
Connectivity:	GPIB vi NI GPIB-USB-HS
Input Connection:	Default
Metrology Institute:	NIST
Accredited by:	TRANSCAT
Calibration Label:	5-D0562-180-1
Date of Calibration:	18-Apr-2017
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to SUT Power Supply 1 and 2

None

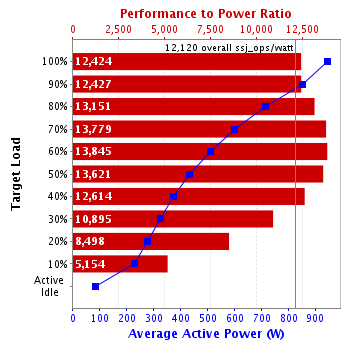

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	944	24.2
90%	851	24.1
80%	716	23.6
70%	598	23.4
60%	510	23.3
50%	431	23.3
40%	373	23.4
30%	324	23.4
20%	277	23.4
10%	228	23.2
Active Idle	82.9	23.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
210V / 60 Hz / 1 phase / 2 wires	23.2	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
