Hewlett Packard Enterprise ProLiant DL380 Gen10 SPECpower_ssj2008 = 11,540 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 28, 2018
Hardware Availability: Jun-2018 Software Availability: Jul-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 5,758,036 461 12,491
90% 89.9% 5,187,730 419 12,390
80% 80.1% 4,624,500 366 12,642
70% 70.0% 4,039,806 308 13,103
60% 59.9% 3,459,701 271 12,767
50% 50.0% 2,885,565 237 12,200
40% 40.0% 2,307,605 203 11,364
30% 30.0% 1,730,201 173 10,026
20% 20.0% 1,154,607 145 7,986
10% 10.0% 575,883 118 4,872
Active Idle 0 49.3 0
∑ssj_ops / ∑power = 11,540

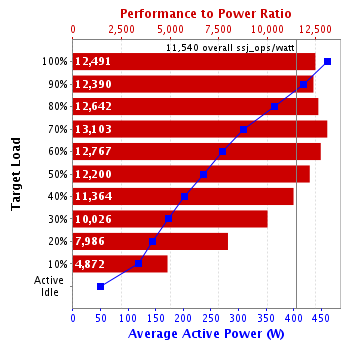

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL380 Gen10
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 12 x 8182 MB
Memory Details: 12 x 8GB 2Rx8 PC4-2666V-RE1-12; slots 1, 3, 5, 8, 10, and 12 populated in each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply 96% (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: none
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP3
OS Version: Kernel 4.4.120-94.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -Djava.awt.headless=true -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U32 v1.42 (06/20/2018)
Management Firmware Version: 1.30 pass 01 Dec 14 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version:2018.06.0 (26 Jun 2018), HPE Microprocessor Vulnerability ROM Updates (spp_supplement-2018.06.0.2) Version:2018.06.0(9 Jul 2018); ucode-intel-20180312-13.17.1
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Controller System
Hardware
Hardware Vendor: HPE
Model: ProLiant DL360 Gen9
CPU Description: 2 x Intel Xeon E5-2660 v3
Memory amount (GB): 128
Software
Operating System (OS): Windows Server 2012 R2
JVM Vendor: Oracle Corporation
JVM Version: 1.8.0_144-b01 (build 25.144-b01, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91K308556
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-40-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 461 26.4
90% 419 26.2
80% 366 26.1
70% 308 26.2
60% 271 26.1
50% 237 25.9
40% 203 25.9
30% 173 25.8
20% 145 25.8
10% 118 25.9
Active Idle 49.3 26.1
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 25.8 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,772,538
Calibration 2     5,774,772
Calibration 3     5,771,764
ssj_ops@calibrated=5,773,268
100% 99.7% 5,773,268 5,758,036
90% 89.9% 5,195,941 5,187,730
80% 80.1% 4,618,614 4,624,500
70% 70.0% 4,041,288 4,039,806
60% 59.9% 3,463,961 3,459,701
50% 50.0% 2,886,634 2,885,565
40% 40.0% 2,309,307 2,307,605
30% 30.0% 1,731,980 1,730,201
20% 20.0% 1,154,654 1,154,607
10% 10.0% 577,327 575,883
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
