SPECpower_ssj2008

Nokia Corporation AE-SER1U-A			SPECpower_ssj2008 = 6,183 overall ssj_ops/watt
Test Sponsor:	Nokia Corporation	SPEC License #:	6037	Test Method:	Multi Node
Tested By:	Nokia Corporation	Test Location:	HangZhou, Zhejiang, China	Test Date:	Dec 23, 2019
Hardware Availability:	Dec-2019	Software Availability:	Dec-2019	Publication:	Feb 14, 2020
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
5	5	100	200	320	5	100

Shared Hardware
Enclosure:	Nokia AirFrame Open Edge
Form Factor:	3U
Power Supply Quantity and Rating (W):	1 x 2000
Power Supply Details:	AE-PSUAC-A, AF 2kW AC PSU for OE chassis (F to R)
Network Switch:	AE-Z9100ON-A+G85
Network Switch Details:	AirFrame OE Switch Z9100ON 32xPlug 100Gb
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	None
Comment:	Network switch did not measure for Power

Hardware per Node
Hardware Vendor:	Nokia Corporation
Model:	AE-SER1U-A
Form Factor:	3U
CPU Name:	Intel(R) Xeon(R) Gold 6210U CPU @ 2.50GHz
CPU Characteristics:	20 Core, 2.5GHz, 27.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	20 cores, 1 chip, 20 cores/chip
Hardware Threads:	40 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	28160 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	64
# and size of DIMM:	4 x 16 GB
Memory Details:	4 x 16 GB 2Rx4 PC4-2933Y-RB2-12-DC1; slots 0,1,4 and 5 populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x M.2 SSD 480G, Intel S4510 P/N: SSDSCKJB480G7
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Corporation I210 Gigabit Network Connection(onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	CentOS Linux release 8.0.1905 (Core)
OS Version:	Kernel 4.18.0-80.el8.x86_64
Filesystem:	EXT4
JVM Vendor:	Oracle Corporation
JVM Version:	OpenJDK 64-Bit Server VM (build 25.181-b13, mixed mode),1.8.0_181
JVM Command-line Options:	-Djava.awt.headless=true -server -Xms1300m -Xmx1300m -Xmn1100m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	None
JVM Instances:	20
JVM Initial Heap (MB):	1300
JVM Maximum Heap (MB):	1300
JVM Address Bits:	64
Boot Firmware Version:	3B17(Oct-2019)
Management Firmware Version:	3.42.00(Nov-2019)
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

See SUT Notes

Benchmark started via ssh.
N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	CentOS Linux release 7.5.1804
JVM Vendor:	Oracle Corporation
JVM Version:	OpenJDK 64-Bit Server VM (build 25.201-b09, mixed mode),version 1.8.0_201
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters & Instruments Corporation
Model:	Yokogawa WT310E
Serial Number:	C3TJ0016E
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	Communication Technology Lab of The First Research Institute of Telecommunications Technology Co. Ltd
Accredited by:	Shanghai Telecommunication Metrology Station Co. Ltd
Calibration Label:	01-19-T4479
Date of Calibration:	5-Sep-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.1-3caa3cc4-20190717
Setup Description:	Connected to power supply

Temperature Sensor temp1
Hardware Vendor:	RDing Technology Limited Company
Model:	USB9097+DS18B20
Driver Version:	Virtual Serial Port drivers
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

None

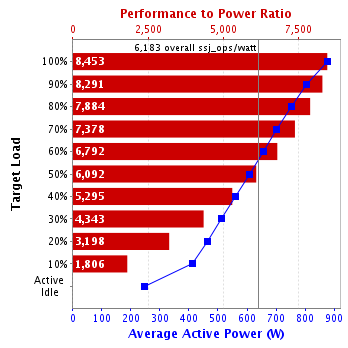

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	877	23.2
90%	804	23.1
80%	752	23.2
70%	703	23.4
60%	655	23.6
50%	608	23.5
40%	560	23.5
30%	512	23.5
20%	463	23.3
10%	411	23.1
Active Idle	247	23.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	23.1	14

See the Power/Temperature Details Report for additional details.

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
